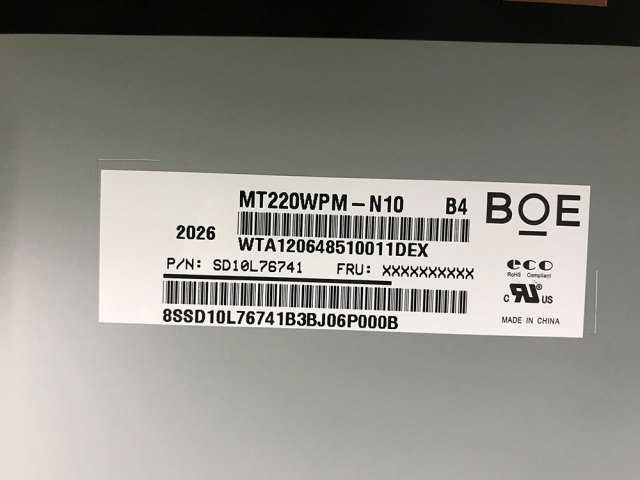

Name: MT220WPM-N10 BOE 22 inch lcd display module
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: MT220WPM-N10
Availability: InStock
Rating: 5 (1 reviews)

Item No.: MT220WPM-N10

MT220WPM-N10 is a 22.0 inch lcd screen with WSXGA resolutions (1680*1050). And this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

INQUIRY PDF Format

Description

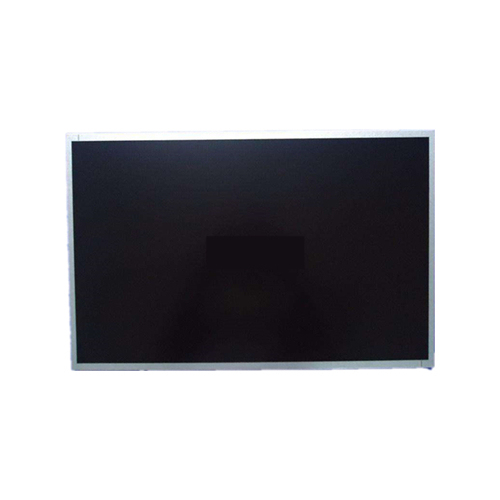

MT220WPM-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This module has a 22.0 inch diagonally measured active area with WSXGA resolutions (1680 horizontal by 1050 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 1 pixel / clock
High-speed response
Low power consumption
6-bit (Hi-FRC) color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS
ES 6.0 compliant
Gamma correction

Industrial Application

Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

General Specification

Manufacturer:    BOE
Model Name:    MT220WPM-N10
Screen Size:    22.0 inch
Screen Type:    LCM ,   a-Si TFT-LCD
Pixel Number:    1680(RGB)×1050   (WSXGA+)  90PPI
Arrangement:    RGB Vertical Stripe
Active Area(mm):    473.76 × 296.1 (H×V)
Outline(mm):    493.7 × 320.1 × 10.7 (H×V×D)
Bezel Area(mm):    477.7 × 300.1 (H×V)
Treatment:    Antiglare (Haze 25%), Hard coating (3H)
Luminance:    250 cd/m² (Typ.)
Contrast Ratio:    1000 : 1 (Typ.) (TM)
Viewing Angle:    85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Response:    1.5/3.5 (Typ.)(Tr/Td) ms
Good View at:    6 o'clock
Work Mode:    TN, Normally White, Transmissive
Color Depth:    16.7M   72% NTSC
Backlight:    3 strings WLED , 40K hours , No Driver
Mass:    1.83Kgs (Typ.)
Used for:    Desktop Monitor
Refresh Rate:    60Hz
Touchscreen:    Without
Signal Type:    LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply:    5.0V (Typ.)
Max. Ratings:    Storage Temp.: -25 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
