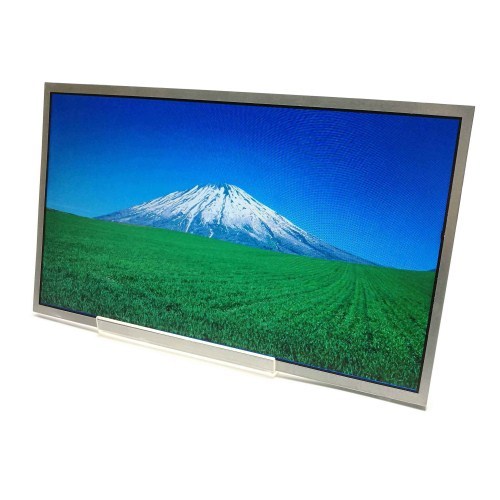

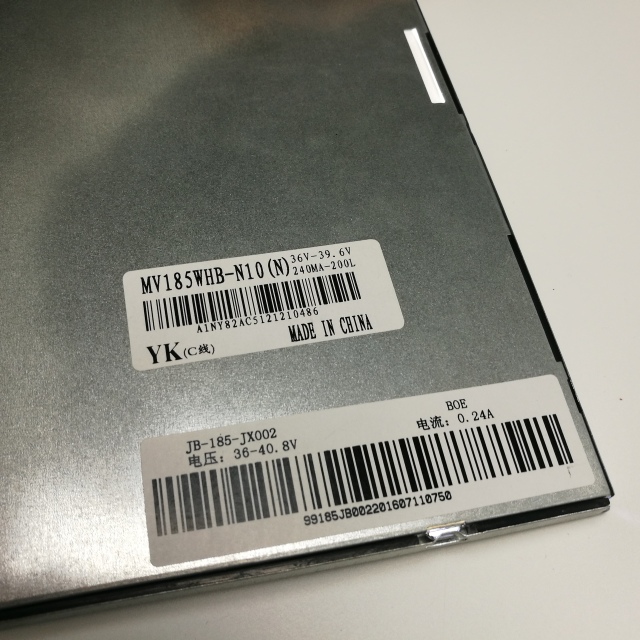

MV185WHB-N10 BOE 18.5 inch lcd display

Item No.: MV185WHB-N10
MV185WHB-N10 18.5 inch tft-lcd Slim-Size Display full view angle for Stand-alone Monitor Support hd video/picture/music play.
Description Review
Description

MV185WHB-N10 18.5 inch tft-lcd Slim-Size Display full view angle for Stand-alone Monitor Support hd video/picture/music play.


MV185WHB-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 1pixel / clock

High-speed response

6-bit(Hi-FRC) color depth, display 16. 7Mcolors

High luminance and contrast ratio, low reflection and normalviewing angle

DE (Data Enable) only

RoHS

Gamma Correction

ForwardType



Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller



General Specification

Panel Brand    BOE

Panel Model    MV185WHB-N10

Panel Size    18.5 inch

Panel Type    a-Si TFT-LCD, CELL

Resolution    1366(RGB)×768 , WXGA

Pixel Format    RGB Vertical Stripe

Display Area    409.8(W)×230.4(H) mm

Bezel Opening    -

Outline Size    422.2(W)×244.1(H) ×1.32(D) mm

Surface    Antiglare (Haze 25%), Hard coating (3H)

Brightness    250 cd/m²

Contrast Ratio    1000:1 (Typ.) (TM)

Viewing Angle    89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode    ADS, Normally Black, Transmissive

Best View on    Symmetry

Response Time    14 (Typ.)(G to G)

Glass Depth    0.50+0.50 mm

Display Colors    16.7M

Frequency    60Hz

Touch Screen    Without

Panel Weight    295.6g (Typ.)

Application    Desktop Monitor

Signal Interface    LVDS (1 ch, 8-bit) , 30 pins , Connector

Input Voltage    5.0V (Typ.)

Environment    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
