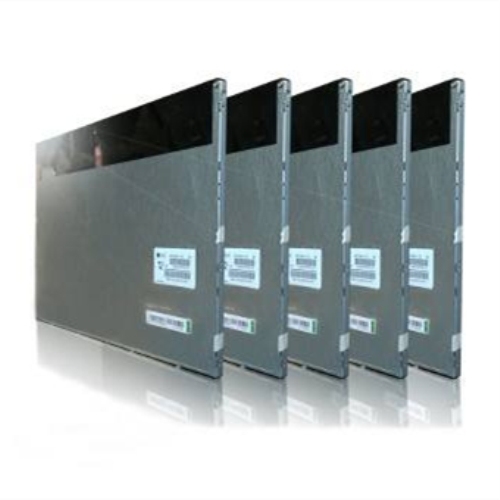

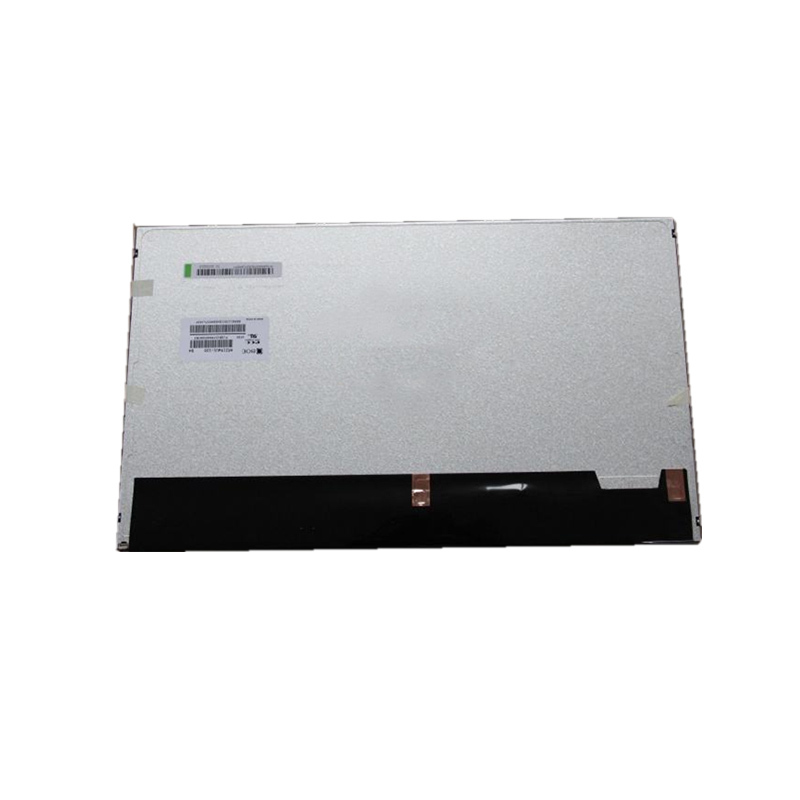

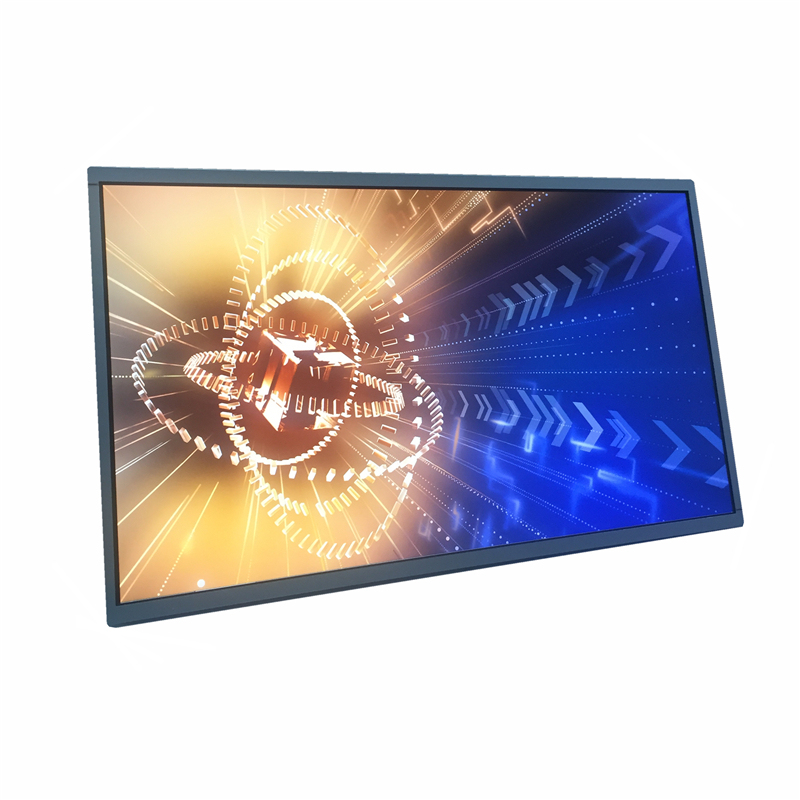

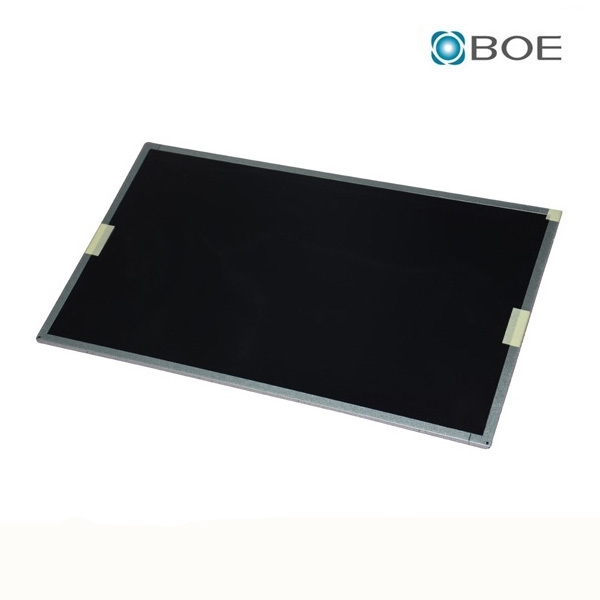

HR215WU1-120 BOE 21.5 inch lcd display

Item No.: HR215WU1-120
HR215WU1-120 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080. The TFT-LCD panel used for this module is adapte
Description Review
Description

High Quality 21.5 inch lcd hr215wu1-120 BOE IPS 21.5 inch tft lcd module with full view angle

HR215WU1-120 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 2 pixel / clock

High-speed response

6-bit (Hi-FRC) color depth, display 16. 7M colors

Incorporated edge type back-light (One Light Bar)

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only

RoHS /TCO 6.0 ,ES6.0 Compliant



Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller



General Specification

Panel Brand:     BOE

Panel Model:     HR215WU1-120

Panel Size:     21.5 inch

Panel Type:     a-Si TFT-LCD, LCM

Resolution:     1920(RGB)×1080 , FHD

Pixel Format:     RGB Vertical Stripe

Display Area:     476.64(W)×268.11(H) mm

Bezel Opening:     479.8(W)×271.3(H) mm

Outline Size:     495.6(W)×292.2(H) ×10.7(D) mm

Surface:     Antiglare, Hard coating (3H)

Brightness:     250 cd/m² (Typ.)

Contrast Ratio:     1000:1 (Typ.) (TM)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode:     FFS, Normally Black, Transmissive

Best View on:     Symmetry

Response Time:     14 (Typ.)(Tr+Td)

Display Colors:     16.7M   98% (sRGB)

Lamp Type:     17S4P WLED , 30K hours , Without Driver

Frequency:     60Hz

Touch Screen:     Without

Panel Weight:     2.00Kgs (Typ.)

Application:     Desktop Monitor

Signal Interface:     LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage:     5.0V (Typ.)

Environment:     Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
