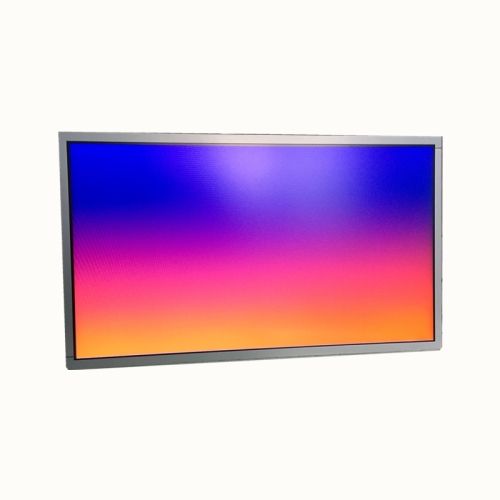

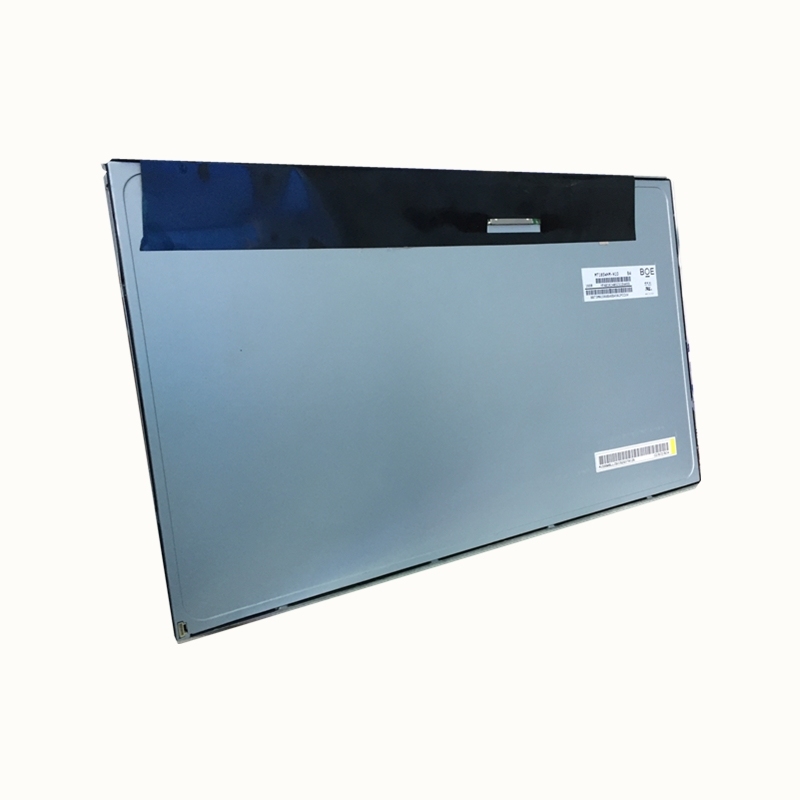

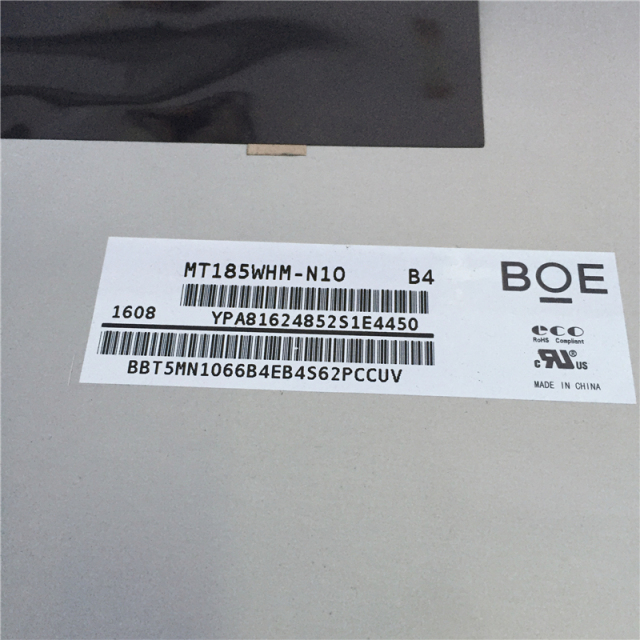

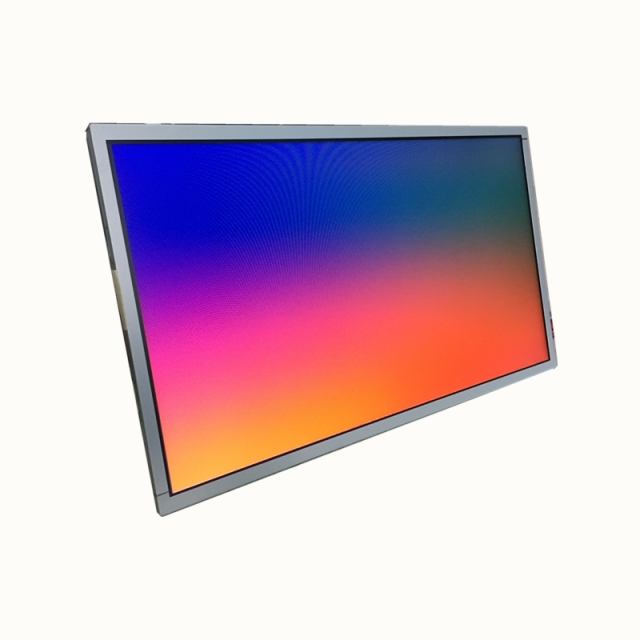

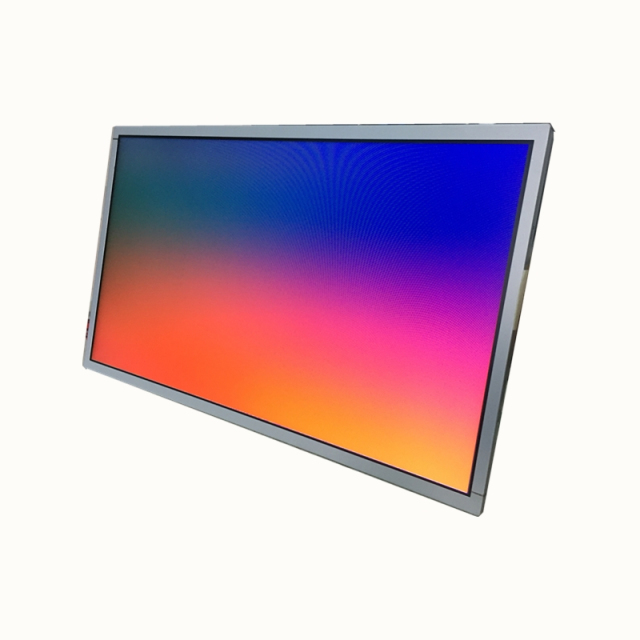

MT185WHM-N10 BOE 18.5 inch lcd display Slim-Size Display wide viewing angle for Stand-alone Monitor Support hd video/picture/music play.
MT185WHM-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Features
LVDS Interface with 1pixel / clock
High-speed response
6-bit(Hi-FRC) color depth, display 16. 7M colors
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
RoHS
Gamma Correction
RoHS
Gamma Correction
Forward Type
Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller
General Specification
Panel Brand: BOE
Panel Model: MT185WHM-N10
Panel Size : 18.5 inch
Panel Type: a-Si TFT-LCD , LCM
Resolution: 1366(RGB)×768 , WXGA
Pixel Format: RGB Vertical Stripe
Display Area: 409.8(W)×230.4(H) mm
Bezel Opening: 413.4(W)×234.0(H) mm
Outline Size: 430.4(W)×254.6(H) ×11.4(D) mm
Surface: Antiglare (Haze 25%), Hard coating (3H)
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)
Viewing Angle: 45/45/25/40 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode: TN, Normally White, Transmissive
Best View on: 6 o'clock
Response Time: 1.5/3.5 (Typ.)(Tr/Td)
Display Colors: 16.7M 72% (CIE1931)
Lamp Type: WLED , 30K hours , Without Driver
Frequency: 60Hz
Touch Screen: Without
Panel Weight: 1.31Kgs (Typ.)
Application: Desktop Monitor
Signal Interface: LVDS (1 ch, 8-bit) , 30 pins , Connector
Input Voltage: 5.0V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
