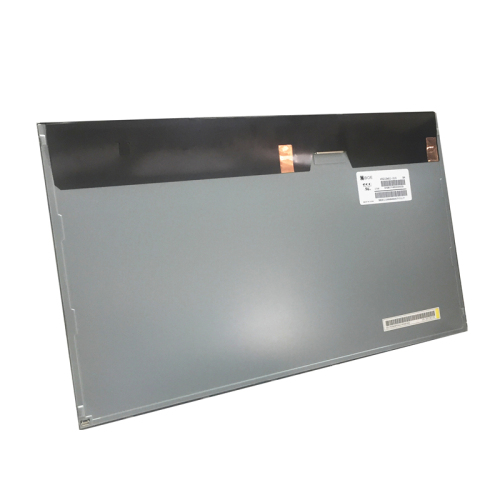

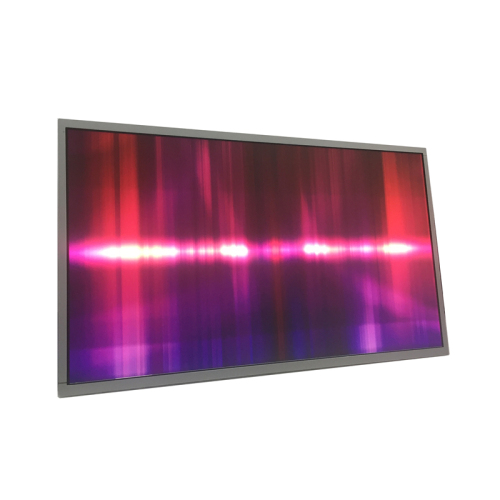

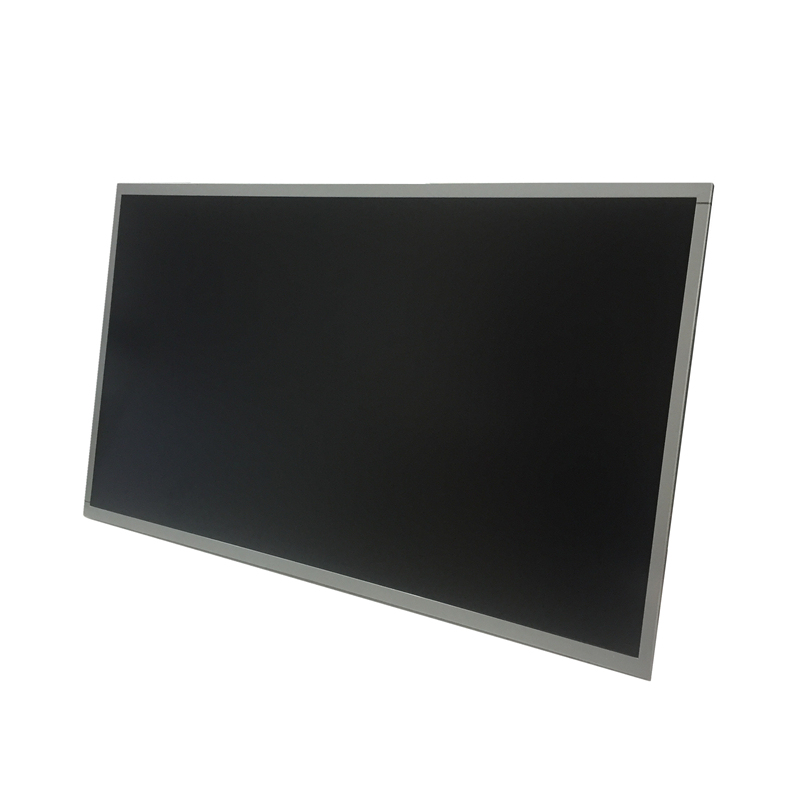

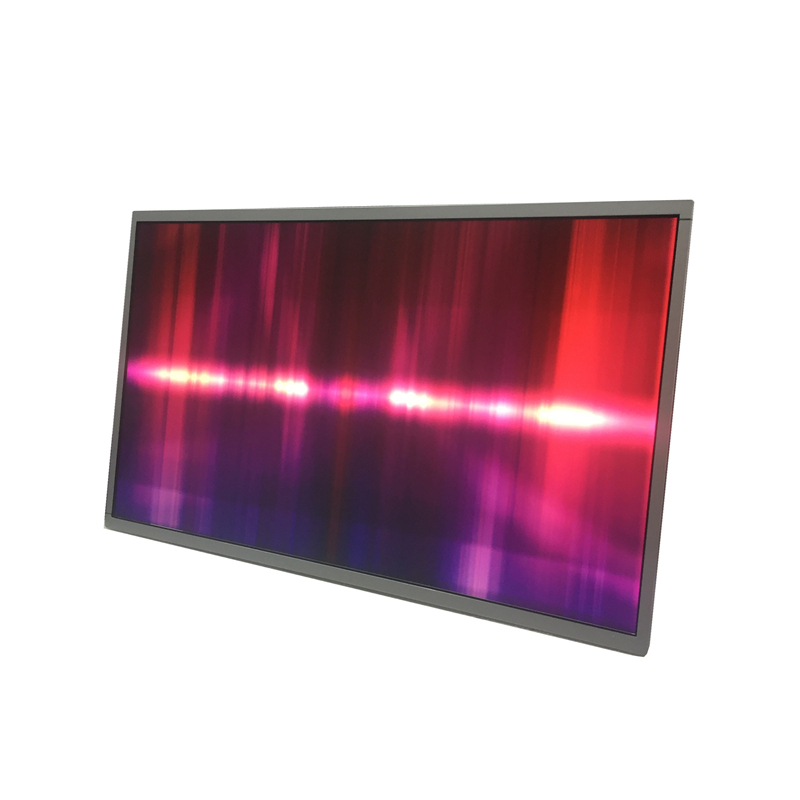

HR215WU1-210 BOE 21.5 inch lcd display

Item No.: HR215WU1-210
HR215WU1-210 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.
Description
High Quality 21.5 inch lcd hr215wu1-210 BOE IPS 21.5 inch tft lcd module with full view angle

HR215WU1-210 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features
* LVDS Interface with 2 pixel / clock
* High-speed response
* 0.5T Glass
* 6-bit (Hi-FRC) color depth, display 16. 7M colors
* Incorporated edge type back-light (LED)
* High luminance and contrast ratio, low reflection and wide viewing angle
* DE (Data Enable) only
* RoHS/Halogen Free
* TCO 6.0 , E/S 7.0 compliant
* Gamma Correction

Application
 Desktop Type of PC & Workstation Use
 Slim-Size Display for Stand-alone Monitor
 Display Terminals for Control System
 Monitors for Process Controller


General Specification
Brand:     BOE
Diagonal Size:     21.5 inch
Model:     HR215WU1-210
Type:     a-Si TFT-LCD , LCM
Configuration:     RGB Vertical Stripe
Pixel Format:     1920(RGB)×1080   [FHD]
Active Area:     476.64(H)×268.11(V) mm
Bezel Area:     479.8(H)×271.3(V) mm
Outline Dim.:     495.6(H)×292.2(V) ×11.3(D) mm
Treatment:     Antiglare, Hard coating (3H)
Luminance:     250 cd/m² (Typ.)
View Direction:     Symmetry
Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color:     16.7M   (sRGB)
Weight:     2.15Kgs (Typ.)
Frame Rate:     60Hz
Contrast Ratio:     1000:1 (Typ.) (TM)
Response Time:     14 (Typ.)(Tr+Td)
Operating Mode:     FFS, Normally Black, Transmissive
Light Source:     WLED  [17S4P] , 30K hours , W/O Driver
Designed For:     Desktop Monitor
Touch Panel:     Without

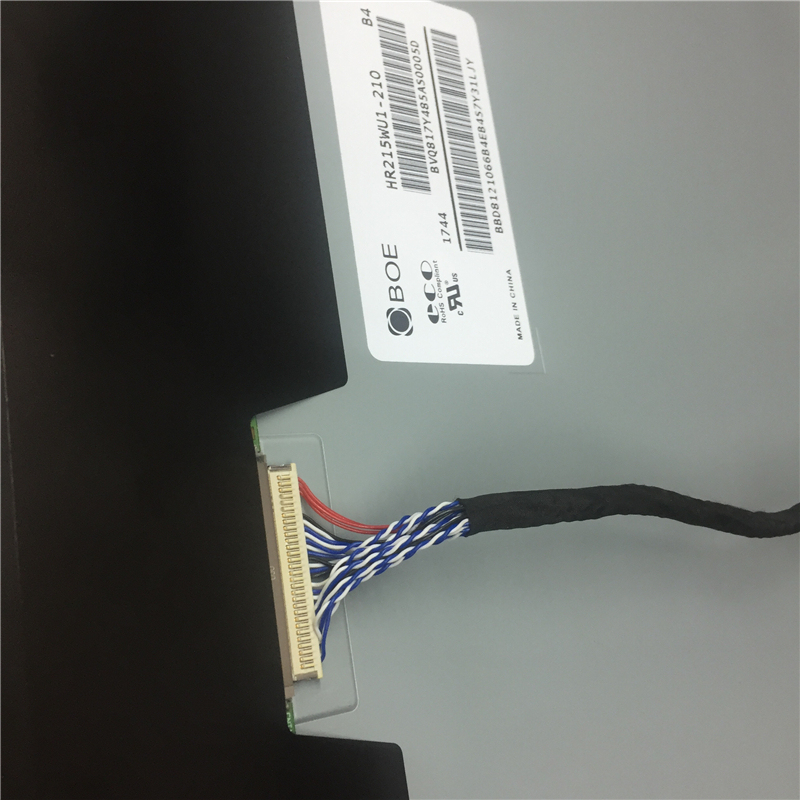

Interface Type:     30 pins   LVDS (2 ch, 8-bit) , Connector
Power Supply:     5.0V (Typ.)
Environment:     Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
