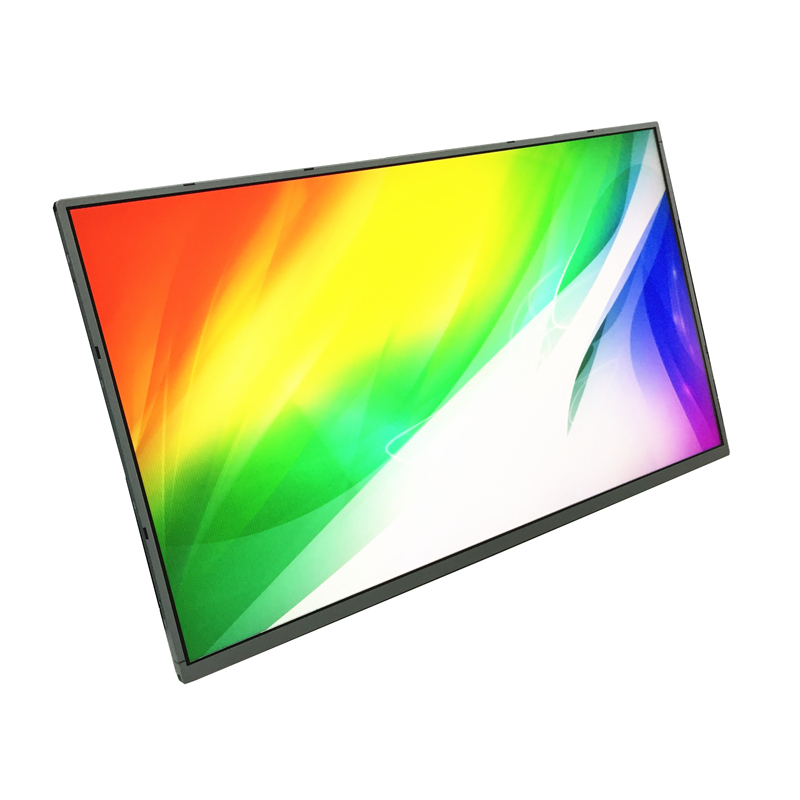

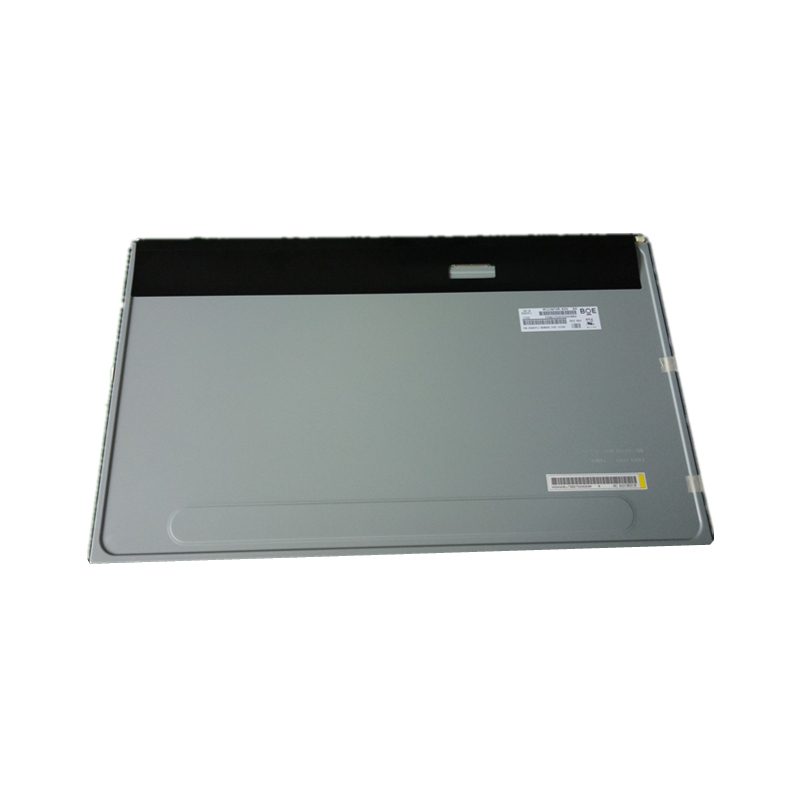

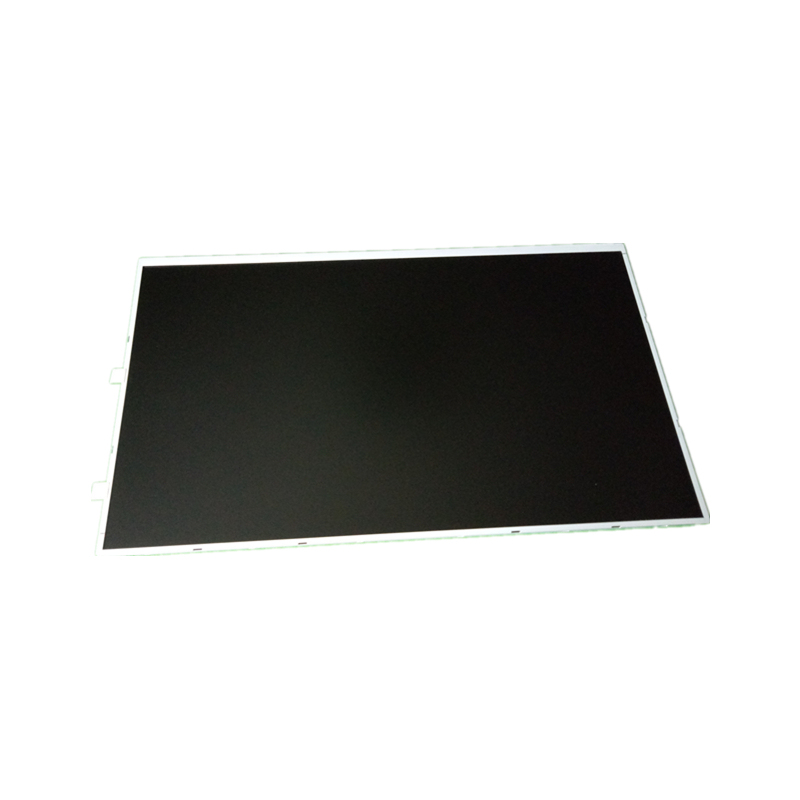

High Quality 23.8 inch lcd MV238FHM-N10 BOE IPS 24 inch tft lcd module with full view angle
MV238FHM-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 23.8 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Features
. Reverse type
. LVDS interface with 2 pixel/ clock
. High-speed response
. 6-bit (Hi-FRC) color depth, display 16.7m colors
. Incorporated edge type back-light (LED)
. Compatible with sRGB 98% & NTSC72%
. High luminance and contrast ratio , low reflection and wide viewing angle
. DE (data enable) only
. RoHS / Halogen Free
. TCO 6.0 , ES 6.0 compliant
. Gamma Correction
Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller
| Panel Brand | BOE |
| Panel Model | MV238FHM-N10 |
| Panel Size | 23.8 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080 , FHD |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline Size | 543(W)×317.4(H) ×11.4(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 72% (CIE1931) |
| Lamp Type | 3 strings WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
