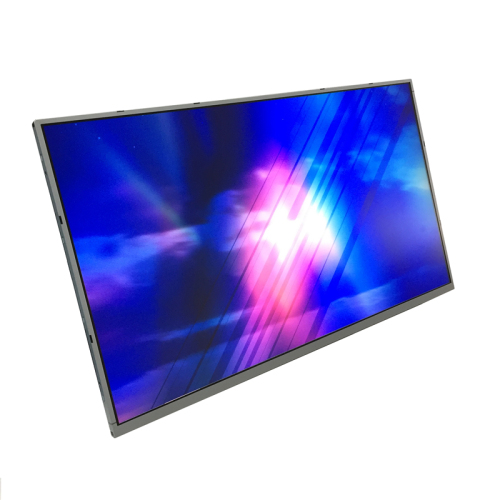

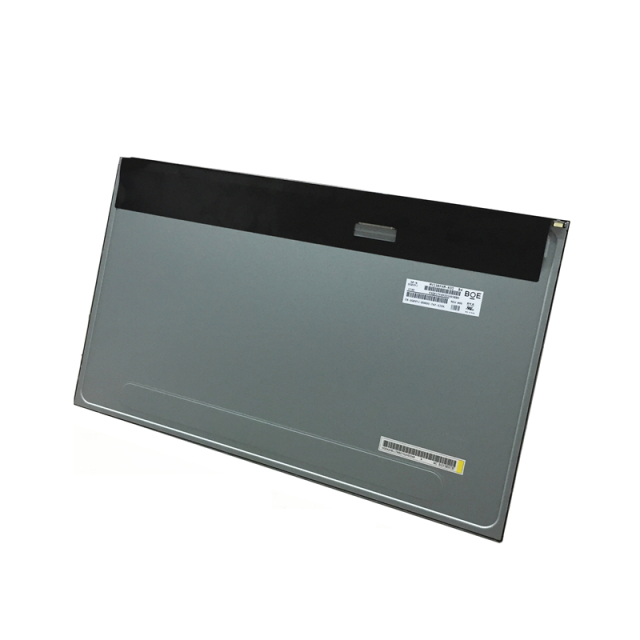

MV238FHM-N30 BOE 23.8 inch lcd display

Item No.: MV238FHM-N30
MV238FHM-N30 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 23.8 inch diagonally measured active area with FHD resolutions 1920*1080.
Description Review
Description

High Quality 23.8 inch lcd MV238FHM-N30 BOE IPS 24 inch tft lcd module with full view angle


MV238FHM-N30 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 23.8 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 2 pixel / clock

High-speed response

6-bit (Hi-FRC) color depth, display 16. 7M colors

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only

RoHS/Halogen Free

TCO 7.0 , ES 7.0 compliant

Gamma Correction

Reverse type

Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller

General Specification

Brand:     BOE

Model:     MV238FHM-N30

Diagonal Size:     23.8 inch

Type:     a-Si TFT-LCD, LCM

Pixel Format:     1920(RGB)×1080   [FHD]

Configuration:     RGB Vertical Stripe

Active Area:     527.04(H)×296.46(V) mm

Outline Dim.:     535(H)×313(V) ×13.4(D) mm

Bezel Area:     -

Treatment:     Antiglare (Haze 25%), Hard coating (3H)

Luminance:     250 cd/m² (Typ.)

Contrast Ratio:     1000:1 (Typ.) (TM)

View Direction:     Symmetry

esponse Time:     14 (Typ.)(G to G)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     ADS, Normally Black, Transmissive

Support Color:     16.7M   72% (CIE1931)

Light Source:     WLED  [3 strings] , 30K hours , W/O Driver

Weight:     2.24Kgs (Typ.)

Designed For:     Desktop Monitor

Frame Rate:     60Hz

Touch Panel:     Without

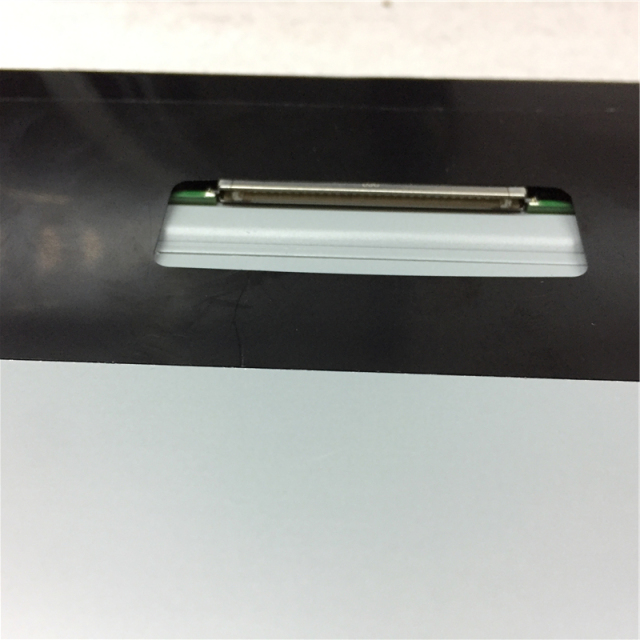

Interface Type:     30 pins   LVDS (2 ch, 8-bit) , Connector

Power Supply:     5.0V (Typ.)
