BOE LCD MODULE · OEM INTEGRATION

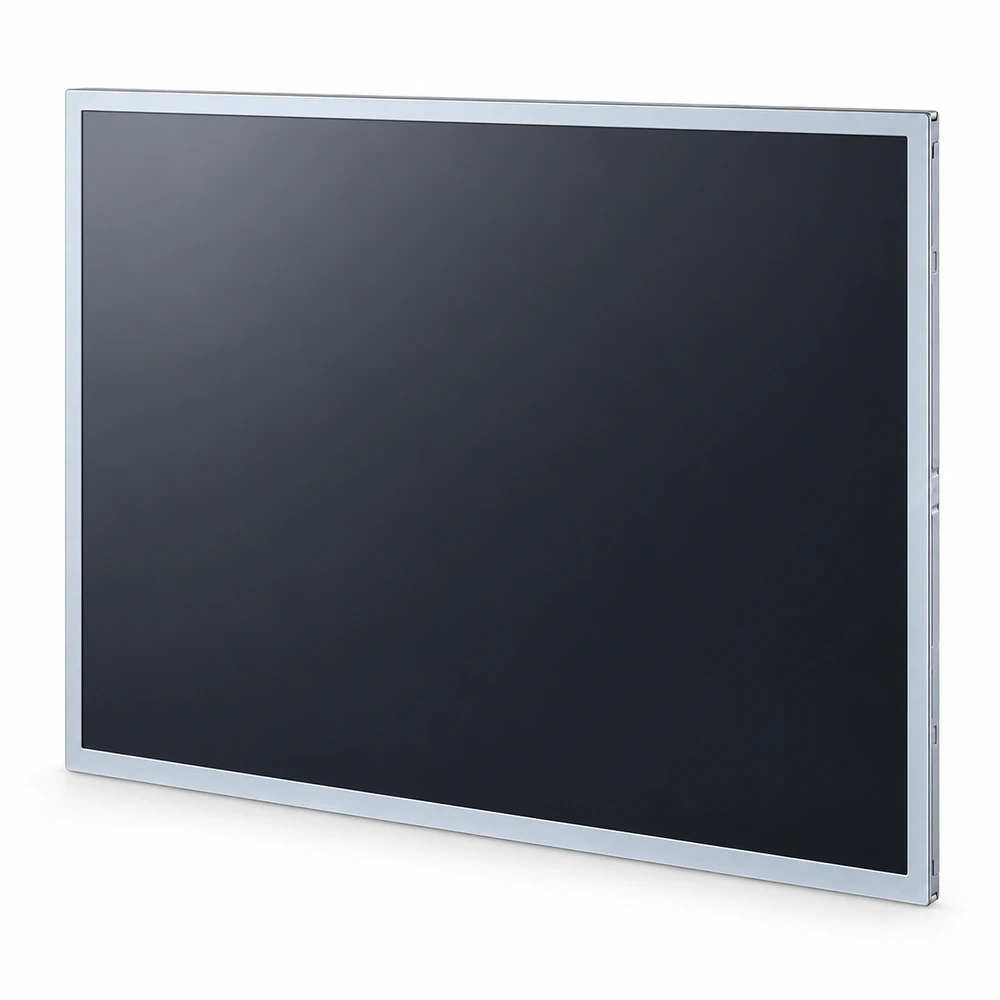

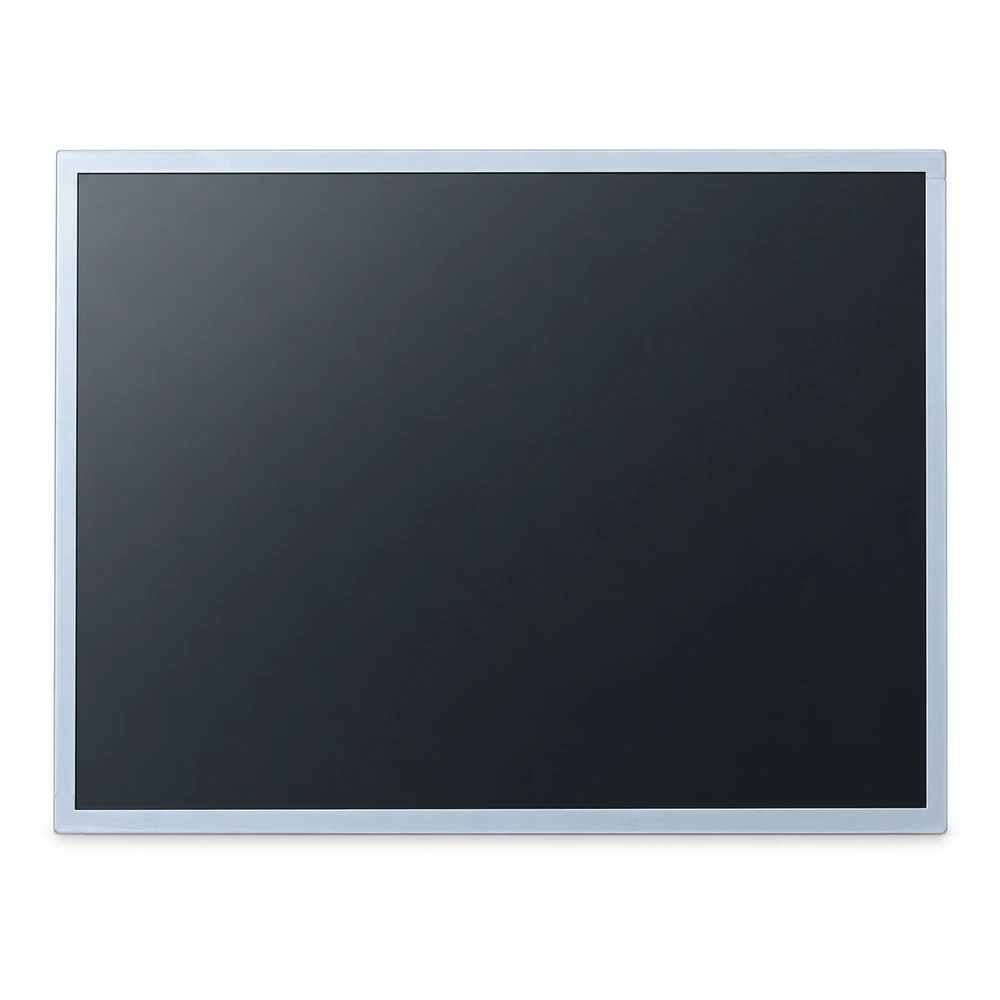

The BOE EV190E0M-N11 is a 19.0-inch HADS TFT-LCD module with 1280 × 1024 resolution and a 5:4 display format. Its 250 cd/m² typical brightness, anti-glare surface and wide viewing angles make it a candidate for indoor equipment displays, operator interfaces and digital signage.
1280 × 1024 SXGA | 250 nits | 30-pin LVDS | 0°C to +50°C
Request a QuoteSupplied as a bare LCD module with WLED backlight. Touchscreen and backlight driver are not included.
The SXGA pixel layout supports equipment interfaces designed around 1280 × 1024. For an existing system, evaluate the module against your current display’s active area, mounting arrangement and electrical requirements.
HADS technology provides typical viewing angles of 89° in each direction at CR ≥ 10. The panel displays 16.7 million colors with a typical 1000:1 contrast ratio.
The matte surface combines 25% haze with a 3H hard coating. Evaluate the finished assembly under actual ambient lighting, particularly when adding a cover lens or touchscreen.

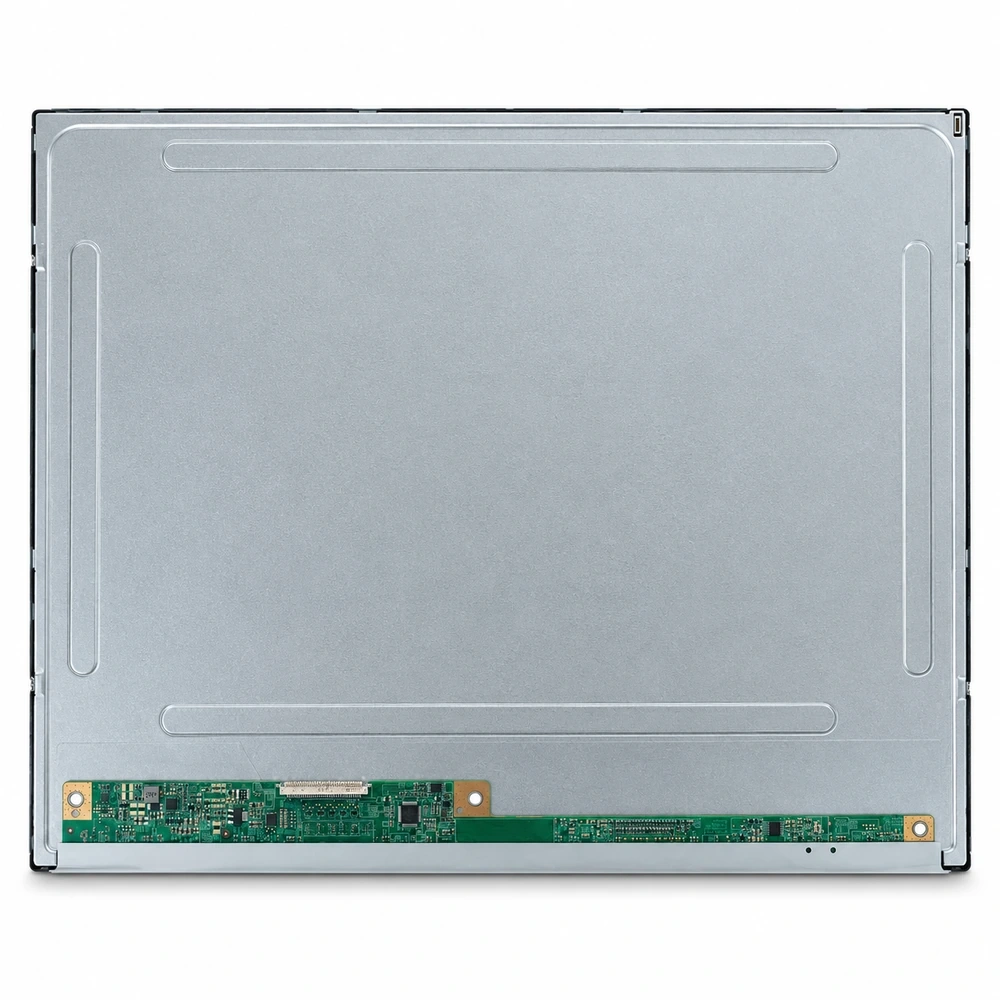

A dual-channel, 8-bit LVDS interface and 30-pin connector support integration with a compatible host or controller. The module measures 396 × 324 × 10.4 mm and operates at a typical 5.0 V panel supply.
| Parameter | Specification |
|---|---|
| Manufacturer / Model | BOE / EV190E0M-N11 |
| Display size / Module type | 19.0-inch diagonal / a-Si TFT-LCD module |
| Resolution / Aspect ratio | 1280 (RGB) × 1024, SXGA / 5:4 |
| Pixel arrangement | RGB vertical stripe |
| Display mode | HADS, normally black, transmissive |
| Active area (H × V) | 374.784 × 299.827 mm |
| Outline dimensions (H × V × D) | 396 × 324 × 10.4 mm |
| Weight | 1.52 kg (typical) |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical, transmissive mode) |
| Viewing angles | 89° / 89° / 89° / 89° (typical, CR ≥ 10) |
| Response time | 14 ms (typical, gray to gray) |
| Display colors / Color gamut | 16.7 million / 73% NTSC |
| Surface treatment | Anti-glare, 25% haze; 3H hard coating |
| Refresh rate | 60 Hz |
| Signal interface | Dual-channel LVDS, 8-bit, 30-pin connector |
| Panel supply voltage | 5.0 V (typical; not the backlight drive voltage) |
| Power consumption | 10.64 W typical / 14.22 W maximum |
| Backlight | WLED, 24S2P configuration |
| Listed backlight life | 30,000 hours; subject to operating conditions |
| Backlight driver | Not included |
| Touchscreen | Not included |
| Operating temperature | 0°C to +50°C |
| Storage temperature | −20°C to +60°C |
| Orientation | Landscape / portrait |
Values follow the supplied product information. Typical values are not guaranteed limits. Confirm the current manufacturer specification, revision and test conditions before design approval or ordering.
Consider this module for indoor industrial operator interfaces, embedded equipment displays and digital signage where a 19-inch SXGA format fits the system design. Landscape and portrait use are listed in the product information; verify mounting and thermal conditions in the final enclosure.
Send XIANHENG your host interface, enclosure drawing, viewing conditions and order quantity to discuss panel supply and LCD integration requirements. If your project needs touch input, a controller board or a cable assembly, request these as separate items for compatibility review.
For a quotation, include the model EV190E0M-N11, required quantity, delivery destination and whether you need the bare panel or an integrated display solution. Ask for the current specification, availability and lead time for your order.
No. The standard module does not include a touchscreen. Touch integration must be specified separately and checked against the optical and mechanical design.
The panel input is LVDS. An HDMI source requires a compatible HDMI-to-LVDS controller, a correctly matched cable and suitable power and backlight drive arrangements.
The listed brightness is 250 cd/m² and the operating temperature range is 0°C to +50°C. These specifications do not establish direct-sunlight readability, weather protection or suitability for outdoor installation. Share your actual lighting and environmental requirements for selection support.
Possibly, after compatibility verification. Check the mechanical drawing, interface pinout, LVDS mapping, timing, supply requirements and backlight arrangement before approving a replacement.
