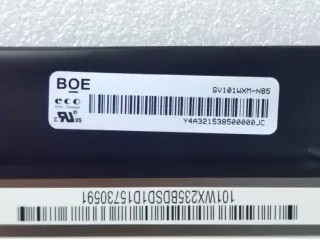

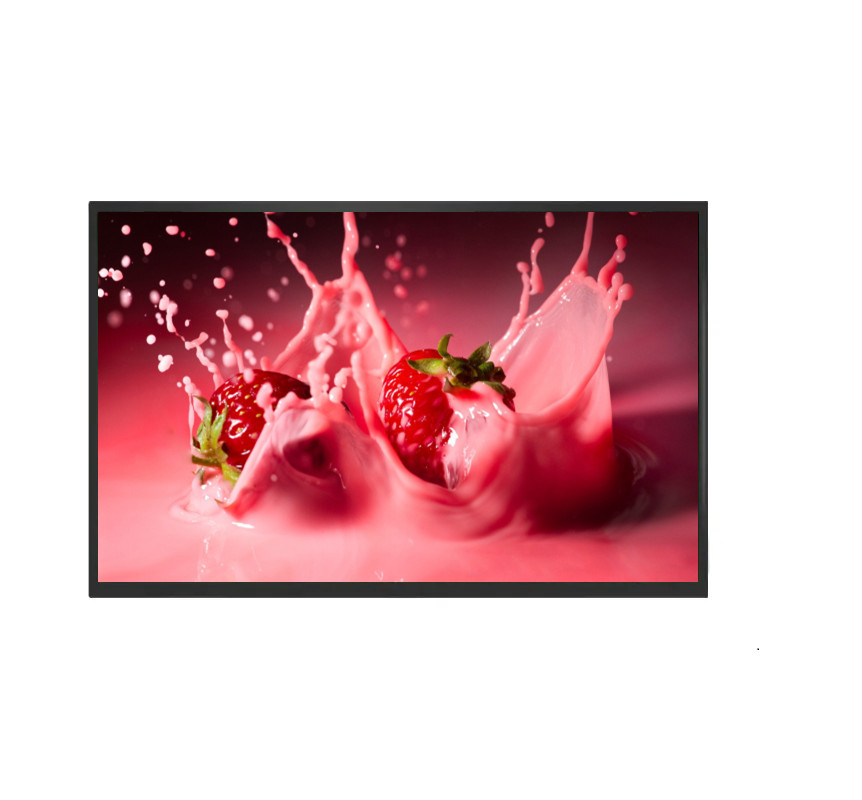

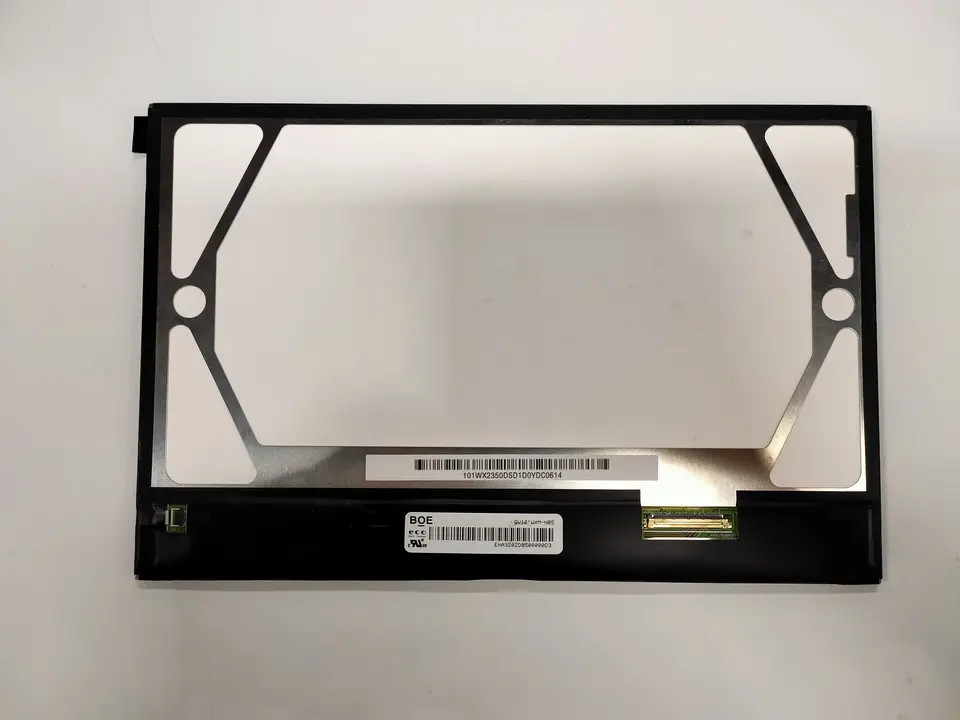

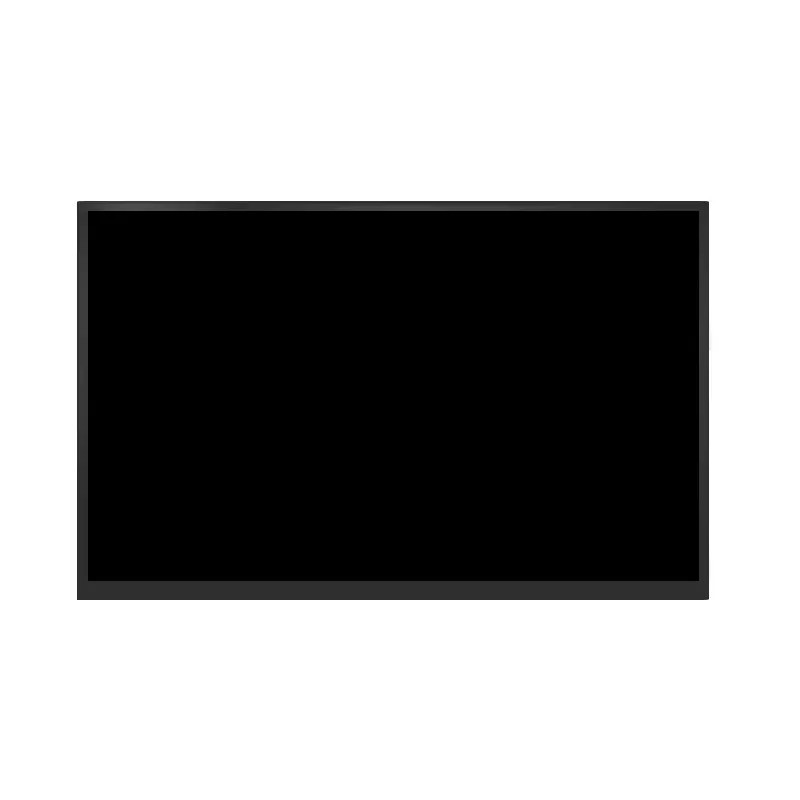

BOE GV101WXM-N85 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte . Based on its features, we recommend that this model be applied to Pad & Tablet etc.
If you want to embed GV101WXM-N85 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail.

【Notice】
- LCD is fragile, please avoid striking.
- Please keep the LCD screen in a dry environment.
- We could supply Driver Boards Kits if you need.
- Our company deals only in wholesale, not retail.
- 40 pcs/box. We will deliver without unpacking the original package.
- Shipping fees need to be covered by buyers, please send a message to us to get order details.
- Due to the market fluctuations, please CONTACT US for accurate latest price.
- We reserve the right to reject orders that do not comply with our requirements.
Brand |
BOE |
Model P/N |
GV101WXM-N85 |
Diagonal Size |
10.1" |
Panel Type |
a-Si TFT-LCD, LCM |
Resolution |
1280(RGB)×800, WXGA 149PPI |
Pixel Format |
RGB Vertical Stripe |
Active Area |
216.96(W)×135.6(H) mm |
Bezel Opening |
- |
Outline Size |
228.2(W)×148.85(H) ×4.9(D) mm |
Brightness |
430 cd/m² (Typ.) |
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down |
Best View on |
Symmetry |
Display Colors |
16.7M 48% NTSC |
Frequency |
60Hz |
Weight |
250g (Max.) |
Surface |
Antiglare (Haze 25%) |
Contrast Ratio |
800:1 (Typ.) (TM) |
Display Mode |
ADS, Normally Black, Transmissive |
Response Time |
30 (Typ.)(Tr+Td) |
Lamp Type |
WLED , 15K hours , With LED Driver |
Touch Screen |
Without |
Application |
Pad & Tablet |
Signal Interface |
LVDS (1 ch, 8-bit) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
Input Voltage |
3.3V (Typ.) |
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
