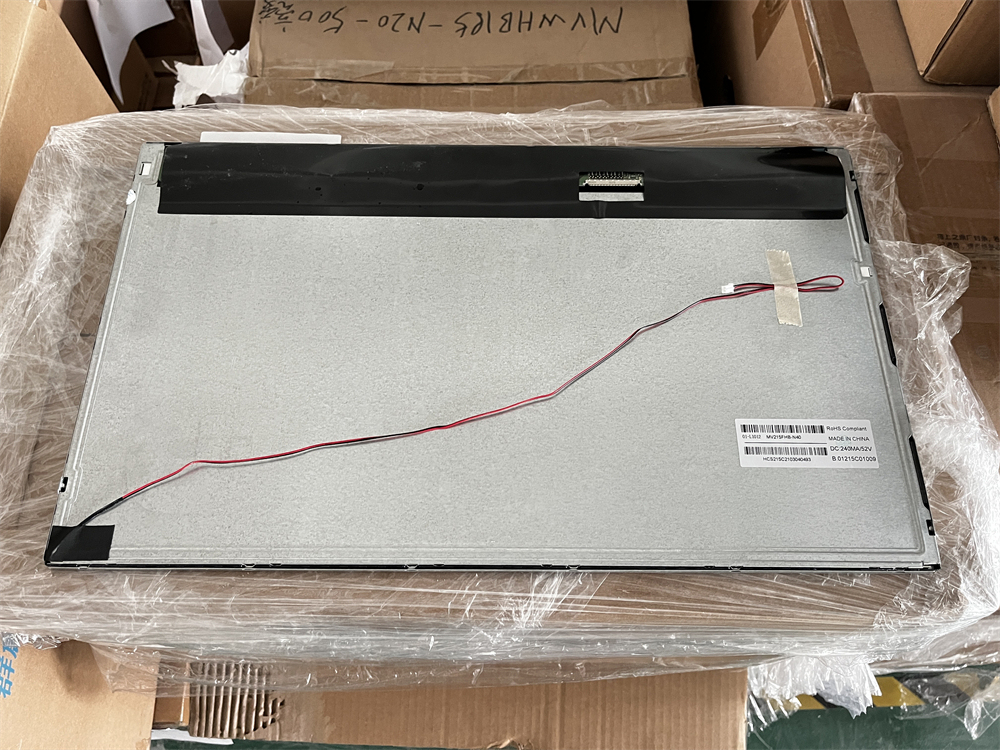

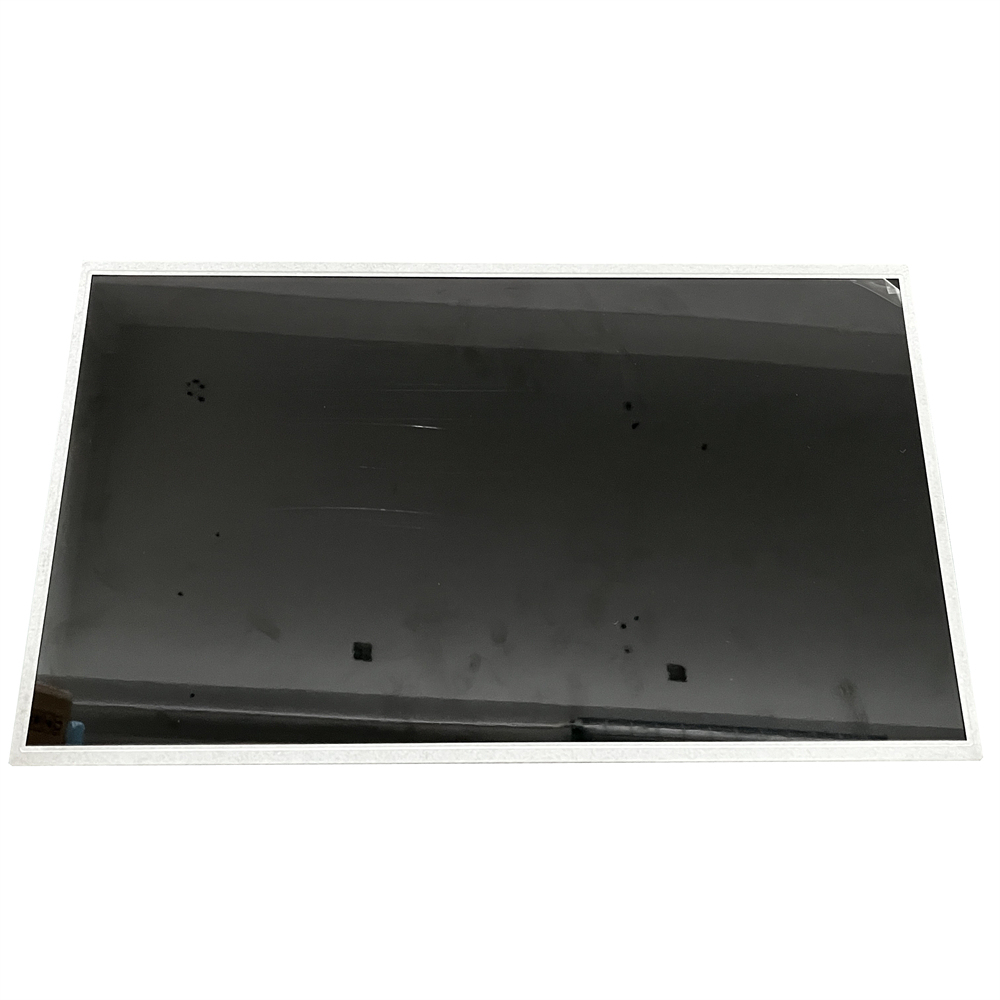

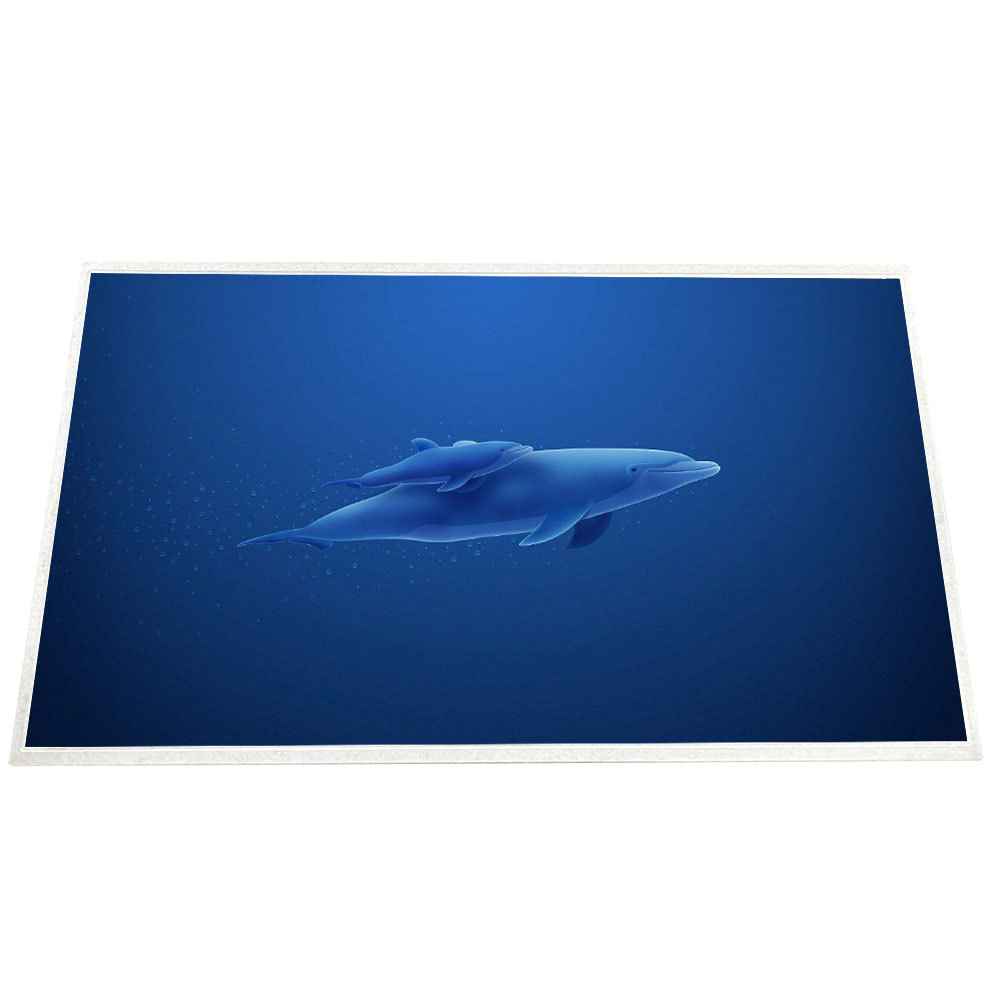

MV215FHB-N40 BOE 21.5 inch lcd display

No.MV215FHB-N40
MV215FHB-N30 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.
  • MV215FHB-N40 BOE 21.5 inch lcd display
  • MV215FHB-N40 BOE 21.5 inch lcd display
  • MV215FHB-N40 BOE 21.5 inch lcd display
  • MV215FHB-N40 BOE 21.5 inch lcd display
  • MV215FHB-N40 BOE 21.5 inch lcd display
Description

MV215FHB-N30 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.


 Features:
LVDS Interface with 2 pixel / clock
High-speed response
0.5t Glass
6-bit (Hi-FRC) color depth, display 16. 7M colors

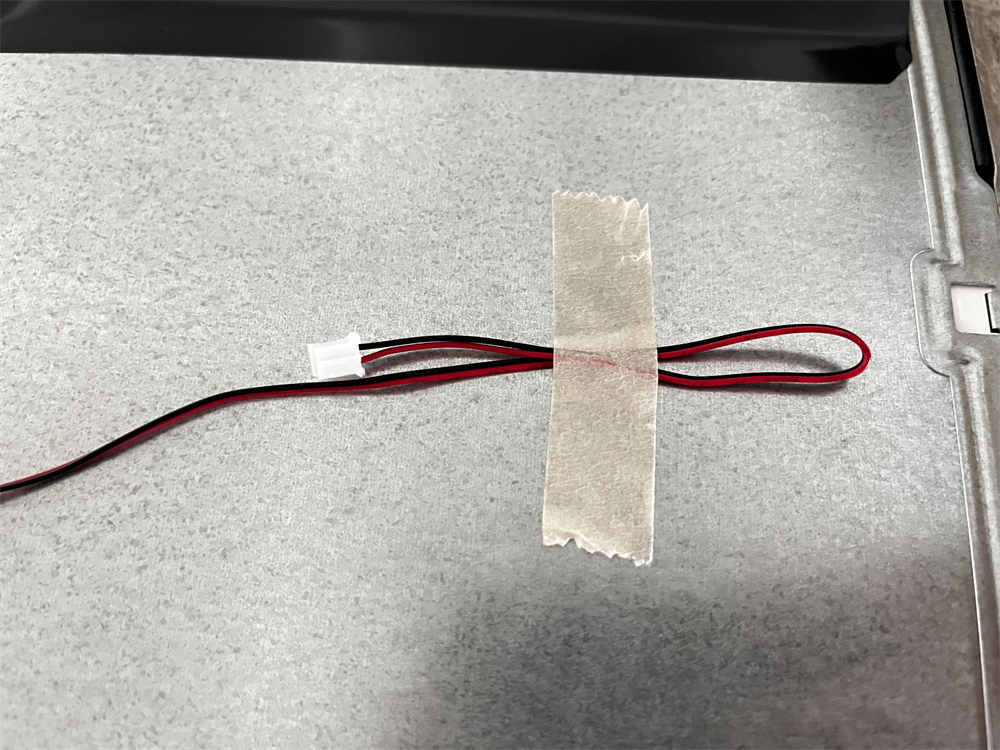

Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS/Halogen Free
ES 7.0 compliant
Gamma Correction
Reverse type

 Application:
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

Manufacturer BOE
Screen Size 21.5 inch
Pixel Number 1920(RGB)×1080   (FHD)
Active Area(mm) 476.064 × 267.786 (H×V)
Bezel Area(mm) -
Luminance 250 (cd/m²)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Good View at Symmetry
Glass Thickness 0.50+0.50 mm
Color Depth 16.7M   72% NTSC
Refresh Rate 60Hz
Model Name MV215FHB-N30
Screen Type CELL ,   a-Si TFT-LCD
Arrangement RGB Vertical Stripe
Outline(mm) 483.646 × 278.676 × 1.32 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Work Mode ADS, Normally Black, Transmissive
Response 14 (Typ.)(G to G) ms
Transmissivity 5.6% (Typ.)(with Polarizer)
Used for Desktop Monitor
Touchscreen Without
Driver IC list Built-in COF 6 source chips + GOA

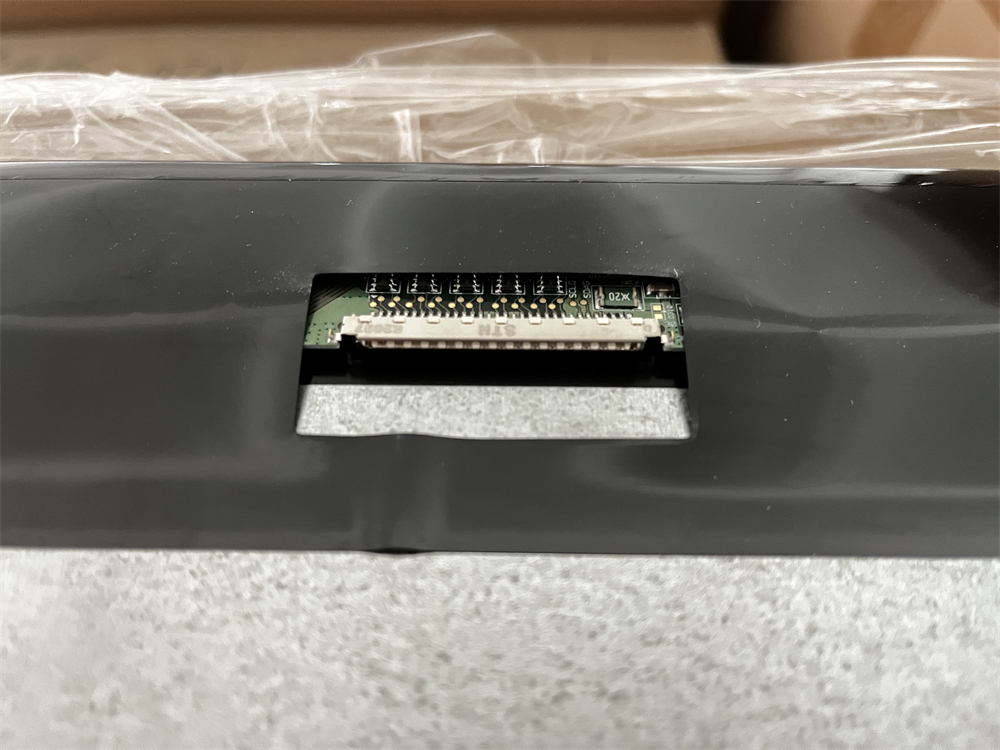

Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
