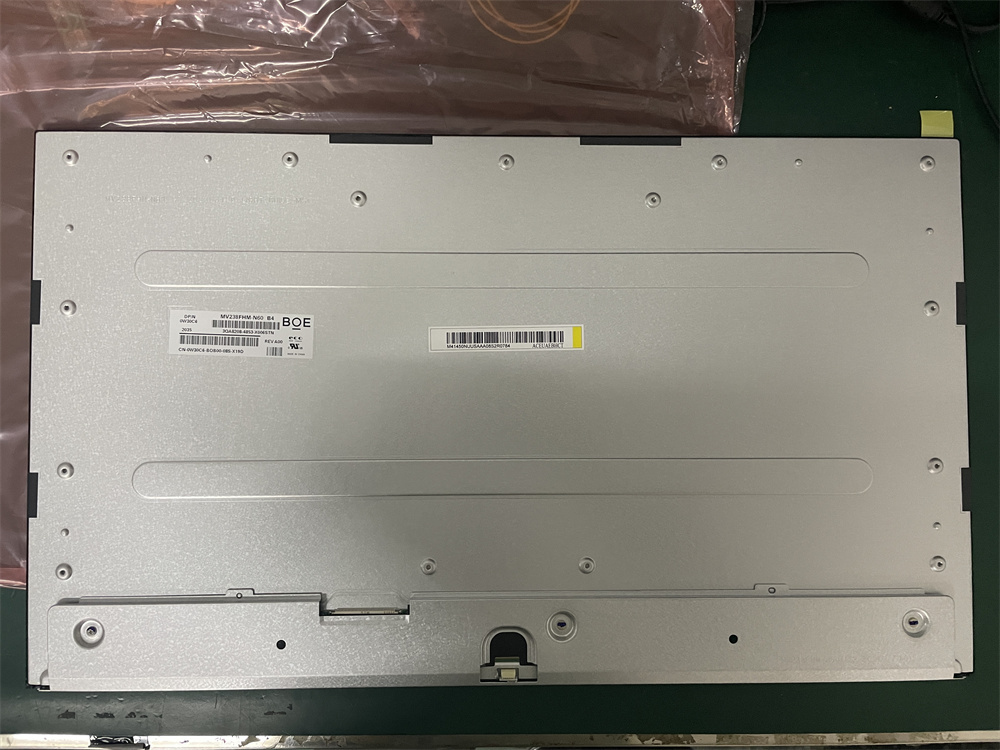

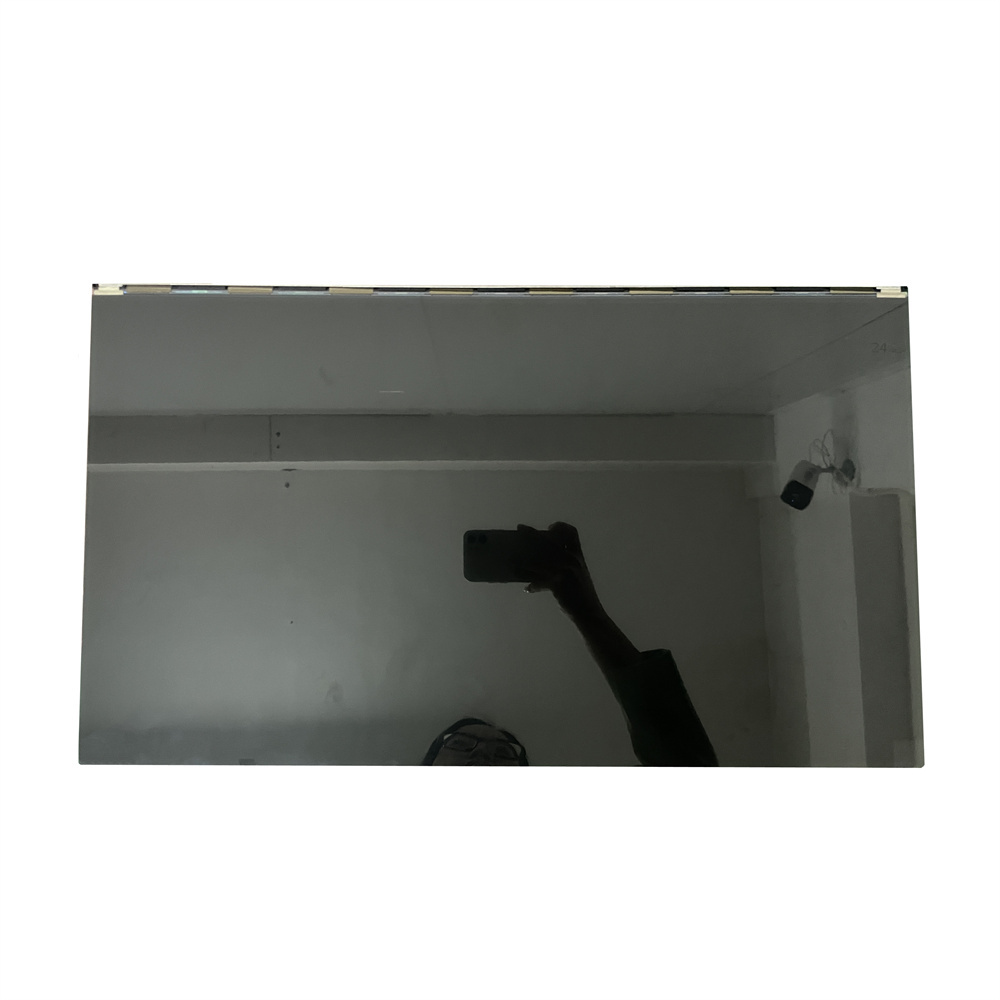

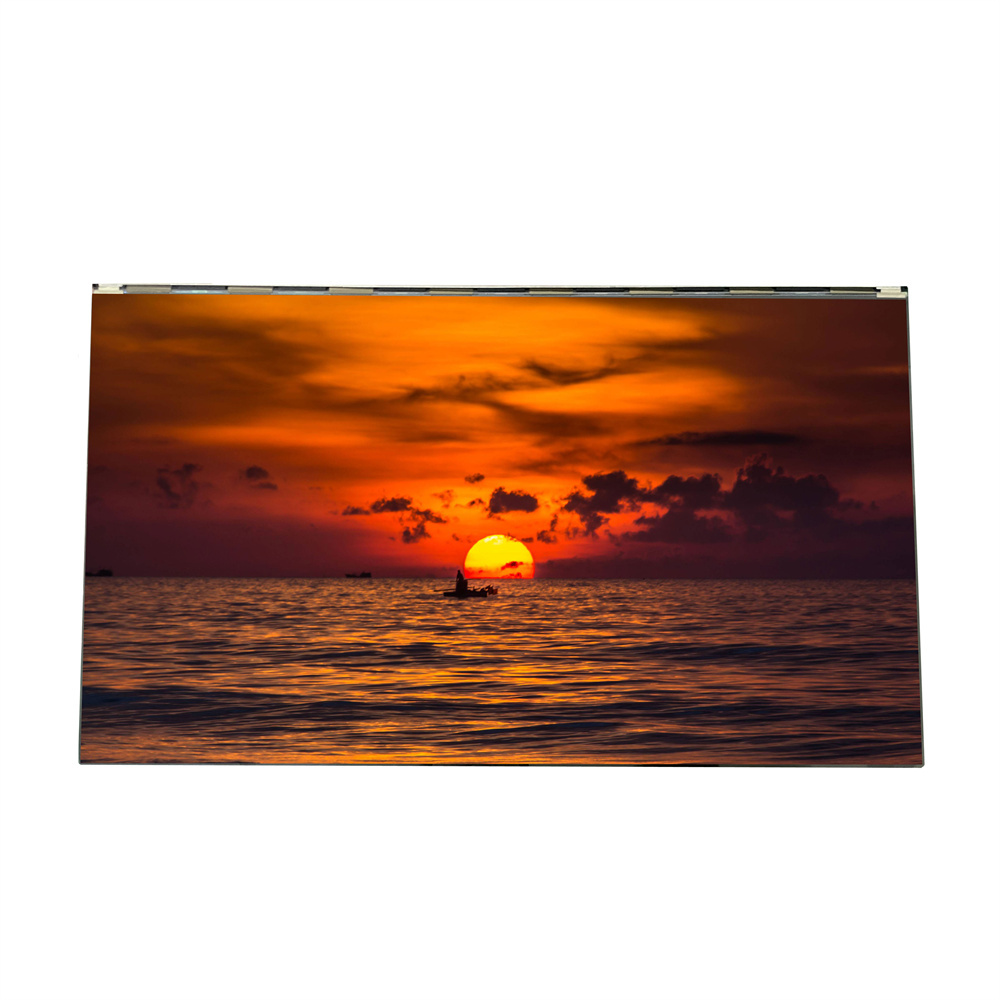

MV238FHM-N60 BOE 23.8 inch 3-side borderless lcd display

Item No.: MV238FHM-N60
The MV238FHM-N60 is a 23.8 inch 3-side borderless TFT-LCD display panel product from BOE, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

The MV238FHM-N60 is a 23.8 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen.



It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: 3-side boderless, WLED Backlight, Reverse I/F, Matte , ES8.0; 3-side borderless. Based on its features, we recommend that this model be applied to Desktop Monitor etc.



If you want to embed MV238FHM-N60 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail.



 Features

LVDS Interface with 2 pixel / clock

High-speed response

6-bit (Hi-FRC) color depth, display 16. 7M colors

Incorporated edge type back-light (LED)

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only

RoHS/Halogen Free

TCO 7.0 , ES 7.0 compliant

Gamma Correction

Reverse type

 Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller

 General Specification

Manufacturer: BOE

Model Name: MV238FHM-N60

Screen Size: 23.8 inch

Screen Type: LCM,   a-Si TFT-LCD

Pixel Number: 1920(RGB)×1080   (FHD)  92PPI

Arrangement: RGB Vertical Stripe

Active Area(mm): 527.04 × 296.46 (H×V)

Outline(mm): 535 × 313 × 12.5 (H×V×D)

Bezel Area(mm): -

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000 : 1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response: 14 (Typ.)(G to G) ms

Good View at: Symmetry

Work Mode: ADS, Normally Black, Transmissive

Color Depth: 16.7M   72% NTSC

Backlight: 20S4P WLED , 30K hours , No Driver

Mass: 2.20Kgs (Typ.)

Used for: Desktop Monitor

Refresh Rate: 60Hz

Touchscreen: Without

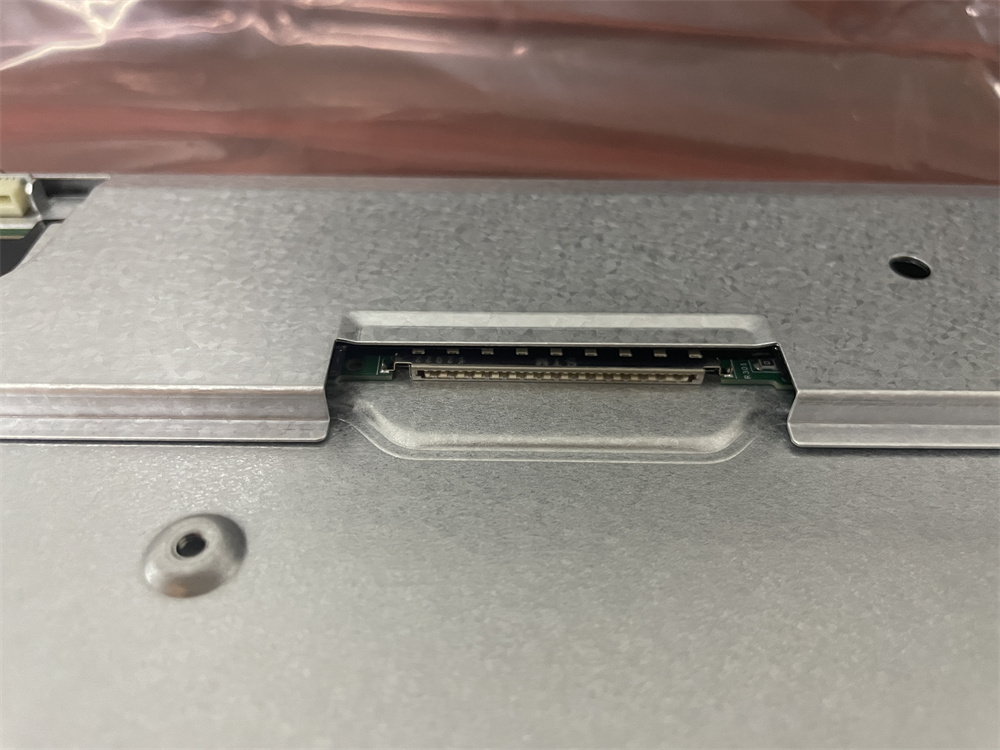

Signal Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Voltage Supply: 5.0V (Typ.)

Max. Ratings: Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
