MV238FHM-N62 BOE 23.8 inch low blue light panel

No.MV238FHM-N62

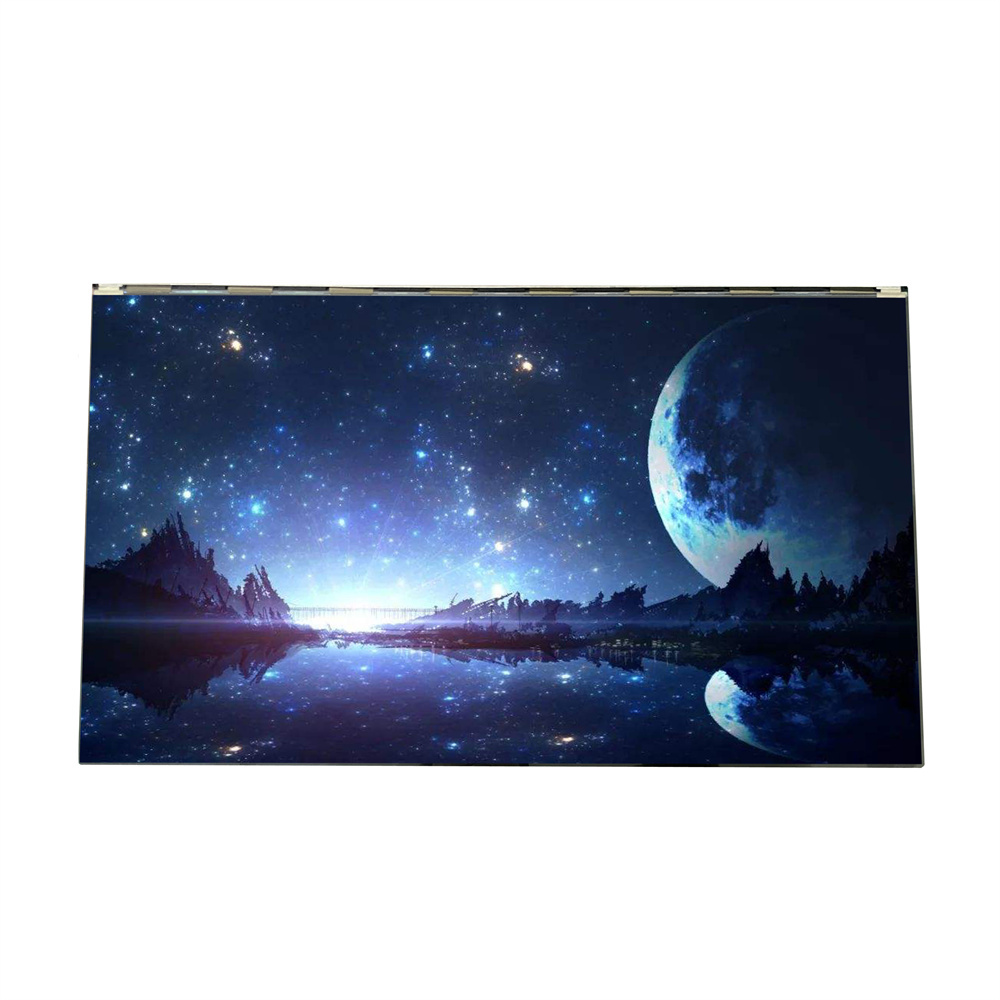

The MV238FHM-N62 is a 23.8 inch 3-side borderless TFT-LCD display panel product from BOE, with an integral low blue light WLED backlight system, without backlight driver, without touch screen.
Price:
USD$50-USD$46
  • MV238FHM-N62 BOE 23.8 inch low blue light panel
  • MV238FHM-N62 BOE 23.8 inch low blue light panel
  • MV238FHM-N62 BOE 23.8 inch low blue light panel
  • MV238FHM-N62 BOE 23.8 inch low blue light panel
  • MV238FHM-N62 BOE 23.8 inch low blue light panel
Description

The MV238FHM-N62 is a 23.8 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen.



It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: 3-side boderless, WLED Backlight, Reverse I/F, Matte , ES8.0; 3-side borderless. Based on its features, we recommend that this model be applied to Desktop Monitor etc.



If you want to embed MV238FHM-N62 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail.



 Features
        LVDS Interface with 2 pixel / clock
        High-speed response
        6-bit (Hi-FRC) color depth, display 16. 7M colors
        Incorporated edge type back-light (LED)
        High luminance and contrast ratio, low reflection and wide viewing angle
        DE (Data Enable) only
        RoHS/Halogen Free
        TCO 8.0 , ES 8.0 compliant
        TUV low blue light panel
        Gamma Correction
        Reverse type
 Application
        Desktop Type of PC & Workstation Use
        Slim-Size Display for Stand-alone Monitor
        Display Terminals for Control System
        Monitors for Process Controller

Brand BOE
Model MV238FHM-N62
Diagonal Size 23.8 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1920(RGB)×1080  [FHD]  92PPI
Configuration RGB Vertical Stripe
Active Area 527.04(H)×296.46(V) mm
Outline Dim. 535(H)×313(V) ×12(D) mm
Bezel Area -
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode ADS, Normally Black, Transmissive
Support Color 16.7M   72% NTSC
Light Source WLED  [20S4P] , 30K hours , W/O Driver
Weight 2.20Kgs (Typ.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
