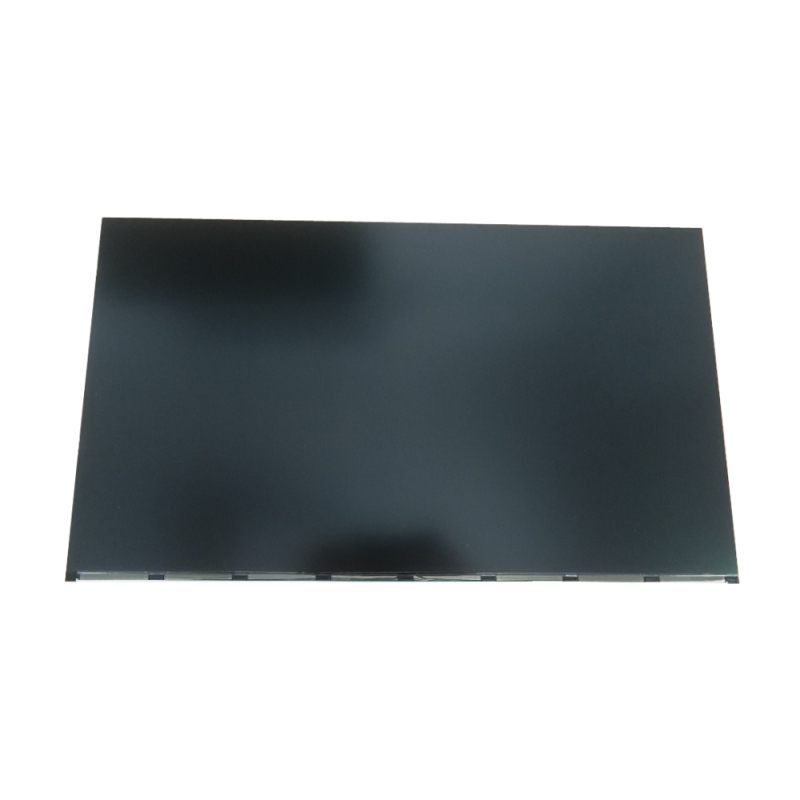

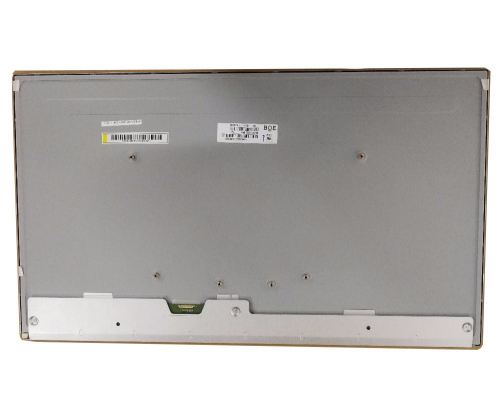

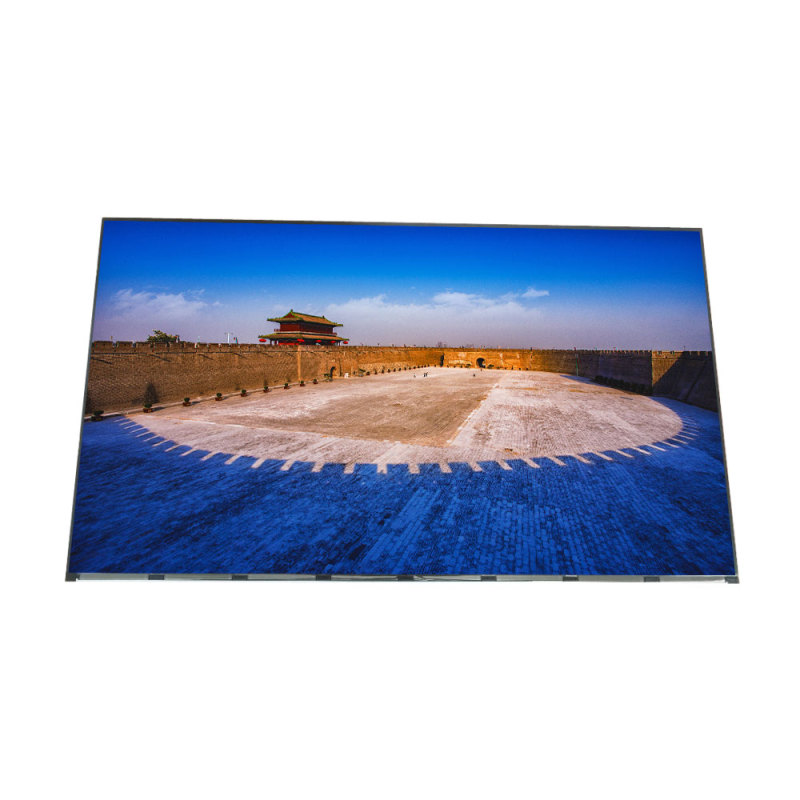

MV270QUM-N30 BOE 27 inch 4K UHD lcd module

Item No.: MV270QUM-N30
MV270QUM-N30 is a 27.0" 4K UHD diagonal a-Si TFT-LCD display panel product from BOE, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

MV270QUM-N30 BOE 27 inch 4K UHD TFT-LCD display module with full viewing angle

MV270QUM-N30 is a 27.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, Reverse I/F, 10 bit, Matte , SNB, 72% NTSC. Based on its features, we recommend that this model be applied to Desktop Monitor etc.

If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail of MV270QUM-N30.

Features

Reverse Type

4 lane eDP Interface with 5.4Gbps Link Rates

10bit(8+AFRC) color depth, display 1.07B colors

Incorporated edge type back-light (LED)

Compatible with sRGB 100%

High luminance and contrast ratio, low reflection and wide viewing angle

RoHS/Halogen Free

ES 7.0 compliant

Gamma Correction

ESD Grade:Class B



Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller



General Specification

Manufacturer: BOE

Model Name: MV270QUM-N30

Screen Size: 27.0 inch

Screen Type: LCM,   a-Si TFT-LCD

Pixel Number: 3840(RGB)×2160   (UHD)  163PPI

Arrangement: RGB Vertical Stripe

Active Area(mm): 596.736 × 335.664 (H×V)

Outline(mm): 611.8 × 355.6 × 13.5 (H×V×D)

Bezel Area(mm): -

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 300 cd/m² (Typ.)

Contrast Ratio: 1000 : 1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response: 14 (Typ.)(G to G) ms

Good View at: Symmetry

Work Mode: ADS, Normally Black, Transmissive

Color Depth: 1.07B   72% NTSC

Backlight: 18S4P WLED , 30K hours , No Driver

Mass: 3.11Kgs (Typ.)

Used for: Desktop Monitor

Refresh Rate: 60Hz

Touchscreen: Without

Signal Type: eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector 30 pins

Voltage Supply: 10.0V (Typ.)

Max. Ratings: Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
