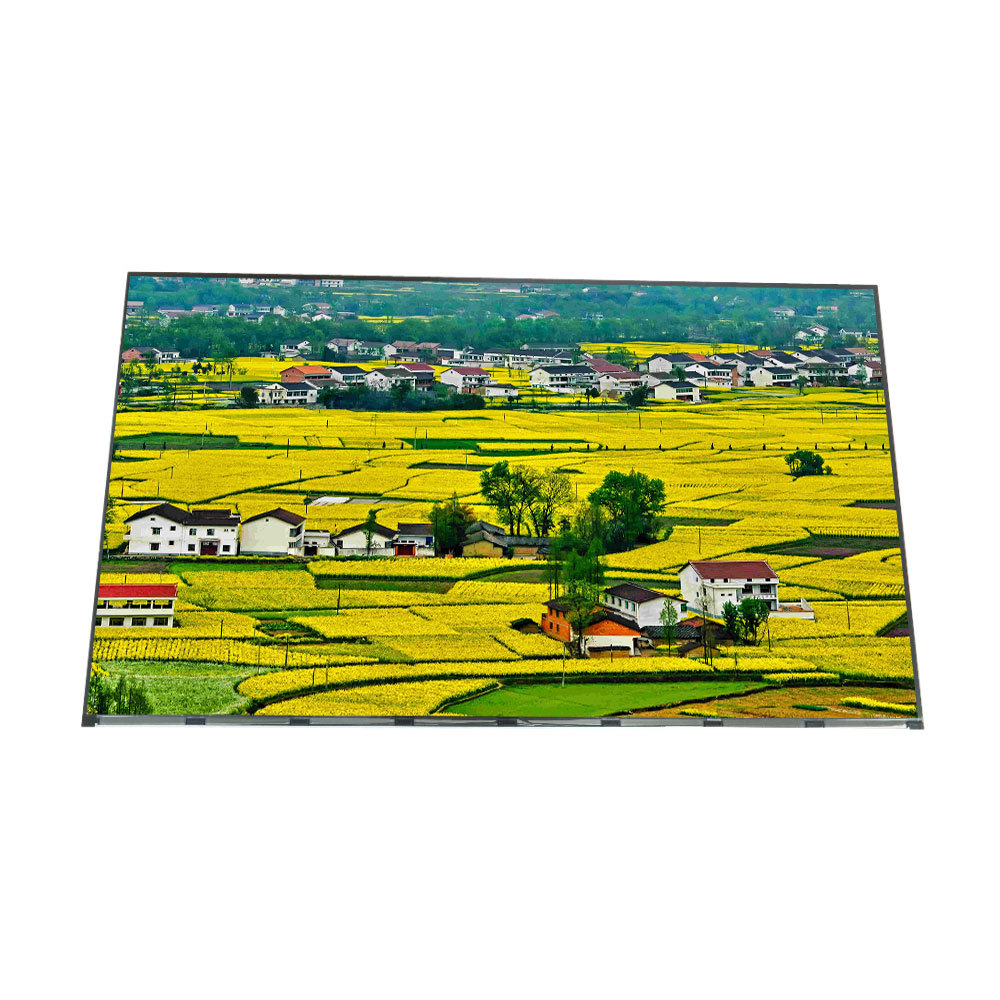

MV315QUM-N10 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: DCI-P3, sRGB, 3-side boderless, WLED Backlight, 10 bit, Matte , 3-side borderless, ES8.0/TCO8.0/CEL1/CEC compliant, sRGB. Based on its features, we recommend that this model be applied to Desktop Monitor etc.
If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail of MV315QUM-N10.
Features
Reverse Type
4 lane eDP Interface with 5.4Gbps Link Rates
10bit (8bit+A-FRC) color depth, display 1.07B colors
Incorporated edge type back-light (LED)
Compatible with sRGB Matching Ratio 100%( Typ.) 98%(Min.),@CIE 1931
Compatible with DCI-P3 94%(Typ.)90%(Min.)@CIE1931, 95%(Typ.)90%(Min.)@CIE1976
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS/Halogen Free
ES7.0/TCO8.0 compliant
Gamma Correction
Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller
General Specification
Manufacturer: BOE
Model Name: MV315QUM-N10
Screen Size: 32.0 inch
Screen Type: LCM, a-Si TFT-LCD
Pixel Number: 3840(RGB)×2160 (UHD) 139PPI
Arrangement: RGB Vertical Stripe
Active Area(mm): 697.306 × 392.234 (H×V)
Outline(mm): 709.4 × 412 × 15.2 (H×V×D)
Bezel Area(mm): -
Treatment: Antiglare (Haze 25%), Hard coating (3H)
Luminance: 350 cd/m² (Typ.)
Contrast Ratio: 1000 : 1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 14 (Typ.)(G to G) ms
Good View at: Symmetry
Work Mod: eADS, Normally Black, Transmissive
Color Depth: 1.07B 100% sRGB
Backlight: WLED , 30K hours , No Driver
Mass: 4.55Kgs (Typ.)
Used for: Desktop Monitor
Refresh Rate: 60Hz
Touchscreen: Without
Signal Type: eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector 30 pins
Voltage Supply: 10V (Typ.)
Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
