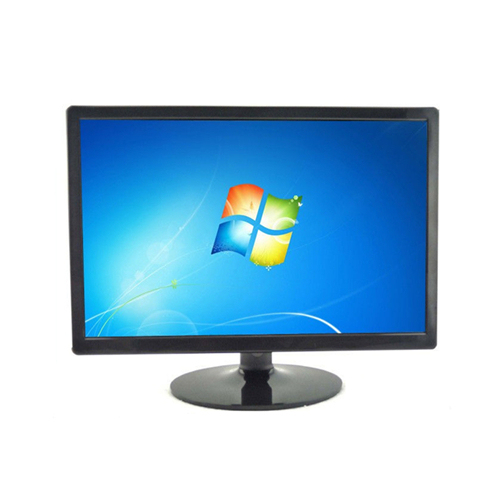

18.5 inch LCD monitor wall mount with touchscreen
Main Features
1. Custom design available without addtional cost.
2. Building 2*5W speakers
3. With HDMI, DVI, VGA input, Audio in/out
4. Touch screen option : Resistive, Capacitive, Infrared, SAW
5. With Android TV stick option
6. Easily build-in any kind of display rack
7. Accessories: use manual, power adapter
General Specification |
Panel size |
18.5 inch TFT-LCD |
Visual size |
409*230mm |
Standard Resolution |
1440*900 |
Number of Colors |
16.7M |
Brightness |
400cd/m2 |
Response time |
5ms |
View angle |
Horizontal:160°; Vertical:150° |
Contrase ratio |
1000:01:00 |
Video input format |
RGB |
Connector |
VGA |
Frequency |
30~80KHz/60~75Hz |
Power supply |
External |
Power Supply |
100 to 240V (DC 12V) |
Workable Temperature |
-10 to 60°C |
Storage temperature |
-20 to 70°C |
Operate relative |
humidity: 20% to 80%; |
storage relative humidity: 10% to 90% |
Net weight |
7.5 Kgs/pcs |
Gross weight |
8 Kgs/pcs |
Power consumption |
Max 30W |
Setup (optional) |
1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide base to support the monitor |
OSD control |
AUTO, +, POWER, -, MENU |
brightness,contrast ratio,auto adjustment, phase position, clock, Languages, function, Install, reset |
Certificate |
CE, RoHs, FCC |
Warranty |
1 year |
Monitor size |
380*308*55mm(not include base) |
Each unit box size |
436*139*429mm |
Package |
4pcs in a carton |
carton size |
650*450*420mm |
