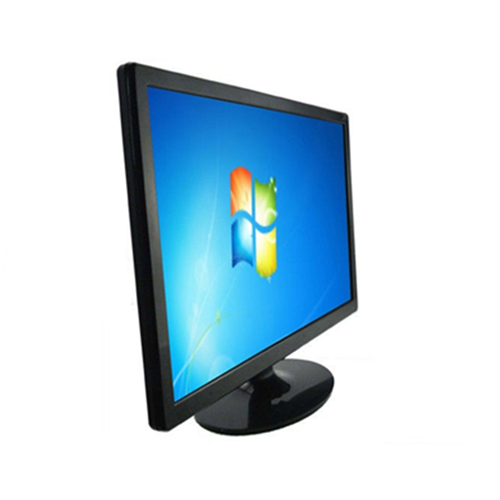

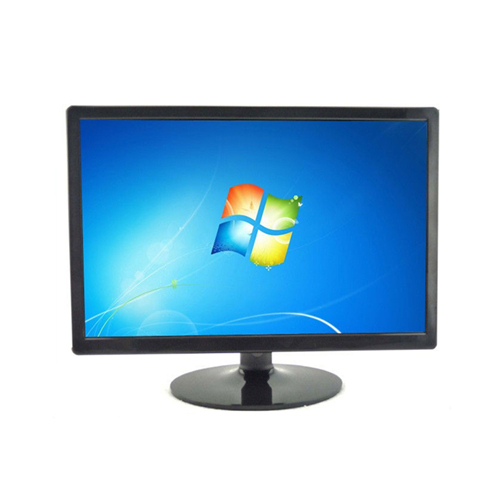

19 inch customized lcd monitor display

Item No.: 19 inch customized lcd monitor display
19 inch Square Screen 1280*1024 Computer LCD Monitor /Desktop LCD Monitor, 19 inch customized lcd monitor display
Description Review
Description

19 inch Square Screen 1280*1024 Computer LCD Monitor /Desktop LCD Monitor



  Description

1. Built with Standard VGA input (HDMI/AV/TV is optional)
2. Fully new LED/LCD panel, High contrast and brightness, wide viewing angle, which greatly improve the image layering
3. Built-in Speaker( optional)
4. Built with Standard VESA (75mm or 100mm) Sockets Mounts
5. Sample is avalible
6. Stable Quality


 General Specification
Panel size:    19-inch TFT-LCD
Standard Resolution:    1280*1024
Number of Colors:    16.7M
Brightness:    300cd/m2
Response time:     5ms
View angle:    Horizontal:160; Vertical:150
Contrase ratio:     1000:1
Video input format:    (analog) RGB
Connector:    VGA(AV/TV/HDMI optional)
Video input connection:    Mini D-Sub 15 Needles VGA
Frequency: 30~80KHz/60~75Hz
Power supply: DC 12V (100-240V AC 60/50Hz optional)
Power consumption:    Max 30W

Setup (optional)
1) provide wall brackets for wall-mounted,VESA 75mm&100mm
2) provide stable mental base to support the monitor

OSD  ontrol
AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position, clock,
Languages,function,Install,reset
