New 18.5 inches BOE DV185WHM-NM2 LCD module with HD resolution 1920x1080 for elevator ad display

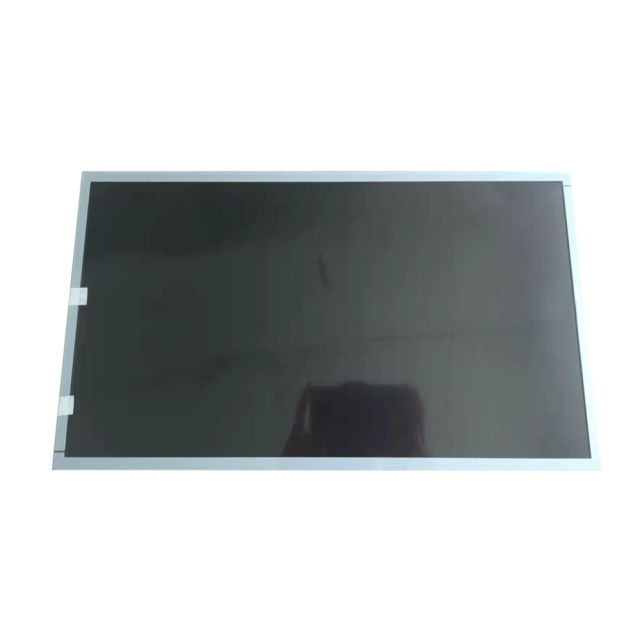

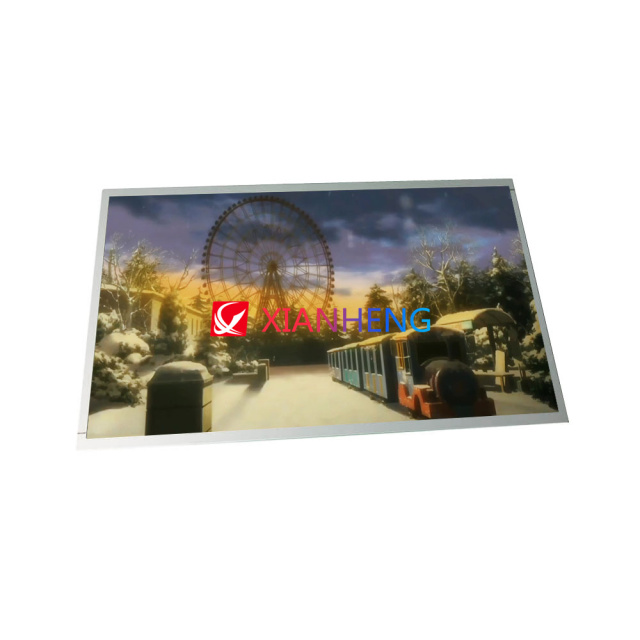

BOE Technology Group Co., Ltd. (hereafter called BOE) DV185WHM-NM2 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, Life ≥ 50K hours, Upside I/F, Matte . Based on its features, XIANHENG recommend that this model be applied to Digital Signage etc.
If you want to embed DV185WHM-NM2 LCM in your future product, we strongly recommend that you should contact with BOE or it's distributor XIANHENG to learn lateast production and specification detail.
Features
LVDS Interface with 1pixel / clock
High-speed response
6-bit(Hi-FRC) color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
ES 6.0 compliant
RoHS
Gamma Correction
Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controlle
| Brand |
BOE |
| Model P/N |
DV185WHM-NM2 |
| Diagonal Size |
18.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1366(RGB)×768, WXGA 84PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
409.8(W)×230.4(H) mm |
| Bezel Opening |
413.4(W)×234.0(H) mm |
| Outline Dim. |
430.4(W)×254.6(H)×11.4(D) mm |
| Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
| Luminance |
500 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| View Direction |
Symmetry |
| Response Time |
14 (Typ.)(G to G) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode |
ADS, Normally Black, Transmissive |
| Support Color |
16.7M 99% sRGB |
| Light Source |
WLED [6S4P] , 50K hours , W/O Driver |
| Weight |
1.30Kgs (Typ.) |
| Designed For |
Digital Signage |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply |
5.0V (Typ.) |
| Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
