DV320FHM-NN0 BOE 32 inch lcd display

Item No.: DV320FHM-NN0
DV320FHM-NN0 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C
Description Review
Description

DV320FHM-NN0 BOE original supply 32 inch a-Si TFT-LCD LCM with luminance 400 cd/m2 for digital signage use

DV320FHM-NN0 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: Landscape / Portrait, WLED Backlight, With LED Driver, Matte . Based on its features, we recommend that this model be applied to Digital Signage etc.

If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG to learn lateast production and specification detail of DV320FHM-NN0.

Features

LVDS interface with 2 pixel / clock

High-speed response

Low color shift image quality

8-bit color depth, display 16.7M colors

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only mode

ADSDS technology is applied for high display quality

RoHS compliant



Application

Home Alone Multimedia TFT-LCD TV

Display Terminals for Control System

High Definition TV(FHD TV)

AV application Products



General Specification

Brand:     BOE

Model:     DV320FHM-NN0

Diagonal Size:     32.0 inch

Type:     a-Si TFT-LCD, LCM

Pixel Format:     1920(RGB)×1080  [FHD]  69PPI

Configuration:     RGB Vertical Stripe

Active Area:     698.4(H)×392.85(V) mm

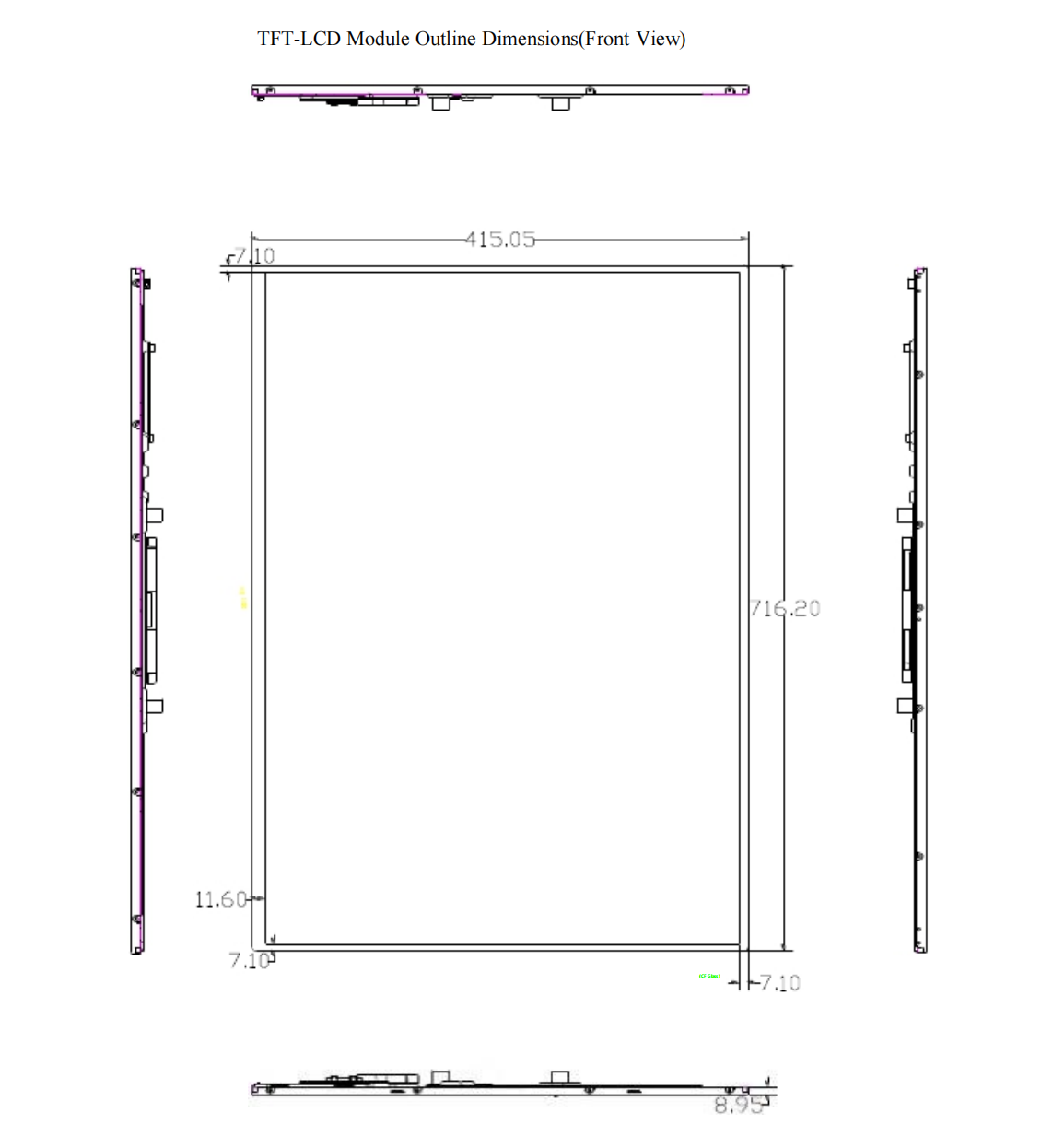

Outline Dim.:     716.2(H)×415.05(V) mm

Bezel Area:     -

Treatment:     Antiglare (Haze 1%)

Luminance:     400 cd/m² (Typ.)

Contrast Ratio:     1200:1 (Typ.) (TM)

View Direction:     Symmetry

Response Time:     8 (Typ.)(G to G)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     ADSDS, Normally Black, Transmissive

Support Color:     16.7M   72% NTSC

Light Source:     WLED , 30K hours , With LED Driver

Weight:     4.00Kgs (Typ.)

Designed For:     Digital Signage

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     LVDS (2 ch, 8-bit) , 51 pins Connector

Power Supply:     12.0V (Typ.)

Environment:     Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
