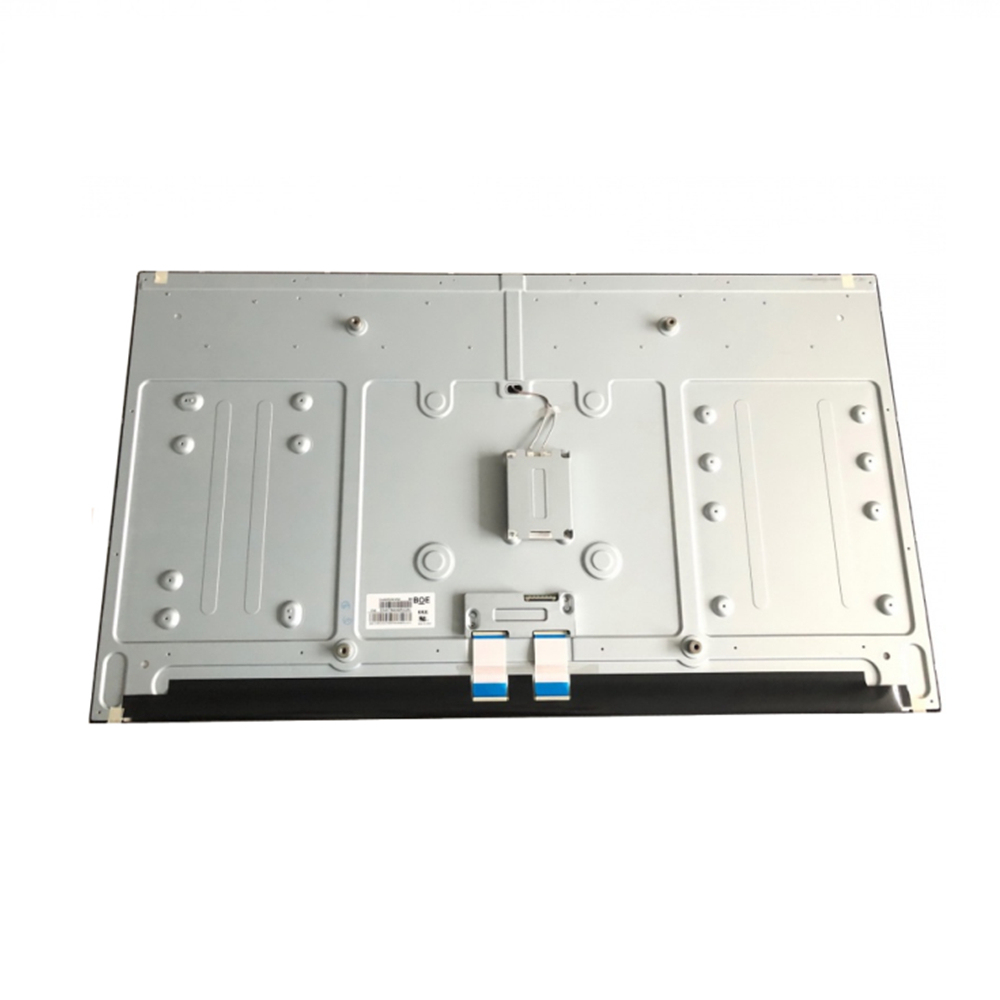

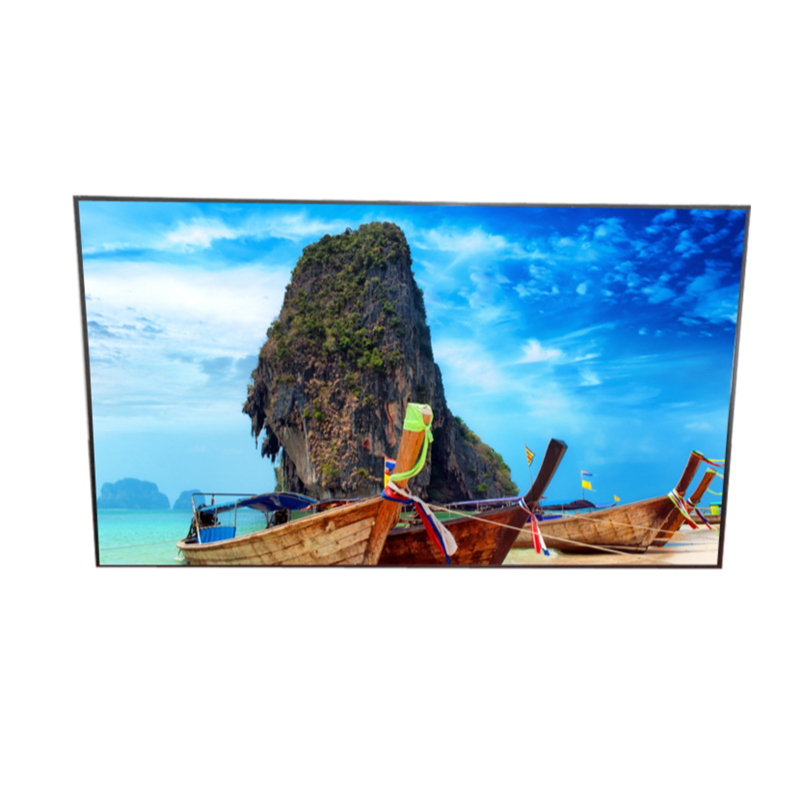

DV430FHM-NN1 BOE 43 inch lcd display

Item No.: DV430FHM-NN1
DV430FHM-NN0 is a color active matrix TFT LCD MDL using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This MDL has a 42.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel a
Description Review
Description

BOE original factory supply DV430FHM-NN1 43 inch LCM 43" LCD with luminance 400 nits use for digital signage display

The DV430FHM-NN1 is a 43 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte , Narrow bezel. Based on its features, we recommend that this model be applied to Digital Signage etc.

If you want to embed DV430FHM-NN1 LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail.

Features

LVDS interface with 2 pixel / clock

High-speed response

Low color shift image quality

8-bit color depth, display 16.7M colors

Narrow bezel and wide viewing angle,gate driver use GOA mode

DE (Data Enable) only mode

ADS technology is applied for high display quality

RoHS compliant



Application

Home Alone Multimedia TFT-LCD TV

Display Terminals for Control System

Ultra High Definition TV(UHD TV)

AV application Products



General Specification

Brand:     BOE

Model:     DV430FHM-NN1

Diagonal Size:     43 inch

Type:     a-Si TFT-LCD, LCM

Pixel Format:     1920(RGB)×1080  [FHD]  51PPI

Configuration:     RGB Vertical Stripe

Active Area:     940.896(H)×529.254(V) mm

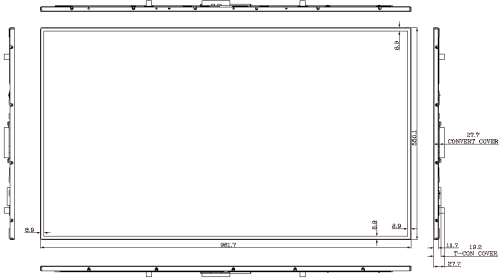

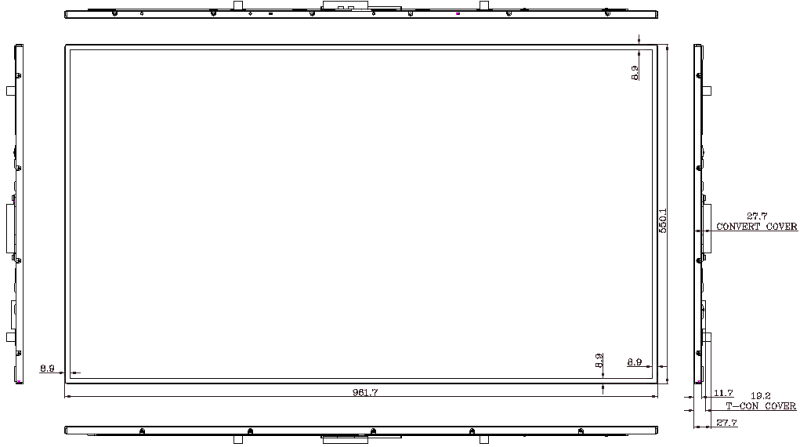

Outline Dim.:     961.7(H)×550.1(V) ×27.7(D) mm

Bezel Area:     -

Treatment:     Antiglare (Haze 1%), Hard coating (3H)

Luminance:     400 cd/m² (Typ.)

Contrast Ratio:     1200:1 (Typ.) (TM)

View Direction:     Symmetry

Response Time:     8 (Typ.)(G to G)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     ADS, Normally Black, Transmissive

Support Color:     16.7M   72% NTSC

Light Source:     WLED , 30K hours , With LED Driver

Weight:     8.36Kgs (Typ.)

Designed For:     Digital Signage

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     LVDS (2 ch, 8-bit) , 51 pins Connector

Power Supply:     12.0V (Typ.)

Environment:     Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
