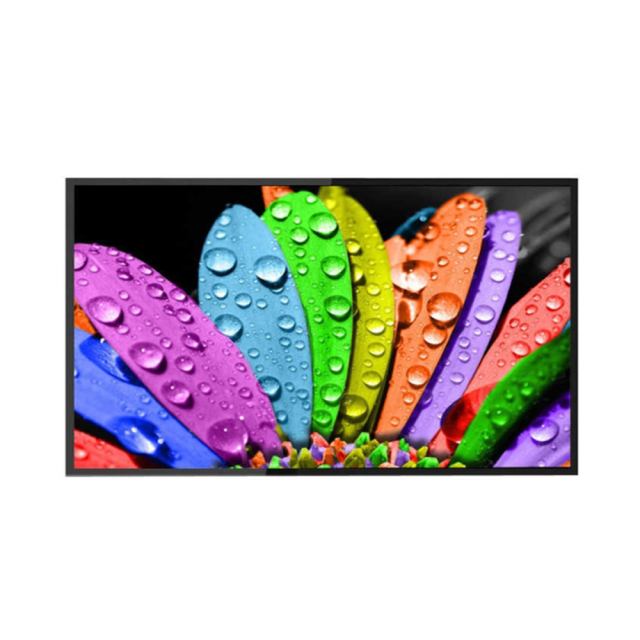

DV430QUM-N10 is a 43" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, With LED Driver, 10 bit, Matte . Based on its features, we recommend that this model be applied to Digital Signage etc.
If you want to embed the LCM in your future product, we strongly recommend that you should contact with BOE or XIANHENG TECH to learn lateast production and specification detail of DV430QUM-N10.
| Manufacturer | BOE |
| Model Name | DV430QUM-N10 |
| Screen Size | 43 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 3840(3)×2160 (UHD) 103PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 941.184 × 529.416 (H×V) |
| Outline(mm) | 961.7 × 550.1 × 27.7 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 1.07B 72% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | TBD |
| Used for | Digital Signage |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 8 lane , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
