Introducing the

Overview

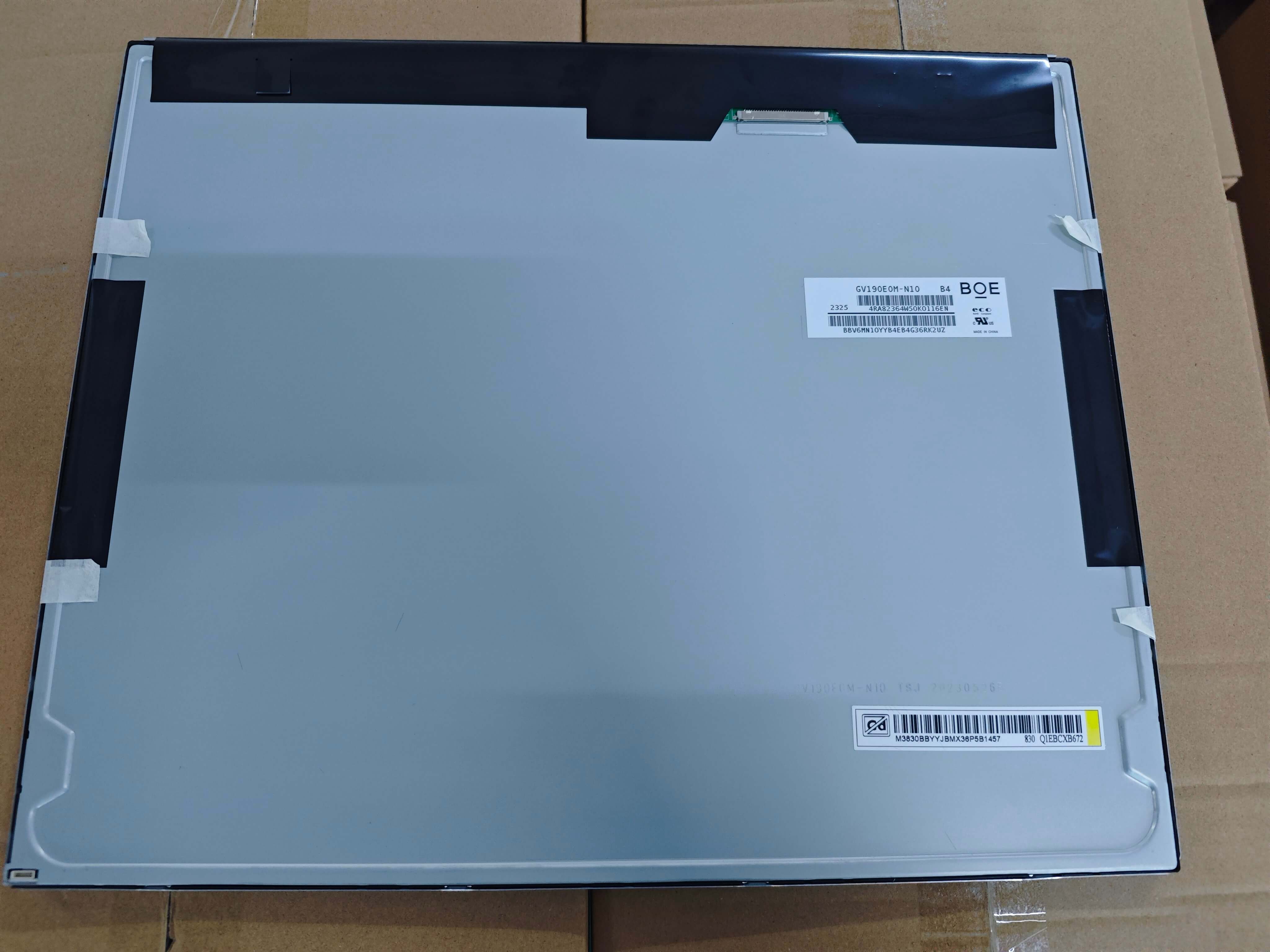

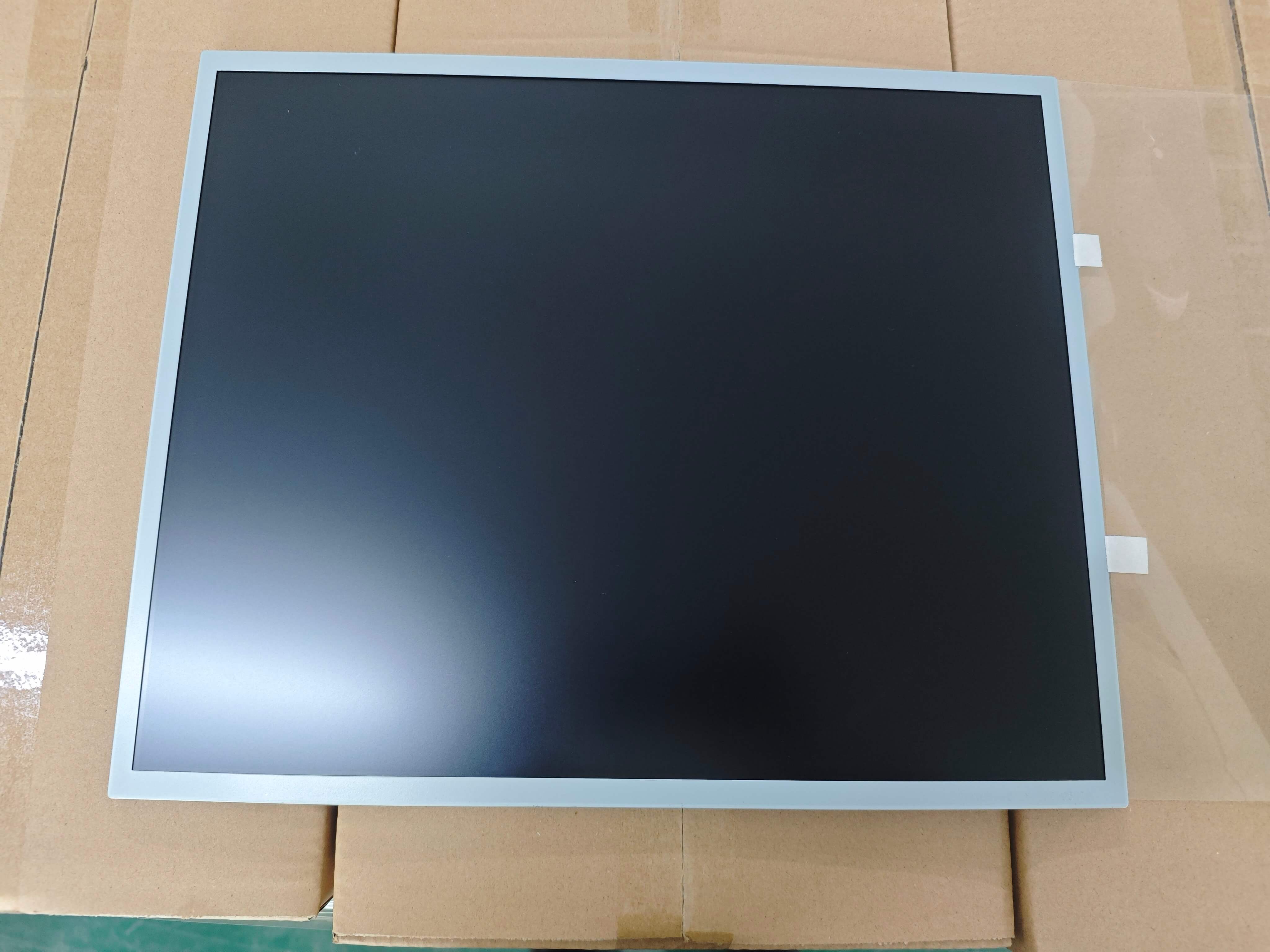

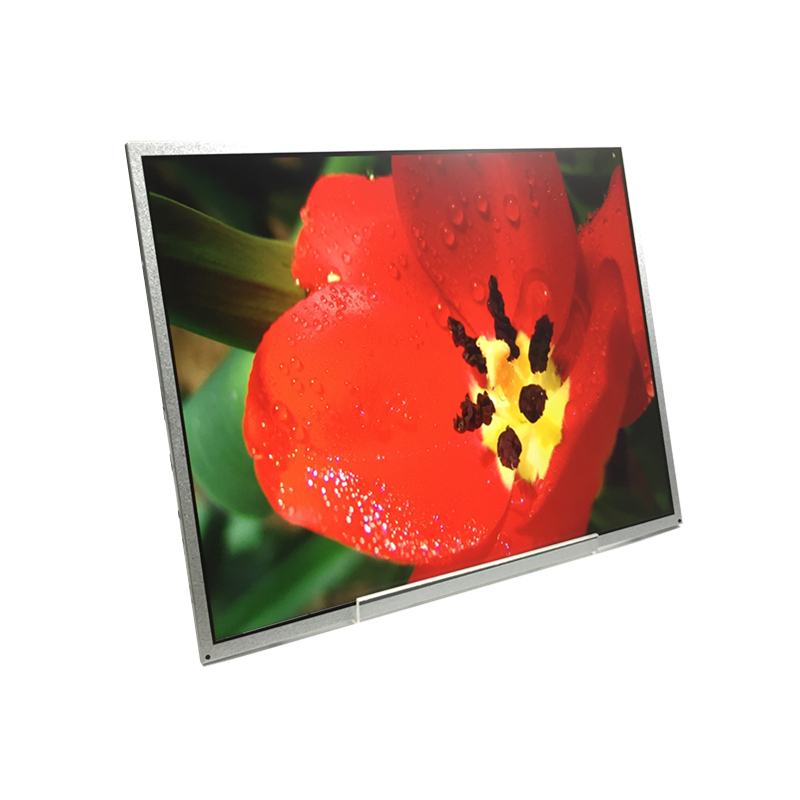

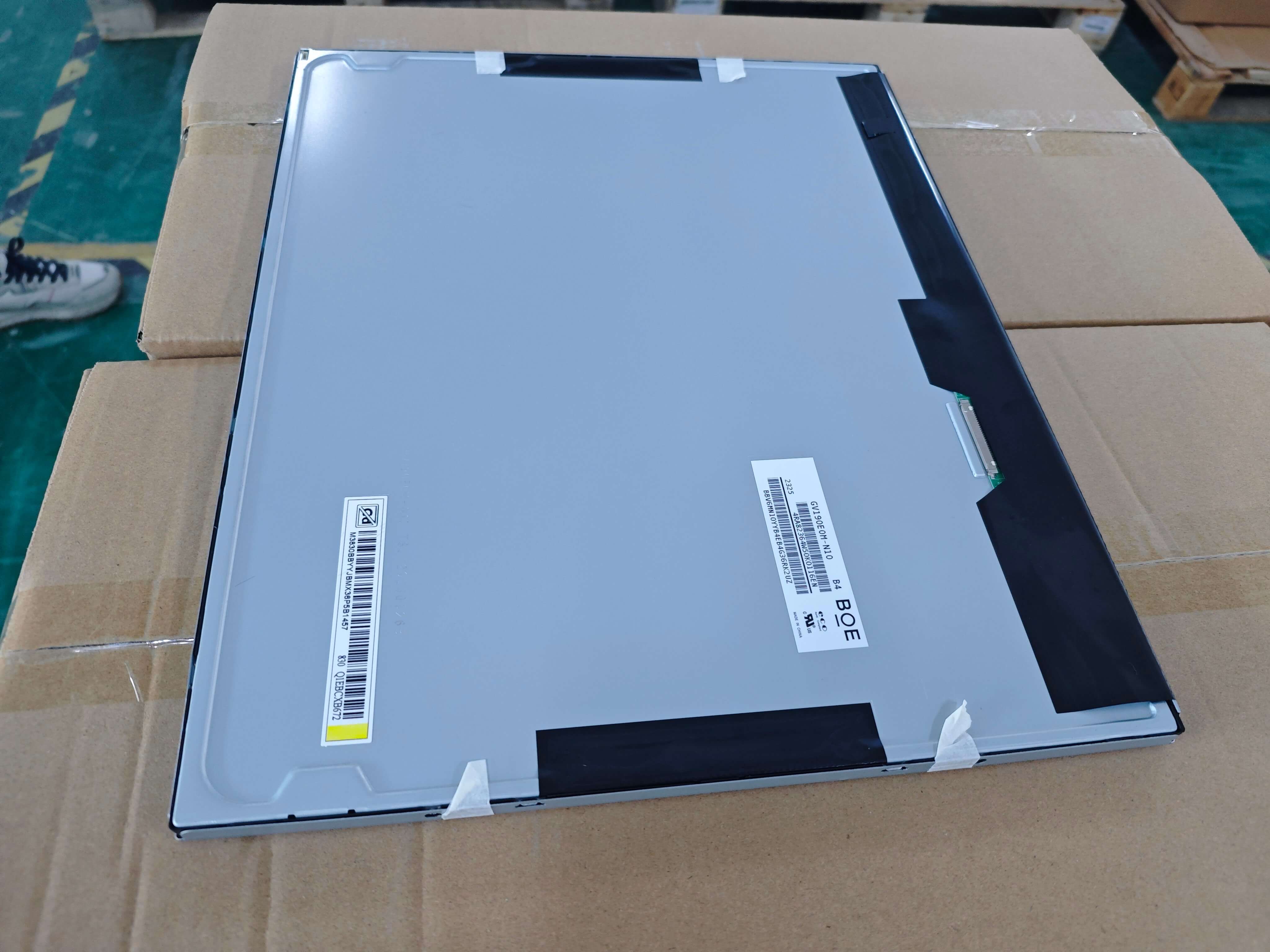

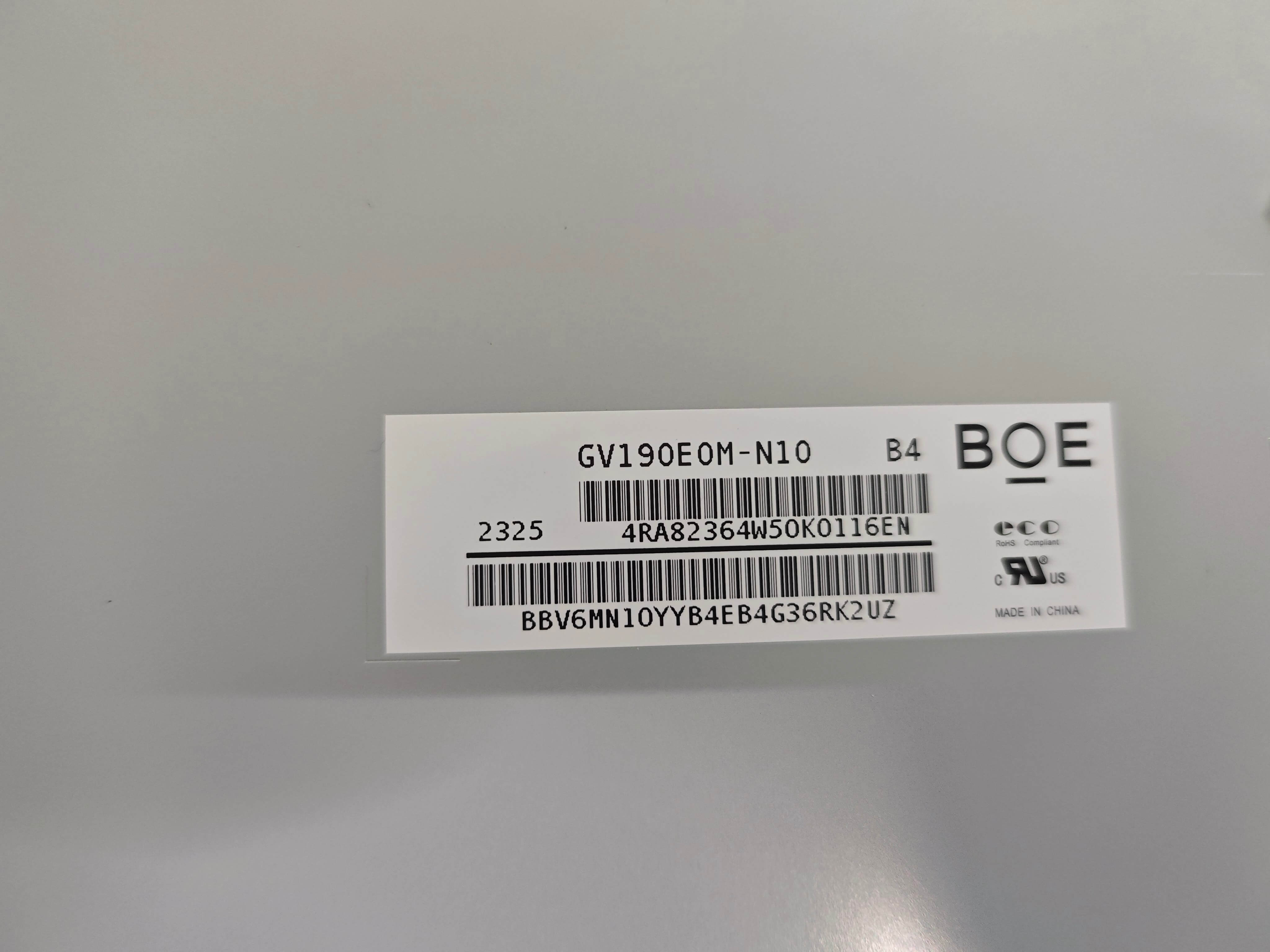

The GV190E0M-N10 is a state-of-the-art 19.0-inch diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. (BOE). This robust display panel features an integral WLED backlight system and is designed for industrial applications where reliability, durability high-quality visual performance are paramount. Below, we delve deeper into the features, specifications, and potential use cases of the GV190E0M-N10.

Key Features

1. Industrial-Grade Durability

• Operating Temperature Range: -10°C to 55°C
• Storage Temperature Range: -20°C to 60°C
• Maximal Vibration Level: 1.5G (.7 m/s²)

These specifications ensure that the GV190E0M-N10 can withstand harsh environmental conditions typical in industrial settings, making it an ideal choice for various applications.

2. Advanced Display Capabilities

• Resolution: 1280(RGB)×1024, SXGA (86PPI)
• Pixel Format: RGB Vertical Stripe
• Brightness: 400 cd/m² (Typ.) Contrast Ratio**: 1000:1 (Typ.)
• Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left/Right/Up/Down

The high resolution, brightness, and contrast ratio provide clear, vivid visuals, while the wide viewing angles ensure consistent image quality regardless of the viewing position.

3. Antiglare Surface Treatment

• Surface: Antiglare (Haze5%), Hard coating (3H)

The antiglare surface treatment reduces glare and reflections, making the display easier to read in bright environments. The hard coating provides additional durability, protecting the screen from scratches and abrasions.

4. Long-Lasting WLED Backlight

• Lamp Type: WLED, 50K hours (Without Driver)

The WLED backlight system offers a lifespan of at least 50,000 hours, ensuring long-term reliability and reducing the need for frequent replacements.

5. Compact and Versatile Design

• Panel Weight: 1.95 Kgs (Typ.)
• Outline Size: 396(W)×324(H) ×12.13(D) mm
• Signal Interface: LVDS (2 ch, 8-bit), 30 pins Connector
• Input Voltage: 5.0V (Typ.) The compact design and versatile signal interface make the GV190E0M-N10 easy to integrate into a wide range of industrial devices and systems.

Potential Use Cases

Industrial Machinery and Equipment

The GV190E0M-N10's robust design and high-quality display make it suitable for use in industrial machinery and equipment, where reliable and clear visuals are crucial for monitoring and control operations.

Automation Systems

Its compact versatile signal interface make it an excellent choice for integration into automation systems, providing real-time information and control functionality.

Medical Devices

The antiglare surface treatment and wide viewing angles make the GV190E0M-N10 suitable for use in medical devices, such as patient monitors and diagnostic equipment, ensuring clear and readable displays in various lighting conditions.

Inquiry and Collaboration

If you are interested in embedding the GV190E0M-N10 your future product, we strongly recommend contacting BOE or XIANHENG TECH to learn about the latest production and specification details. They can provide you with comprehensive support and customization options to meet your specific needs.
