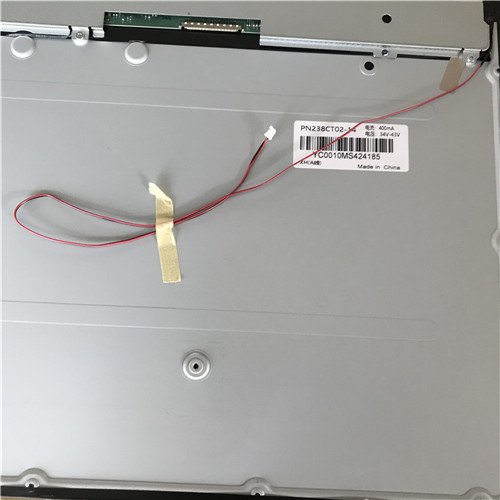

HKC PN238CT02-14 23.8 inch lcd display module

Item No.: PN238CT02-14
PN238CT02-14 is a 23.8" diagonal a-Si TFT-LCD display panel product with WLED backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
Description
PN238CT02-14 is a 23.8" diagonal a-Si TFT-LCD display panel product from Chongqing HKC Optoelectronics Technology Co., Ltd. (hereafter called HKC), with WLED backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . Based on its features, we recommend that this model be applied to Desktop Monitor etc.

If you want to embed the CELL in your future product, we strongly recommend that you should contact with XIANHENG to learn lateast production and specification detail of PN238CT02-14.

Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

General Specification
Brand    HKC
Model    PN238CT02-14
Diagonal Size    23.8 inch
Type    a-Si TFT-LCD, CELL
Pixel Format    1920(RGB)×1080  [FHD]  92PPI
Configuration    RGB Vertical Stripe
Active Area    527.04(H)×296.46(V) mm
Outline Dim.    534(H)×307.76(V) ×1.4(D) mm
Bezel Area    -
Treatment    Antiglare (Haze 25%), Hard coating (3H)
Luminance    250 cd/m²
Contrast Ratio    1200:1 (Typ.) (TM)
View Direction    Symmetry
Response Time    8 (Typ.)(G to G)
Viewing Angle    89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    FSA, Normally Black, Transmissive
Plate Thickness    0.50+0.50 mm
Support Color    16.7M   69% NTSC
Light Source    WLED
Designed For    Desktop Monitor
Frame Rate    60Hz
Touch Panel    Without
D-IC Detail    COF Built-in 6 source chips

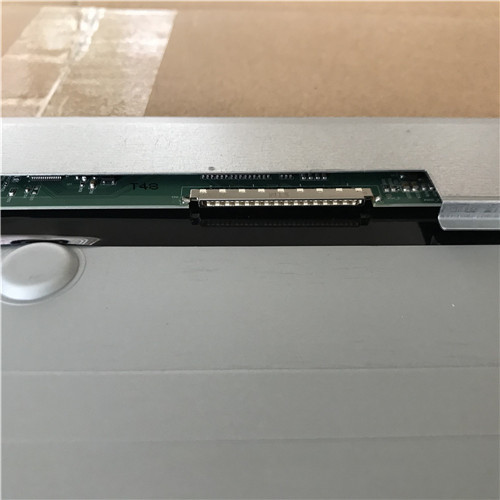

Interface Type    LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply    5.0V (Typ.)
Operating Temperature    0 ~ 50 °C
Storage Temperature     -20 ~ 60 °C
