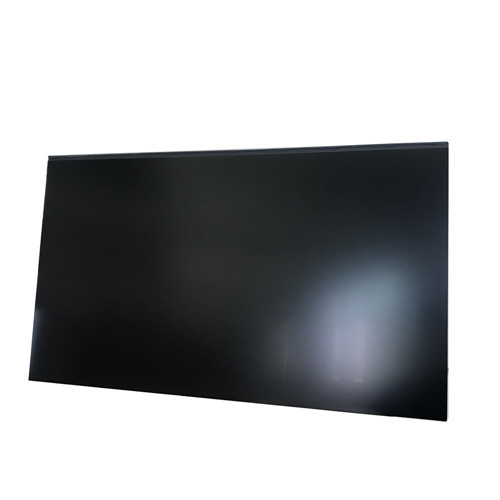

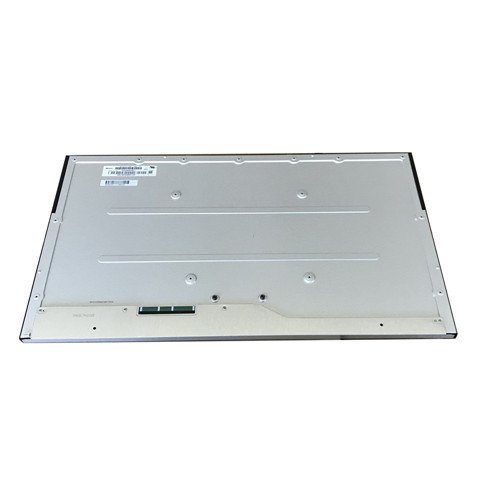

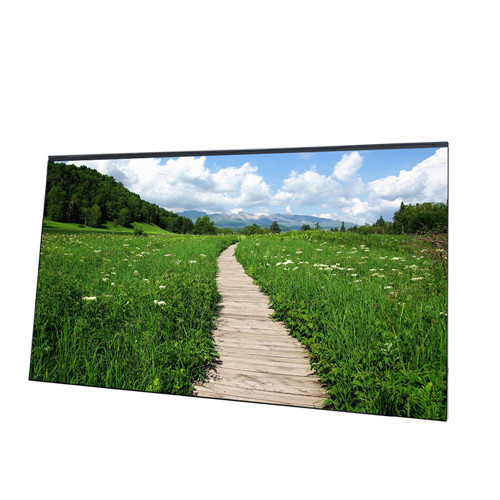

M270KCJ-L5B INNOLUX 27 inch 2K HD lcd display

Item No.: M270KCJ-L5B
Innolux M270KCJ-L5B is a 27.0 inch diagonal a-Si TFT-LCD display panel product, 2K HD resolution, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

Innolux M270KCJ-L5B is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It's general features are summarized in the following: DCI-P3, sRGB, WLED Backlight, Matte , TCO 7.0 Compliance. Based on its features, we recommend that this model be applied to Desktop Monitor etc.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .

If you want to embed M270KCJ-L5B LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.


General Specification

Panel Brand:     Innolux

Panel Model:     M270KCJ-L5B

Panel Size    :     27.0"

Panel Type:     a-Si TFT-LCD, LCM

Resolution:     2560(RGB)×1440, Quad-HD, 108PPI

Pixel Format:     RGB Vertical Stripe

Display Area:     596.736(W)×335.664(H) mm

Bezel Opening:     -

Outline Size:     608.8(W)×355.13(H) mm

Surface:     Antiglare (Haze 25%), Hard coating (3H)

Brightness:     350 cd/m² (Typ.)

Contrast Ratio:     1000:1 (Typ.) (TM)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode:     AAS, Normally Black, Transmissive

Best View on:     Symmetry

Response Time:     8/7 (Typ.)(Tr/Td)

Display Colors:     16.7M   95% DCI-P3

Lamp Type:     4 strings WLED , 30K hours , Without Driver

Frequency:     60Hz

Touch Screen:     Without

Panel Weight:     2.58/2.87/3.01g (Min./Typ./Max.)

Application:     Desktop Monitor

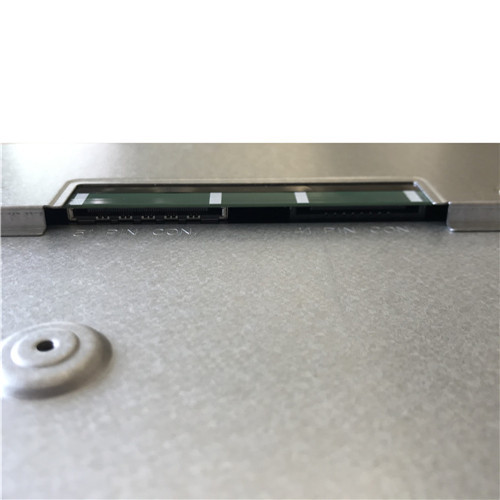

Signal Interface:     LVDS (4 ch, 8-bit) , 92 pins Connector

Input Voltage:     10.0V (Typ.)

Environment:     Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
