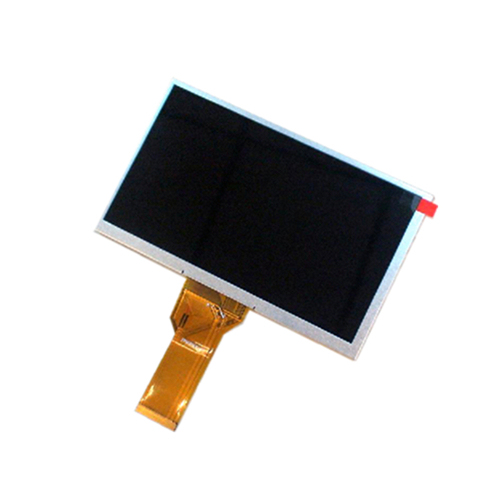

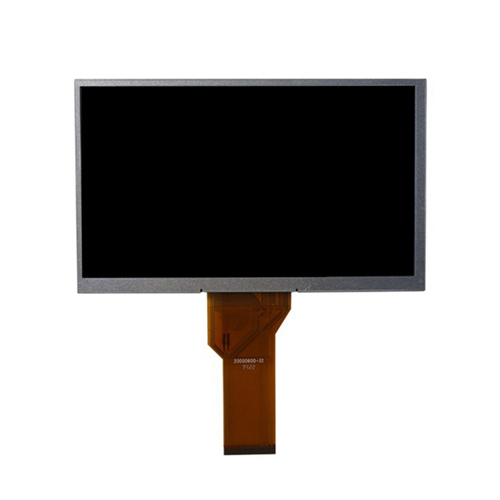

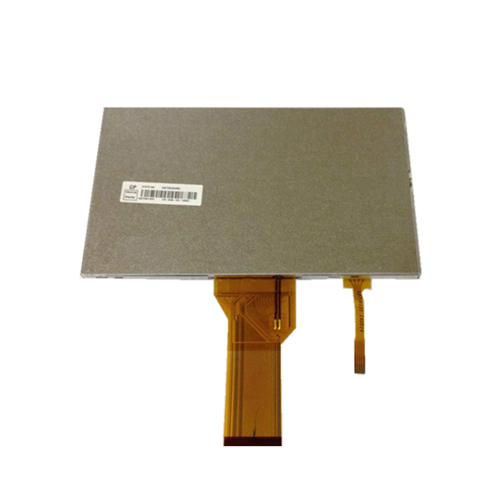

AT070TN94 innolux 7.0 inch screen TFT-LCD display module

Item No.: AT070TN94
AT070TN94 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description
AT070TN94 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Brand    INNOLUX
Model    AT070TN94
Compatible Model 1 Compatible
Diagonal Size    7.0 inch
Type    a-Si TFT-LCD , LCM
Pixel Format    800(RGB)×480   [WVGA]
Configuration    RGB Vertical Stripe
Active Area    154.08(H)×85.92(V) mm
Outline Dim.    164.9(H)×100(V) ×6(D) mm
Bezel Area    156.7(H)×89.1(V) mm
Treatment    Antiglare
Luminance    400 cd/m² (Typ.)
Contrast Ratio    500:1 (Typ.) (TM)
View Direction    6 o'clock
Response Time    10/15 (Typ.)(Tr/Td)
Viewing Angle    70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.7M   50% (CIE1931)
Light Source    WLED  [3S9P] , 20K hours , W/O Driver
Weight    150g (Typ.)
Designed For    Automotive Display  Portable DVD Player
Frame Rate    -
Touch Panel    Without
Interface Type    50 pins   Parallel RGB (1 ch, 6/8-bit) , FPC
Power Supply    3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment    Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
