AT070TN92 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

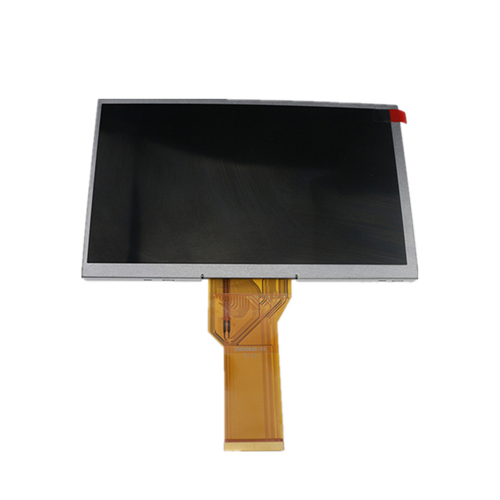

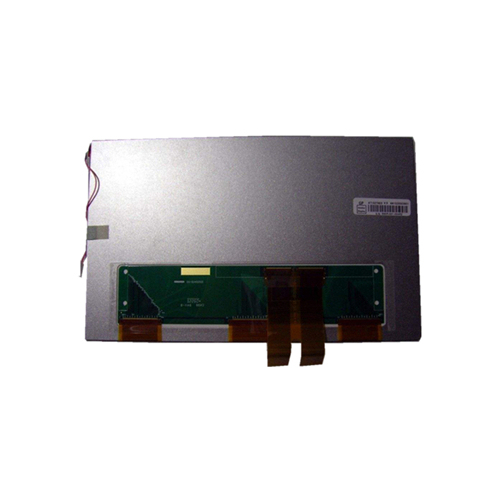

Innolux Corporation (hereafter called Innolux) AT070TN92 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte , DE/SYNC mode selectable, 2 in 1 FPC. Based on its features, XIANHENG recommend that this model be applied to Digital Photo Frame, Portable DVD Player, Video Door Phone, VOIP Phone etc.Built-in EK9713 + EK73002 driver IC.
If you want to embed AT070TN92 LCM in your future product, XIANHENG strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail.
| Brand |
Innolux |
| Model P/N |
AT070TN92 |
| Diagonal Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×480, WVGA 134PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
154.08(W)×85.92(H) mm |
| Bezel Opening |
156.7(W)×89.1(H) mm |
| Outline Size |
164.9(W)×100(H) ×6(D) mm |
| Surface |
Antiglare |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
10/15 (Typ.)(Tr/Td) |
| Display Colors |
262K/16.7M 50% NTSC |
| Lamp Type |
3S9P WLED , 20K hours , Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Panel Weight |
150g (Typ.) |
| Application |
Digital Photo Frame Portable DVD Player Video Door Phone VOIP Phone |
| Signal Interface |
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Input Voltage |
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
