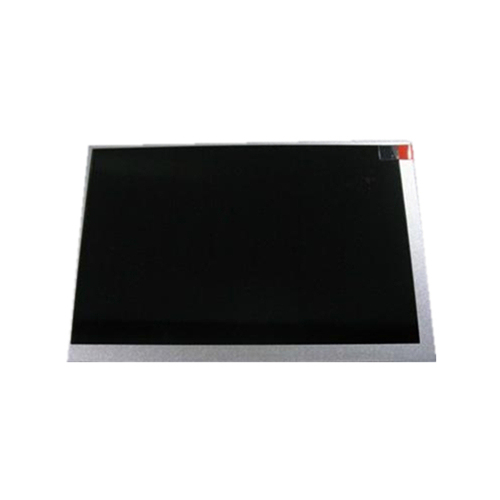

AT070TN83 V.1 innolux 7.0 inch screen TFT-LCD display module

Description Review

Description

AT070TN83 V.1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Innolux Corporation (hereafter called Innolux) AT070TN83 V.1 (Alias: AT070TN83 V1) is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: WLED Backlight, With LED Driver, U/D,L/R Reverse, Matte , SYNC & DE mode, 2 in 1 Connector. Based on its features, XIANHENG recommend that this model be applied to Digital Photo Frame, Portable DVD Player, MP3 PMP etc.

If you want to embed AT070TN83 V.1 LCM in your future product, XIANHENG strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail.

Brand	Innolux
Model P/N	AT070TN83 V.1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.3(W)×94.3(H) mm
Outline(mm)	165 × 104 × 5.8 (H×V×D)
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	WLED , 20K hours , With LED Driver
Mass	130g (Typ.)
Used for	Digital Photo Frame Portable DVD Player MP3 PMP
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TTL (1 ch, 6-bit) , 40 pins Connector
Voltage Supply	3.3V (Typ.)(VCC)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
