G104X1-L03 is one of the best-selling products we sell, widely used in industrial, commercial, medical, and other industries, well received by customers around the world.

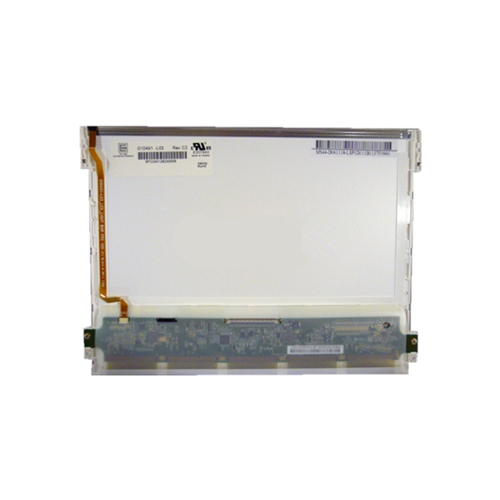

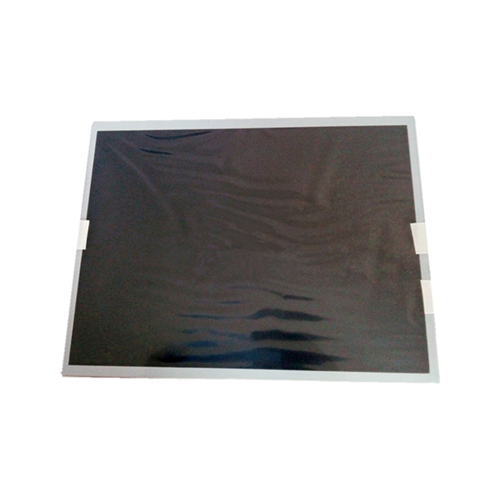

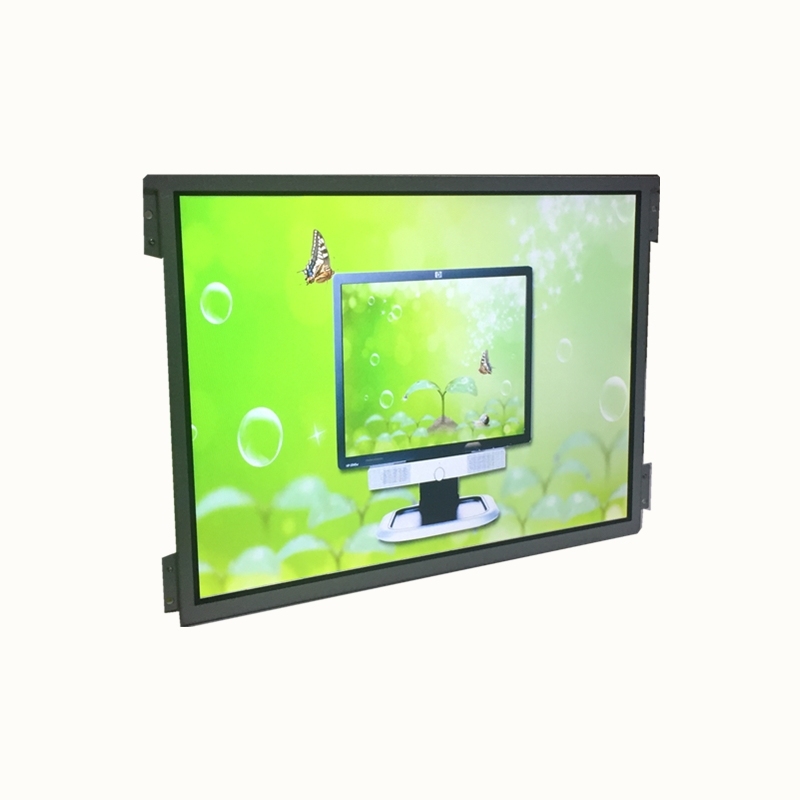

G104X1-L03 is a 10.4" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, 180° Reverse, 6/8 bit, Matte , Digitizer compitable. Based on its features, XIANHENG recommend that this model be applied to Industrial etc.
If you want to embed the LCM in your future product, XIANHENG strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail of G104X1-L03.
| Brand | Innolux |
| Model P/N | G104X1-L03 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Size | 238.6(W)×175.8(H)×7.97(D) mm |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 262K/16.2M 53% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 280g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
