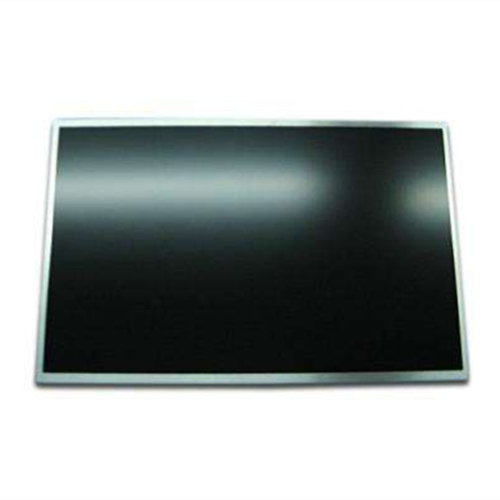

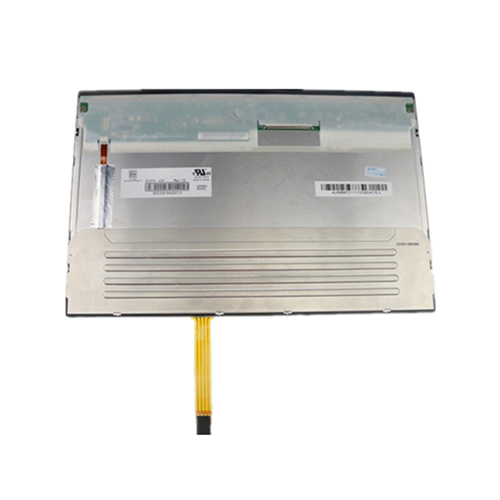

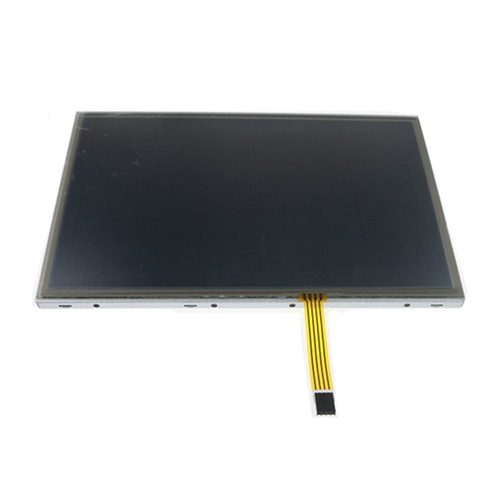

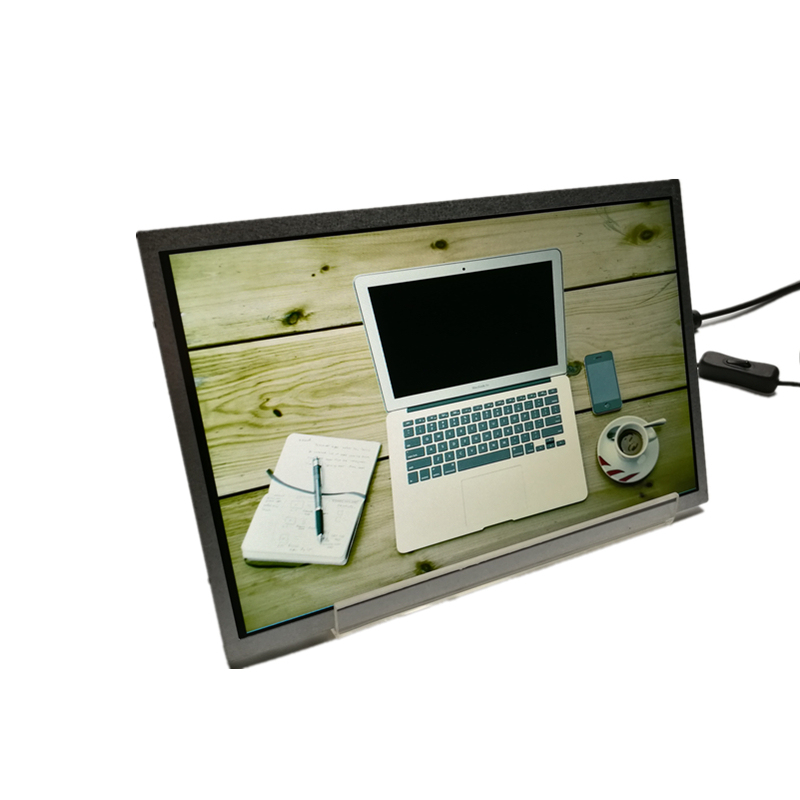

G121I1-L01 innolux 12.1 inch screen TFT-LCD display module

No.G121I1-L01

G121I1-L01 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

GET A QUOTE

Description

G121I1-L01 is one of the best-selling products we sell, widely used in industrial, commercial, medical, and other industries, well received by customers around the world.

Innolux Corporation (hereafter called Innolux) G121I1-L01 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte , Replaceable LED. Based on its features, XIANHENG recommend that this model be applied to Industrial etc.

If you want to embed G121I1-L01 LCM in your future product, XIANHENG strongly recommend that you should contact with Innolux or its distributor to learn lateast production and specification detail.

Brand	Innolux
Model P/N	G121I1-L01
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 124PPI
Pixel Format	RGB Vertical Stripe
Active Area	261.12(W)×163.2(H) mm
Bezel Opening	265.10(W)×167.20(H) mm
Outline Dim.	278(H)×184(V) ×10.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/10 (Typ.)(Tr/Tf)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode	MVA, Normally Black, Transmissive
Support Color	262K/16.2M 45% NTSC
Light Source	WLED [9S3P] , 50K hours , With LED Driver
Weight	455g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
