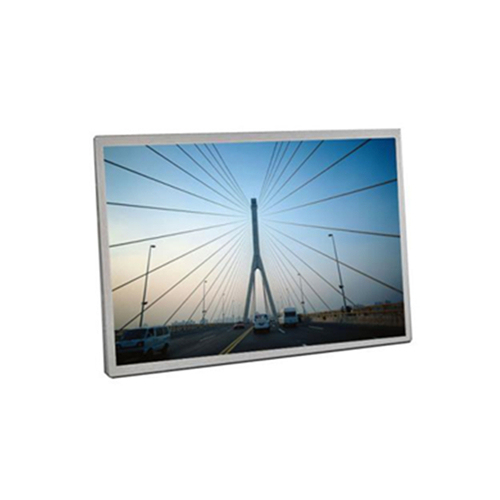

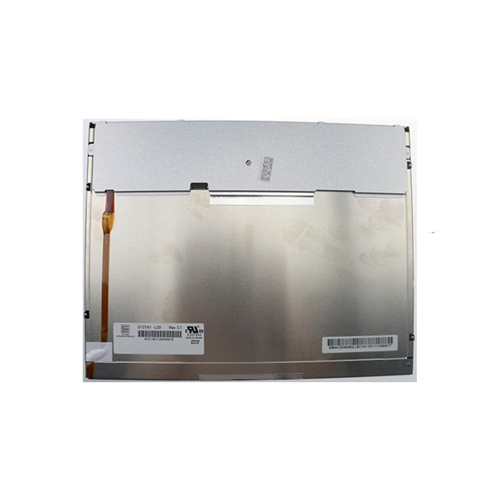

G121X1-L03 innolux 12.1 inch screen TFT-LCD display module

Name: G121X1-L03 innolux 12.1 inch screen TFT-LCD display module
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: G121X1-L03
Availability: InStock
Rating: 5 (1 reviews)

Item No.: G121X1-L03

G121X1-L03 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

INQUIRY PDF Format

Description

G121X1-L03 is one of the best-selling products we sell, widely used in industrial, commercial, medical, and other industries, well received by customers around the world.

General Specification

Panel Brand   CMO
Panel Size   12.1 inch
Panel Model   G121X1-L03
Panel Type   a-Si TFT-LCD, LCM
Resolution   1024(RGB)×768, XGA
Display Area   245.76(W)×184.32(H) mm
Outline Size   260.5(W)×204(H) ×8.9(D) mm
Brightness   600 cd/m² (Typ.)
Viewing Angle   80/80/70/70 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on   -
Display Colors   262K/16.2M
Frequency   60Hz
Weight   510/540g (Typ./Max.)
Pixel Format   RGB Vertical Stripe
Bezel Opening   249.0(W)×187.5(H) mm
Surface   Glare (Haze 0%), Hard coating (3H)
Contrast Ratio   700:1 (Typ.) (TM)
Display Mode   TN, Normally White, Transmissive
Response Time   5/11 (Typ.)(Tr/Td)
Lamp Type   WLED, 50K hours, Embedded (LED Driver)
Touch Screen   Without
Application   Automotive Display, Game Machine, Industrial Application
Signal Interface   LVDS (1 ch, 6/8-bit), 20 pins, Connector
Input Voltage   3.3/5.0V (Typ.)(VCC)
Environment   Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C

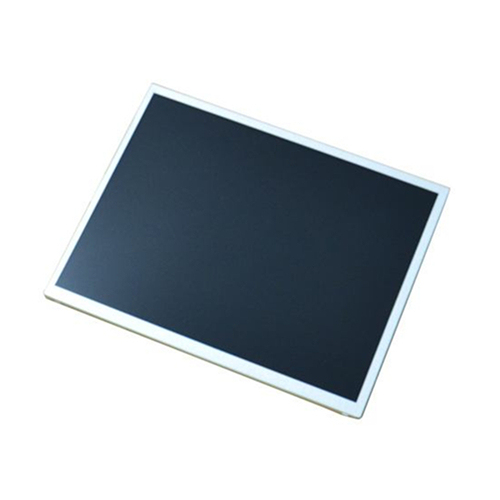

G121X1-L03 innolux 12.1 inch screen TFT-LCD display module
