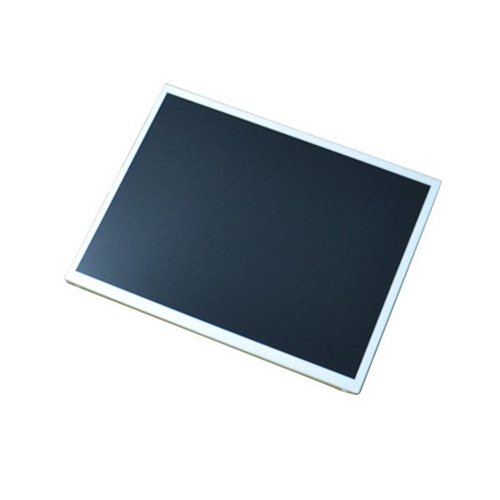

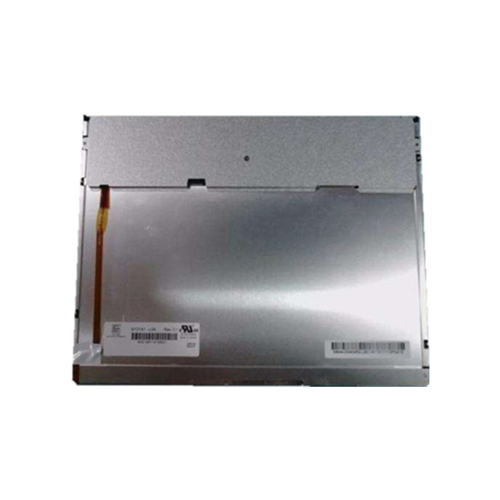

G121X1-L04 innolux 12.1 inch screen TFT-LCD display module

Item No.: G121X1-L04
G121X1-L04 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G121X1-L04 is one of the best-selling products we sell, widely used in industrial, commercial, medical, and other industries, well received by customers around the world.

General Specification

Panel Brand    CMO

Panel Model    G121X1-L04

Panel Size    12.1 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1024(RGB)×768 , XGA

Pixel Format    RGB Vertical Stripe

Display Area    45.76(W)×184.32(H) mm

Bezel Opening    249.0(W)×187.5(H) mm

Outline Size    260.5(W)×204(H) ×7.7(D) mm

Surface    Antiglare, Hard coating (3H)

Brightness    500 cd/m² (Typ.)

Contrast Ratio    700:1 (Typ.) (TM)

Viewing Angle    80/80/70/70 (Typ.)(CR≥10) Left/Right/Up/Down

Display Mode    TN, Normally White, Transmissive

Response Time    5/11 (Typ.)(Tr/Td)

Display Colors    262K/16.2M   63% (CIE1931) Lamp Type WLED , 30K hours , Embedded (LED Driver)

Frequency    60Hz

Touch Screen    Without

Panel Weight    435/465g (Typ./Max.)

Application    Automotive Display  Industrial Application

Signal Interface    LVDS (1 ch, 6/8-bit) , 20 pins , Connector

Input Voltage    3.3/5.0V (Typ.)

Environment    Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C
