INNOLULX 13.3 inch lcd

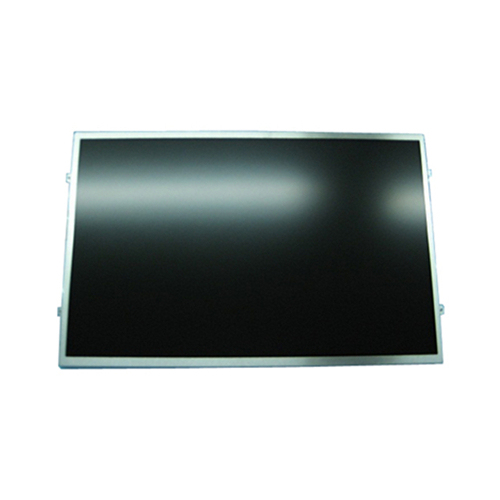

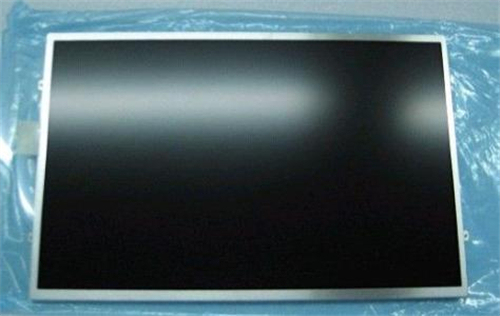

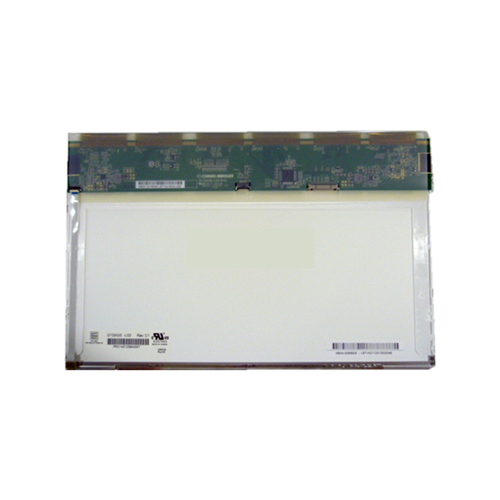

G133IGE-L03 innolux 13.3 inch screen TFT-LCD display module
Item No.: G133IGE-L03
G133IGE-L03 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description
G133IGE-L03 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Brand CHIMEI INNOLUX
Diagonal Size 13.3 inch
Model G133IGE-L03
Type a-Si TFT-LCD , LCM
Pixel Format 1280(RGB)×800 [WXGA]
Active Area 286.08(H)×178.8(V) mm
Bezel Area 289.1(H)×181.8(V) mm
Luminance 500 cd/m² (Typ.)
View Direction 6 o'clock
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color 262K/16.2M 43% (CIE1931)
Weight 382/397g (Typ./Max.)
Frame Rate 60Hz
Configuration RGB Vertical Stripe
Outline Dim. 299(H)×195(V) ×8.2(D) mm
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 800:1 (Typ.) (TM)
Response Time 6/10 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED , 30K hours , Embedded (LED Driver)
Designed For Industrial Application
Touch Panel Without
Interface Type 20 pins LVDS (1 ch, 6/8-bit) , Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
