INNOLULX 15.0 inch lcd

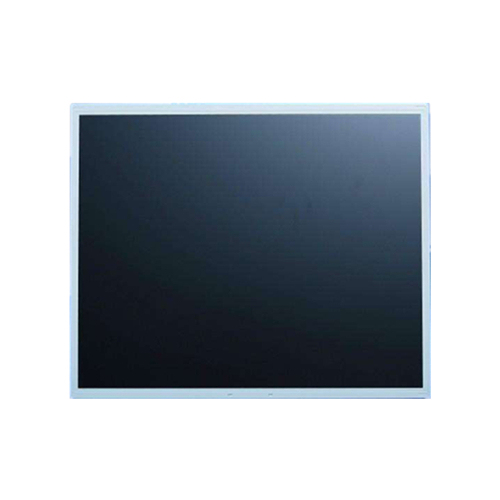

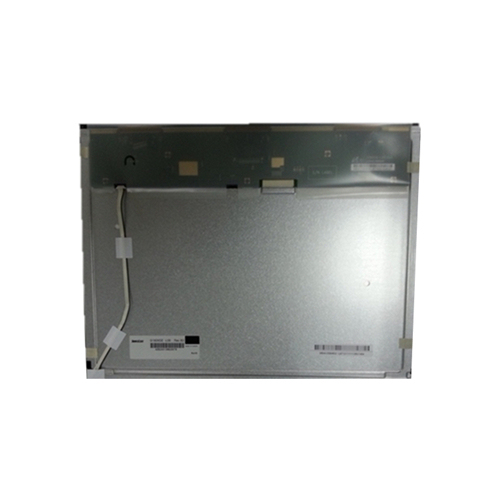

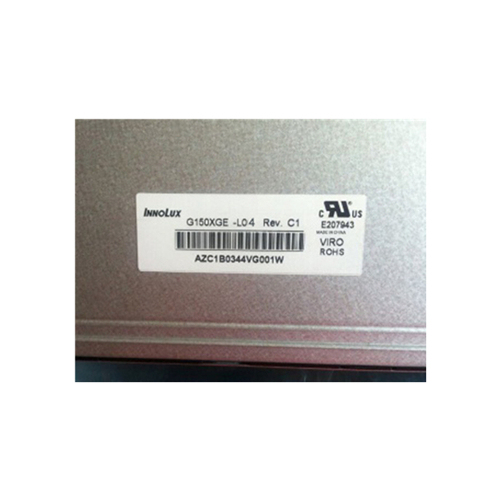

G150XGE-L04 innolux 15.0 inch screen TFT-LCD display module

Item No.: G150XGE-L04
G150XGE-L04 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description
G150XGE-L04 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
 General Specification
Brand    CHIMEI INNOLUX
Diagonal Size    15.0 inch
Model    G150XGE-L04
Type    a-Si TFT-LCD , LCM
Pixel Format    1024(RGB)×768   [XGA]
Active Area    304.128(H)×228.096(V) mm
Bezel Area    307.4(H)×231.3(V) mm
Luminance    400 cd/m² (Typ.)
Viewing Angle    80/80/70/70 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color    262K/16.2M   55% (CIE1931)
Weight    835g (Typ.)
Frame Rate    60Hz
Outline Dim.    RGB Vertical Stripe
Treatment    326.5(H)×253.5(V) ×12(D) mm
Contrast Ratio    Antiglare (Haze 25%), Hard coating (3H)
Response Time    700:1 (Typ.) (TM)
Operating Mode    8/17 (Typ.)(Tr/Td)
Light Source    TN, Normally White, Transmissive
Designed For    Industrial Application
Touch Panel    Without
nterface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C
