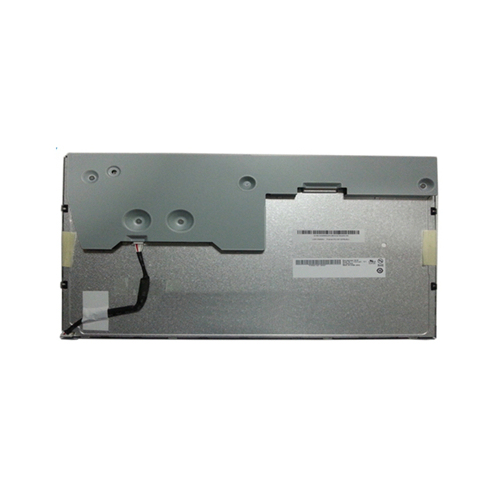

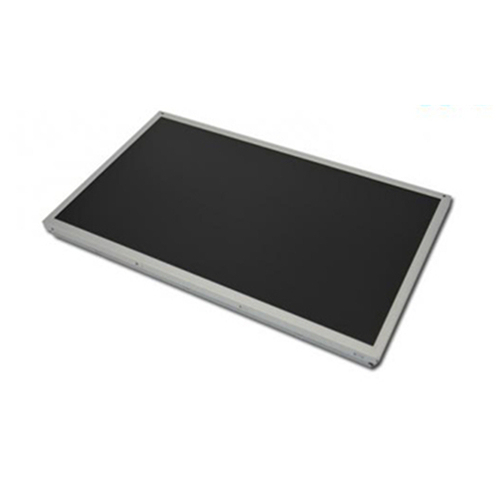

G156BGE-L01 innolux 15.6 inch screen TFT-LCD display module

Description Review

Description

G156BGE-L01 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

G156BGE-L01 is a 15.6" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features, XIANHENG recommend that this model be applied to Industrial etc.

If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with Innolux or XIANHENG to learn lateast production and specification detail of G156BGE-L01.

Brand	Innolux
Model P/N	G156BGE-L01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.53(W)×196.84(H) mm
Outline (mm)	363.8×215.92×17.35 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Response	3/7 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 65% NTSC
Backlight	WLED , 50K hours , With LED Driver
Mass	1.19/1.25Kgs (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) , Connector 30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C
