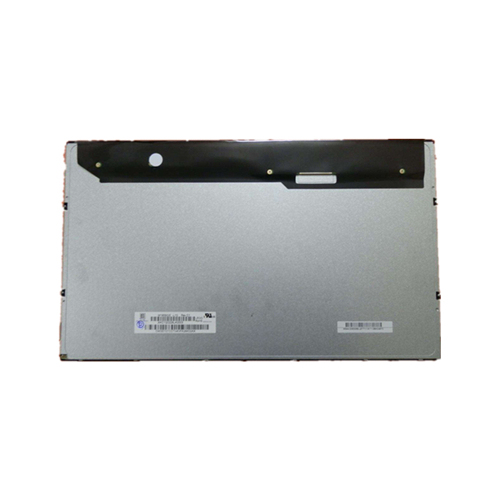

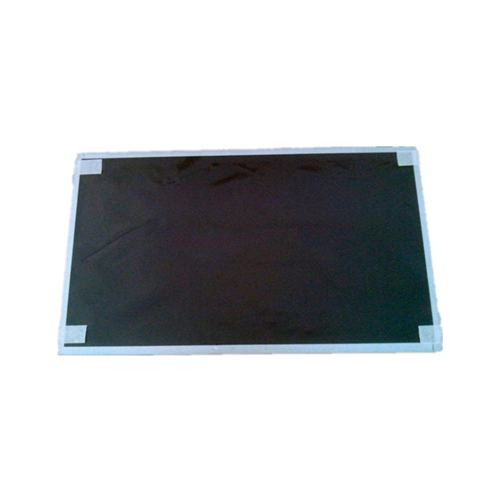

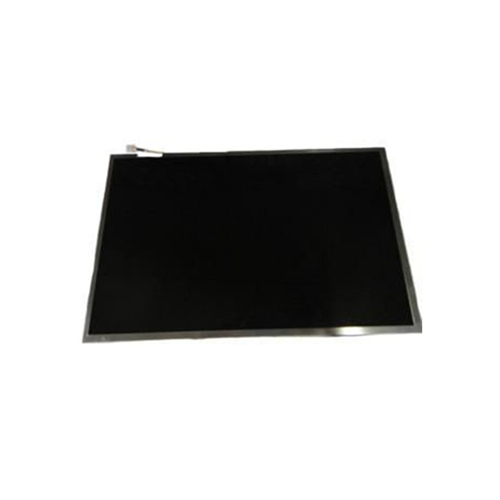

M185BGE-L23 innolux 18.5 inch screen TFT-LCD display module

Item No.: M185BGE-L23
M185BGE-L23 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

M185BGE-L23 is one of the best-selling products we sell, widely used in industrial, commercial, medical, and other industries, well received by customers around the world.

General Specification

Panel Brand    CHIMEI INNOLUX

Panel Model    M185BGE-L23

Panel Size    18.5 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1366(RGB)×768, WXGA

Pixel Format    RGB Vertical Stripe

Display Area    409.8(W)×230.4(H) mm

Bezel Opening    413.4(W)×234.0(H) mm

Outline Size    430.37(W)×254.6(H) ×11(D) mm

Surface    Antiglare (Haze 25%), Hard coating (3H)

Brightness    200 cd/m² (Typ.)

Contrast Ratio    700:1 (Typ.) (TM)

Viewing Angle    45/45/20/45 (Typ.)(CR≥10)Left/Right/Up/Down

Display Mode    TN, Normally White, Transmissive

Best View on    6 o'clock

Response Time    1.5/3.5 (Typ.)(Tr/Td)

Display Colors    16.7M   72% (CIE1931)

Lamp Type    8S4P WLED, 40K hours, Without Driver

Frequency    60Hz

Touch Screen    Without

Panel Weight    1.45/1.50Kgs (Typ./Max.)

Application    Desktop Monitor

Signal Interface    LVDS (1 ch, 8-bit), 30 pins, Connector

Input Voltage    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
