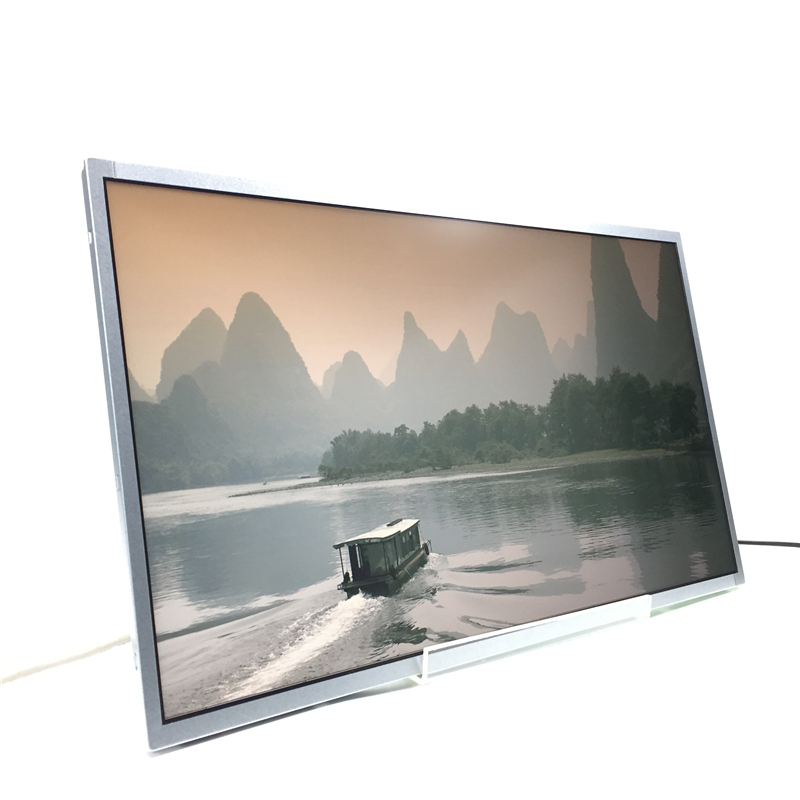

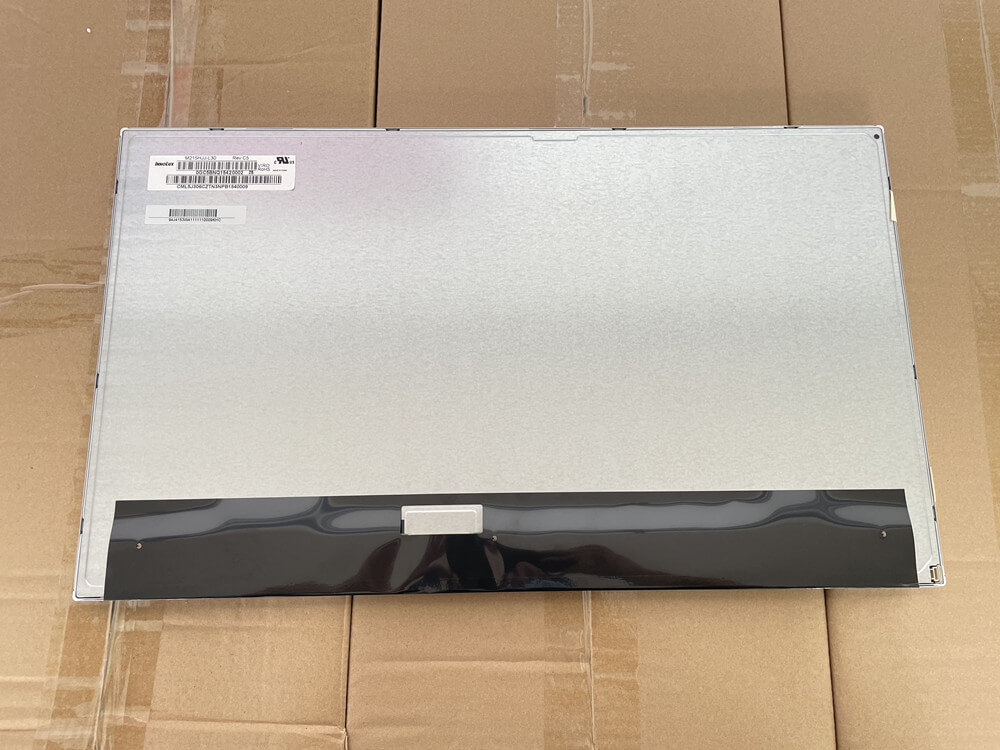

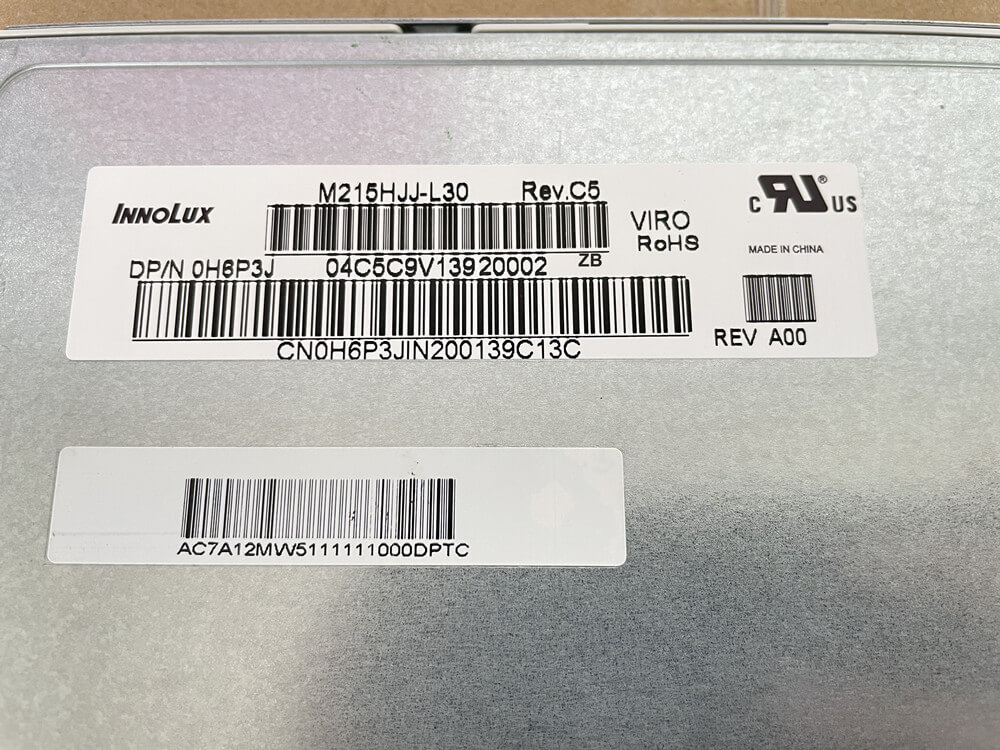

M215HJJ-L30 C5 innolux original A grade 21.5 inch screen TFT-LCD display module

No.M215HJJ-L30 C5
M215HJJ-L30 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Price:
USD$52-USD$55
  • M215HJJ-L30 C5 innolux original A grade 21.5 inch screen TFT-LCD display module
  • M215HJJ-L30 C5 innolux original A grade 21.5 inch screen TFT-LCD display module
  • M215HJJ-L30 C5 innolux original A grade 21.5 inch screen TFT-LCD display module
  • M215HJJ-L30 C5 innolux original A grade 21.5 inch screen TFT-LCD display module

Description

M215HJJ-L30 innolux is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Manufacturer Innolux
Model Name M215HJJ-L30
Screen Size 21.5 inch
Screen Type LCM,   a-Si TFT-LCD
Pixel Number 1920(RGB)×1080   (FHD)
Arrangement RGB Vertical Stripe
Active Area(mm) 476.064 × 267.786 (H×V)
Outline(mm) 495.6 × 292.2 × 11.5 (H×V×D)
Bezel Area(mm) 479.84 × 271.3 (H×V)
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 3000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 20/5 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode MVA, Normally Black, Transmissive
Color Depth 16.7M   72% (CIE1931)
Backlight 4 strings WLED , 40K hours , No Driver
Mass 1.91/2.10Kgs (Typ./Max.)
Used for Desktop Monitor
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (2 ch, 8-bit) , Connector , 30 pins
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
