M220ZGE-L20 innolux is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

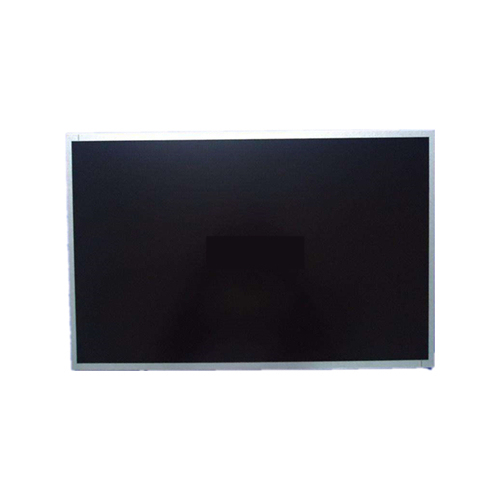

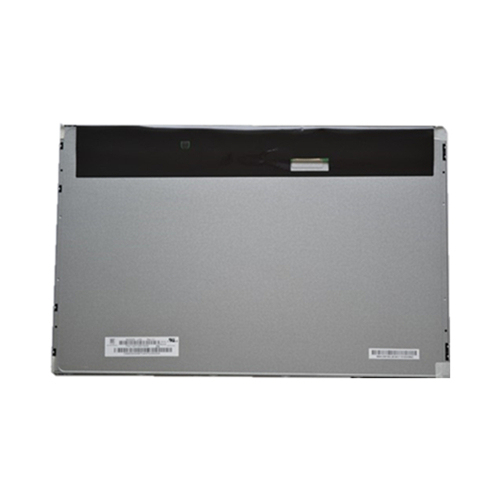

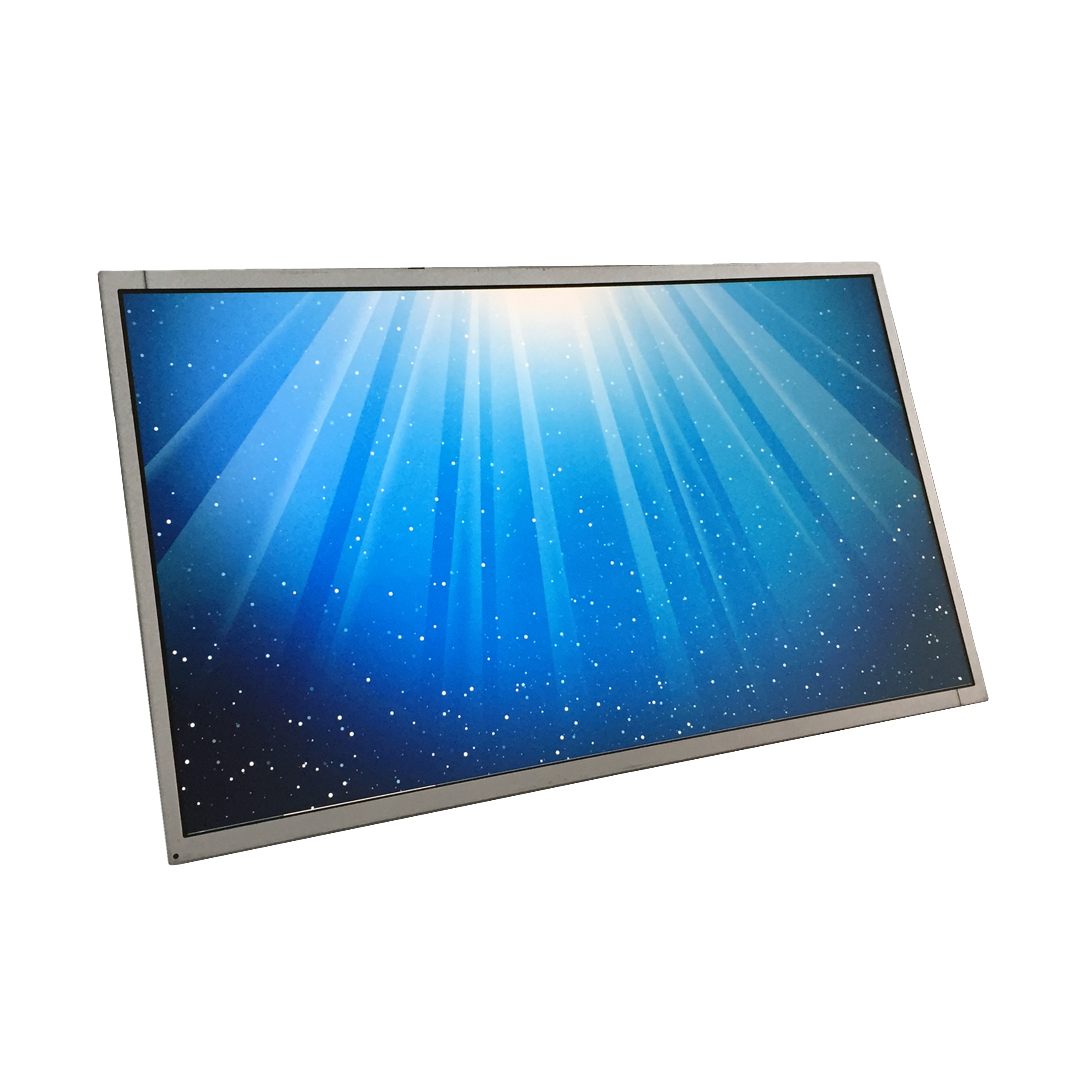

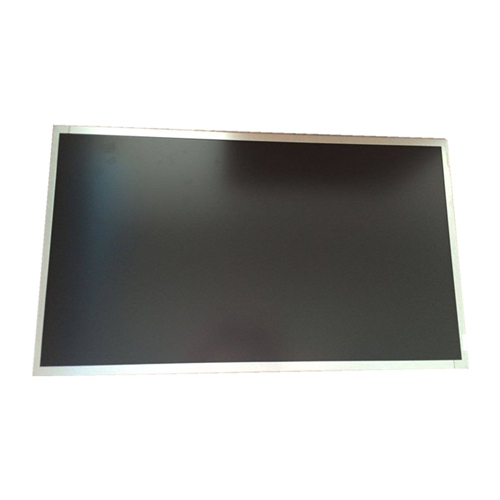

The M220ZGE-L20 is a 22.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C. It's general features are summarized in the following: sRGB, WLED Backlight, Upside I/F, Matte , Energy Star 7.0 Compliance. Based on its features, we recommend that this model be applied to Desktop Monitor etc.
If you want to embed M220ZGE-L20 LCM in your future product, we strongly recommend that you should contact with Chimei Innolux or XIANHENG TECH to learn lateast production and specification detail.
| Brand | Chimei Innolux |
| Model | M220ZGE-L20 |
| Diagonal Size | 22.0 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1680(RGB)×1050 [WSXGA+] 90PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 473.76(H)×296.1(V) mm |
| Outline Dim. | 493.7(H)×320.1(V) mm |
| Bezel Area | 477.7(H)×300.1(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [12S4P] , 40K hours , W/O Driver |
| Weight | 2.10/2.25Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
