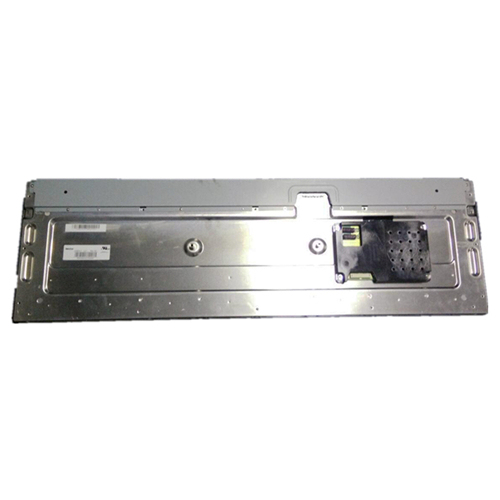

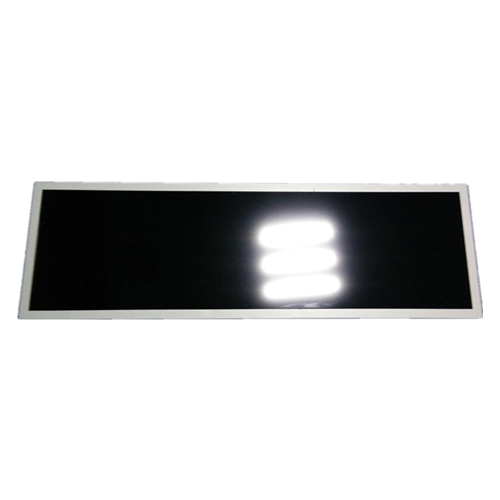

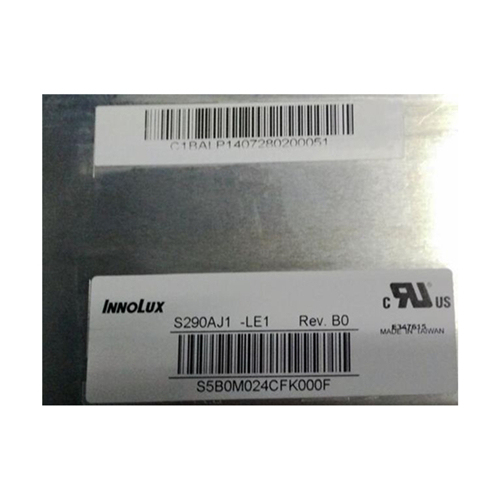

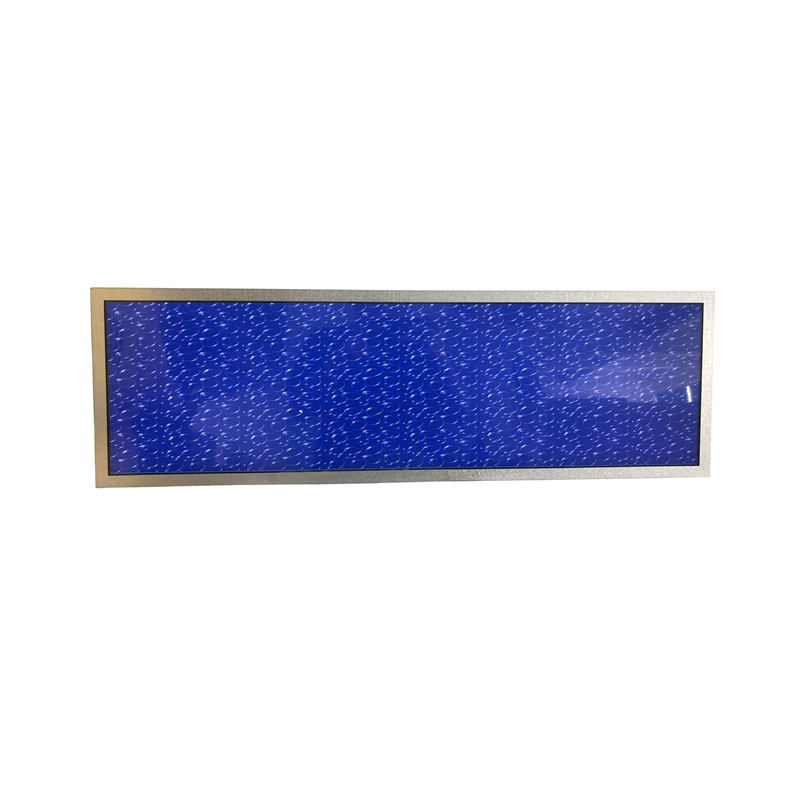

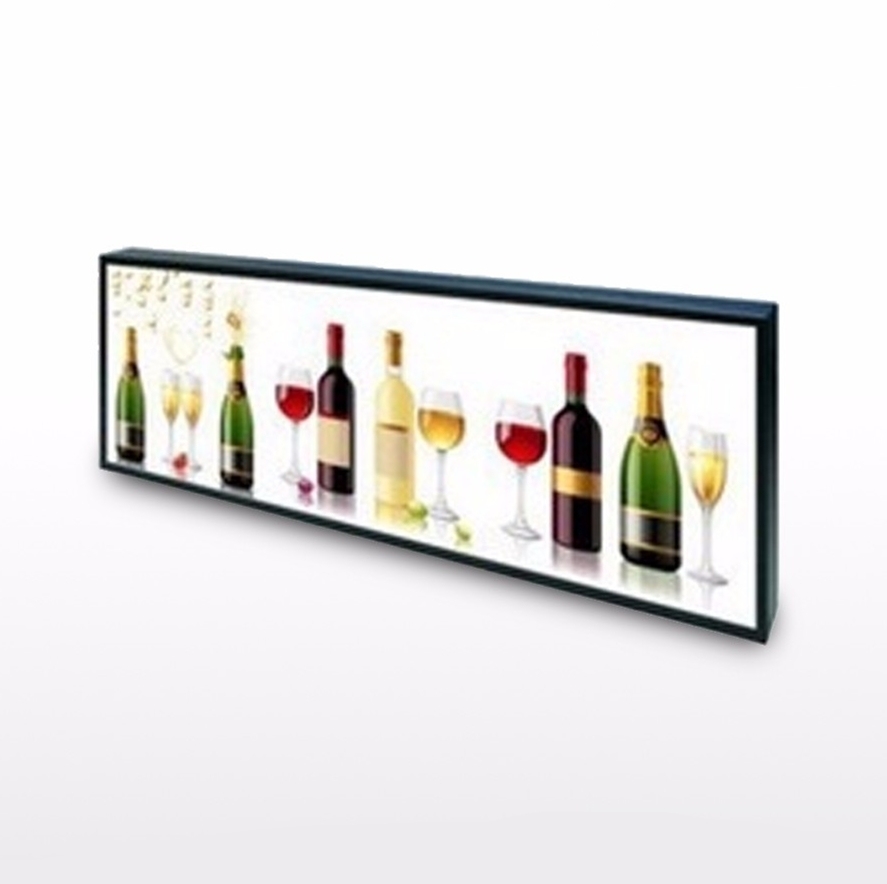

S290AJ1-LE1 innolux 29 inch screen TFT-LCD display module

Item No.: S290AJ1-LE1
S290AJ1-LE1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description
S290AJ1-LE1 innolux is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Brand INNOLUX
Model S290AJ1-LE1
Diagonal Size 29.0 inch   (1/2 cut of 31.5")
Type a-Si TFT-LCD , LCM
Pixel Format 1920(RGB)×540
Configuration RGB Vertical Stripe
Active Area 698.4(H)×196.425(V) mm
Outline Dim. 731.46(H)×229.49(V) ×30.2(D) mm
Bezel Area 702.4(H)×200.43(V) mm
Treatment Antiglare (Haze 3.4%)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 4500:1 (Typ.) (TM)
View Direction Symmetry
Response Time 8.5 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left/Right/Up/Down
Operating Mode Super MVA, Normally Black, Transmissive
Support Color 16.7M   72% (CIE1931)
Light Source WLED , 50K hours , Embedded (LED Driver)
Weight 2.40±0.12g
Designed For Public Info Display  Bar Shape
Frame Rate 60Hz
Touch Panel Without
Interface Type 51 pins   LVDS (2 ch, 8-bit) , Connector
Power Supply 12.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
