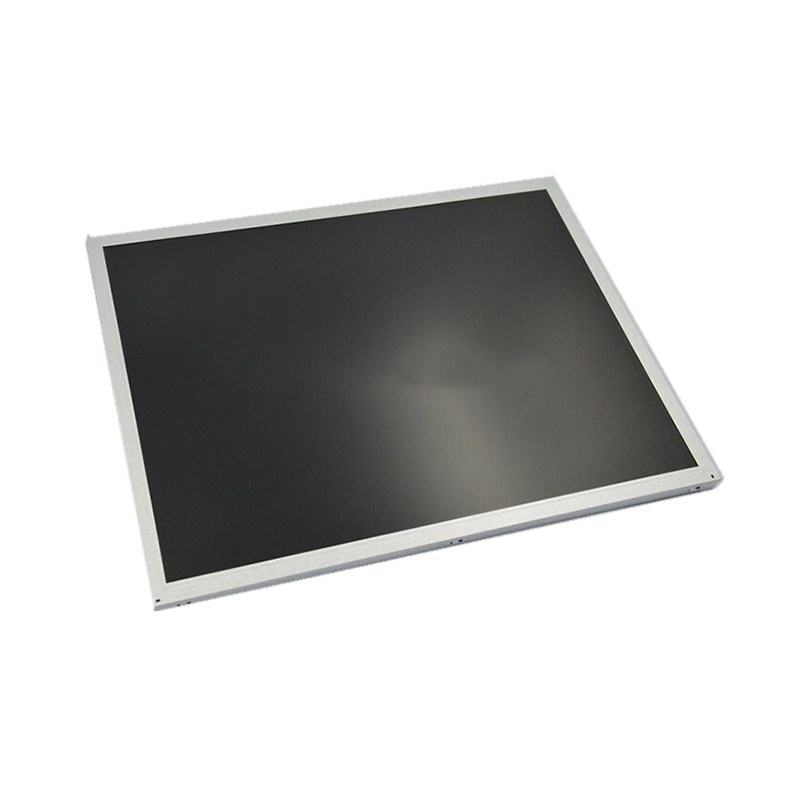

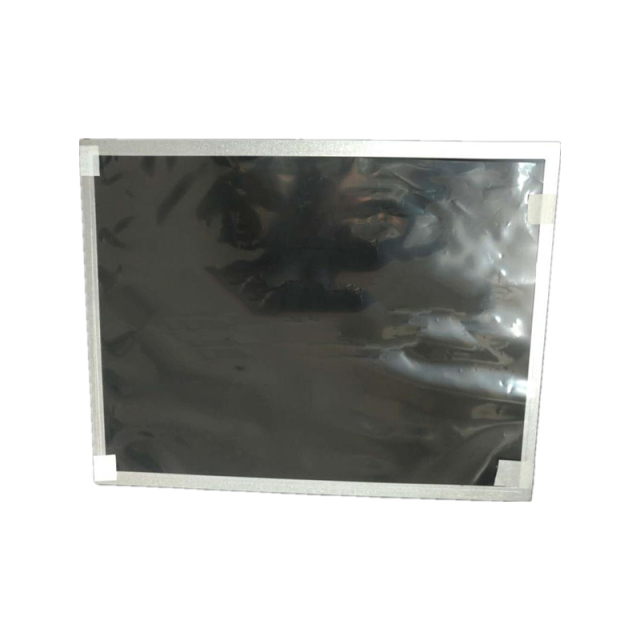

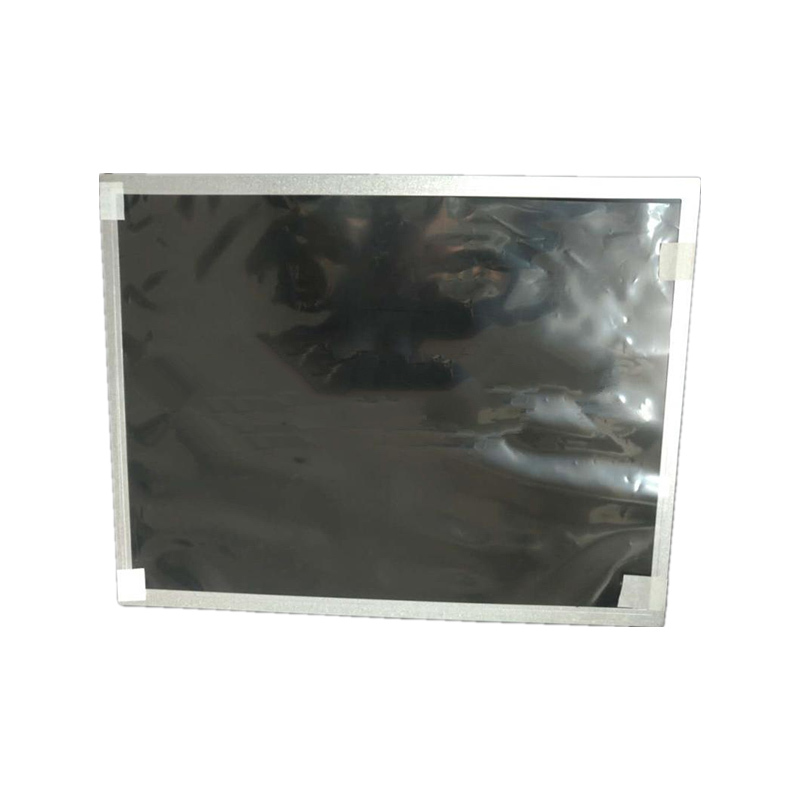

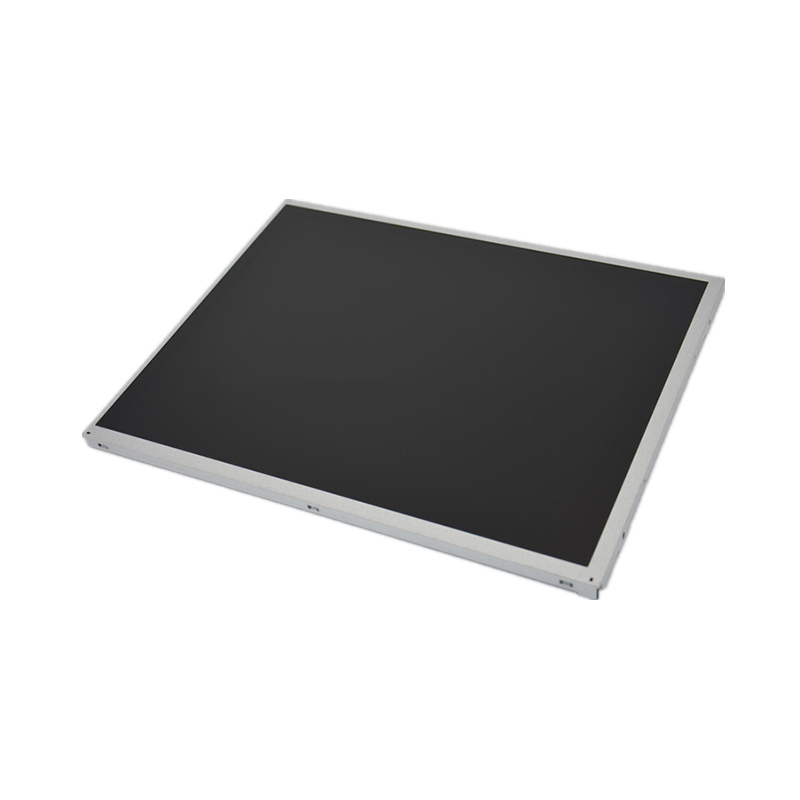

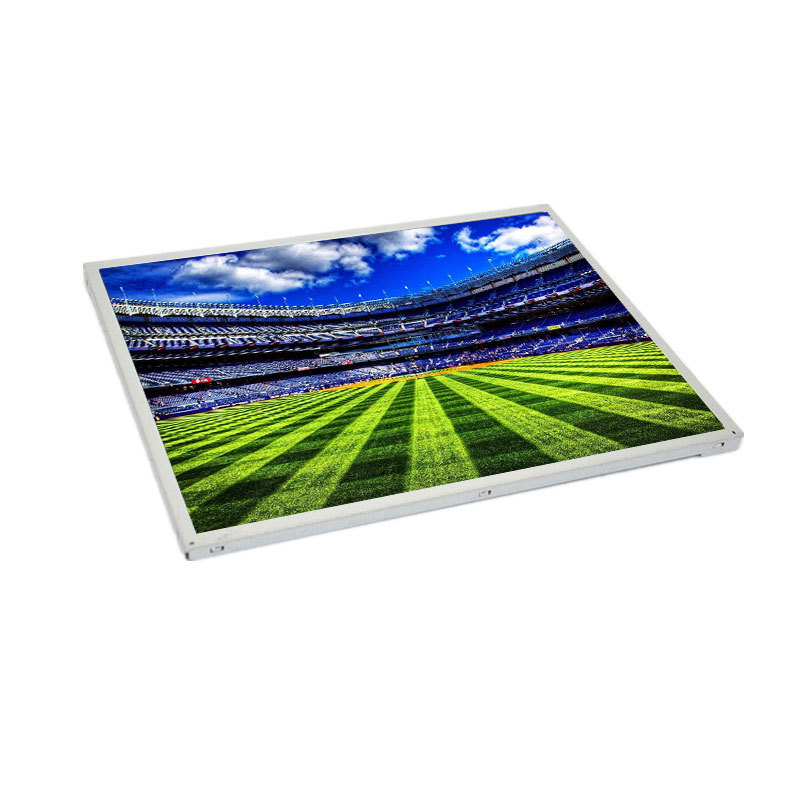

G150XNE-L01 innolux 15 inch screen TFT-LCD display module

No.G150XNE-L01
G150XNE-L01 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.7M/262k colors.
  • G150XNE-L01 innolux 15 inch screen TFT-LCD display module
  • G150XNE-L01 innolux 15 inch screen TFT-LCD display module
  • G150XNE-L01 innolux 15 inch screen TFT-LCD display module
  • G150XNE-L01 innolux 15 inch screen TFT-LCD display module
  • G150XNE-L01 innolux 15 inch screen TFT-LCD display module
Description

OVERVIEW
G150XNE-L01 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.7M/262k colors.
The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.

FEATURE
XGA (1024 x 768 pixels) resolution
DE (Data Enable) only mode
LVDS Interface with 1pixel/clock
PSWG (Panel Standardization Working Group)
Wide operating temperature.
RoHS compliance

APPLICATION
TFT LCD Monitor
Factory Application
Amusement
Vehicle

Panel Brand INNOLUX
Panel Model G150XNE-L01
Panel Size 15.0 inch
Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768 , XGA
Pixel Format RGB Vertical Stripe
Display Area 304.128(W)×228.096(H) mm
Bezel Opening 307.4(W)×231.3(H) mm
Outline Size 326.5(W)×253.5(H) ×9.6(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 2500:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode NPVA, Normally Black, Transmissive
Best View on Symmetry
Response Time 13/5 (Typ.)(Tr/Td)
Display Colors 262K/16.7M   72% (CIE1931)
Lamp Type WLED , 70K hours , Embedded (LED Driver)
Frequency 60Hz
Touch Screen Without
Panel Weight 0.97/1.00Kgs (Typ./Max.)
Application Industrial Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C
