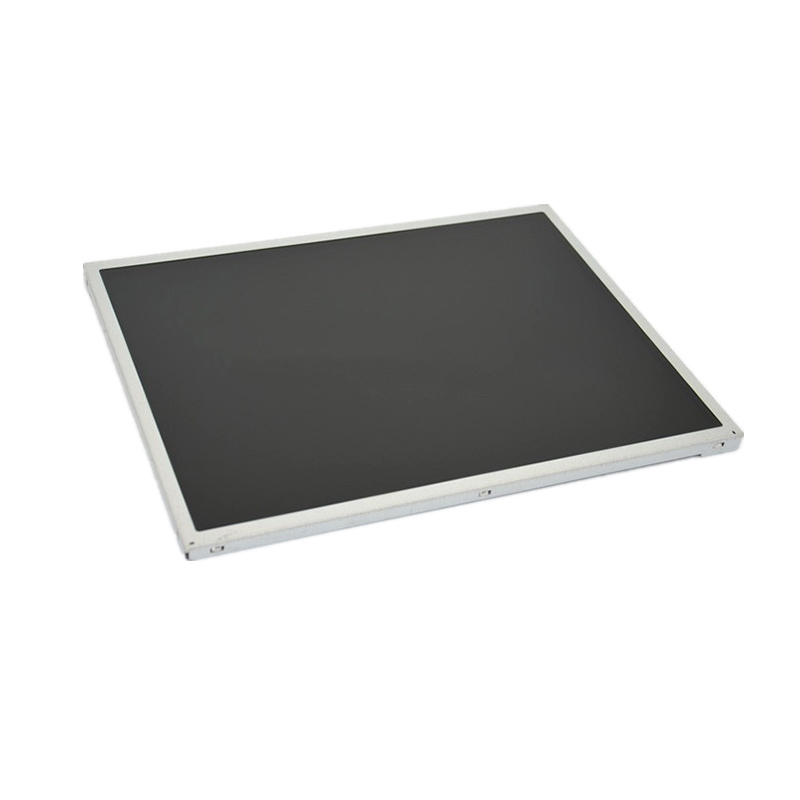

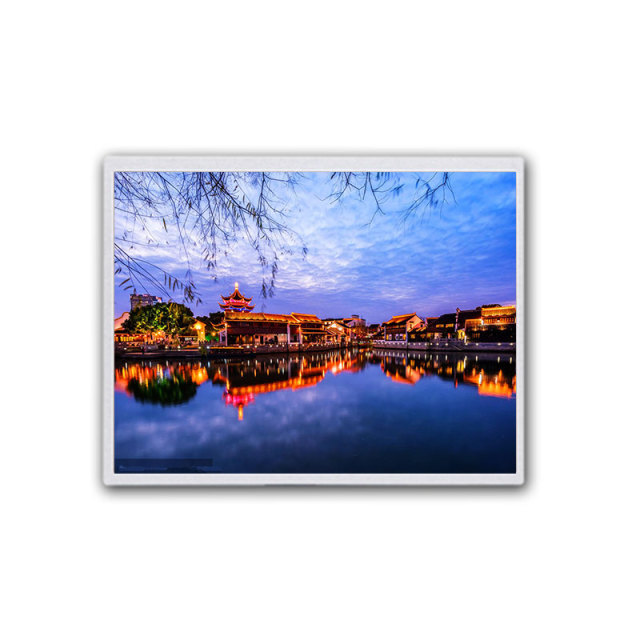

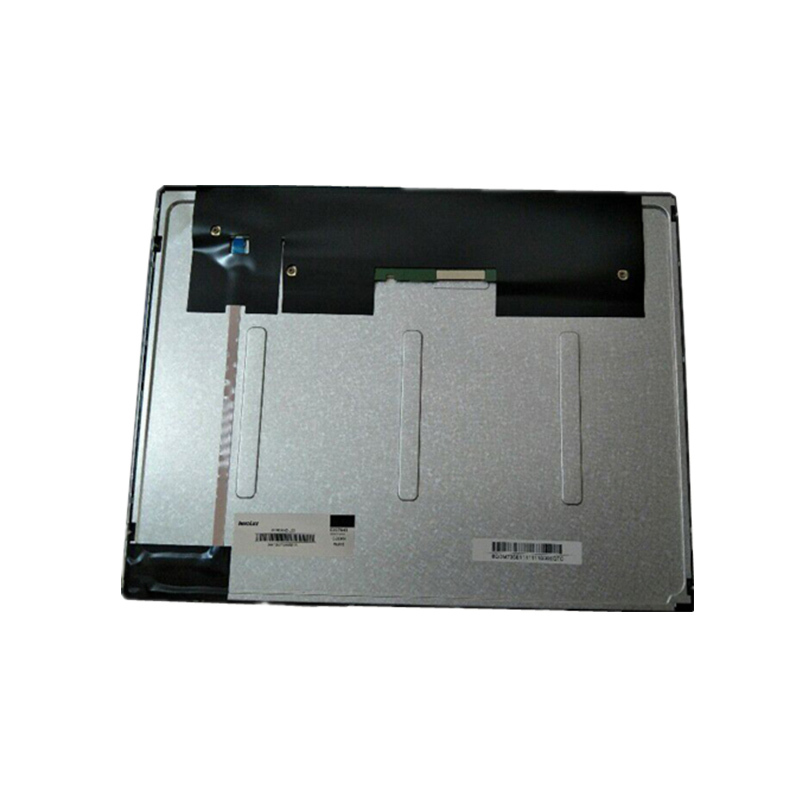

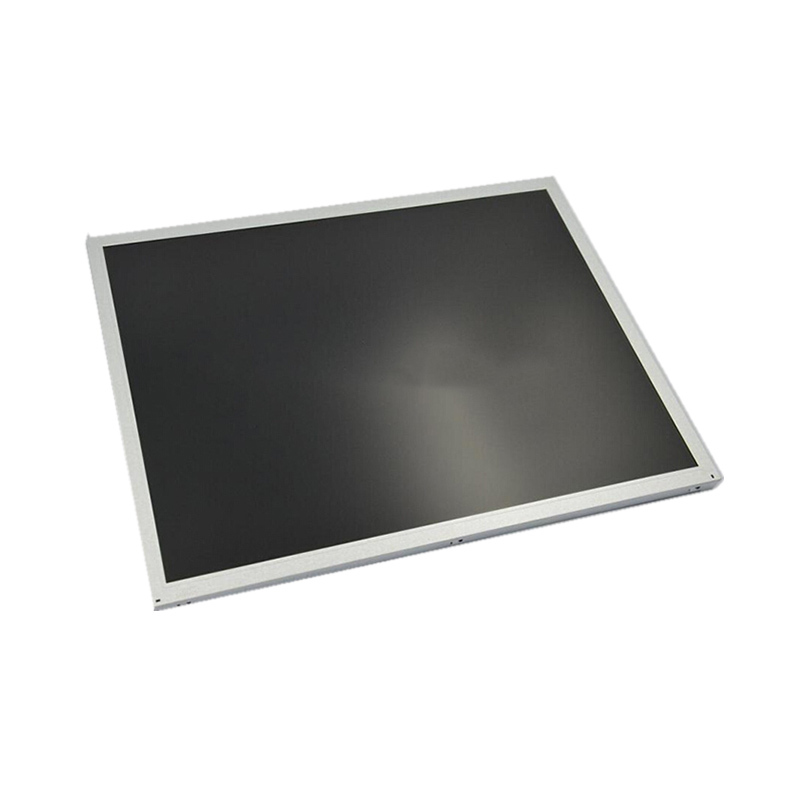

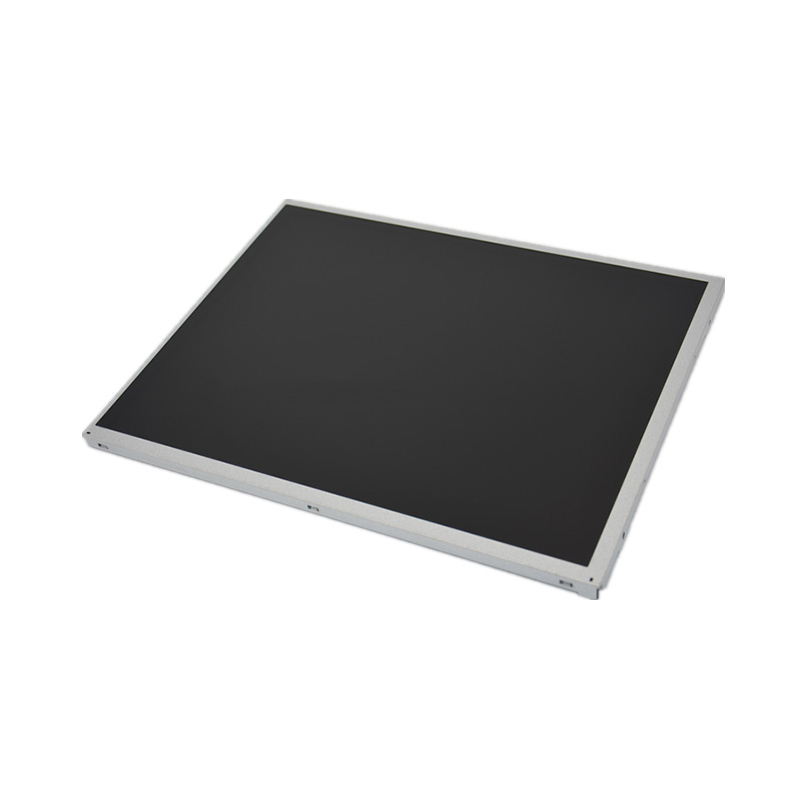

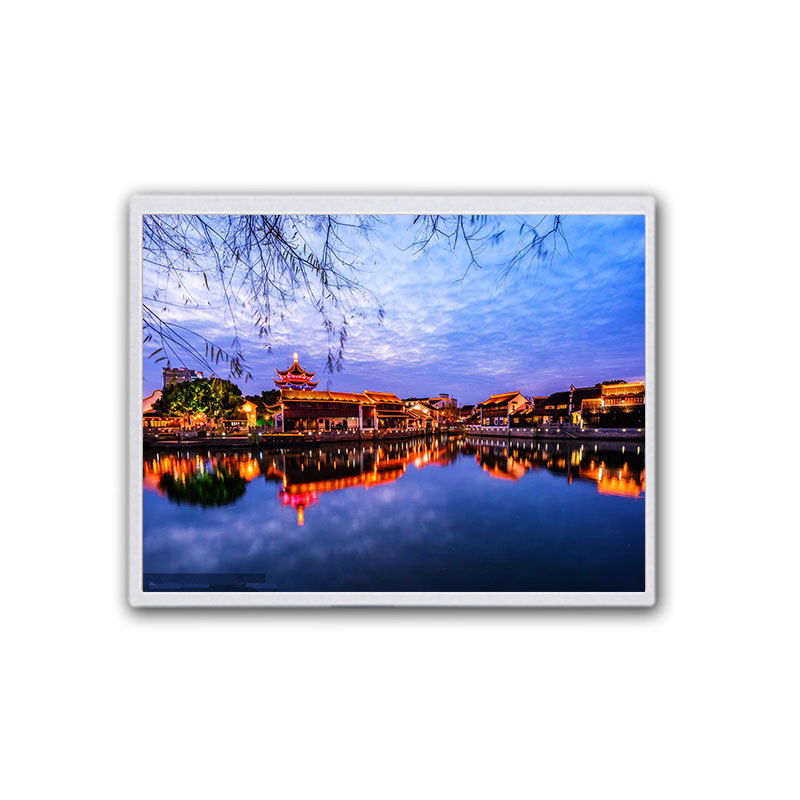

G150XNE-L03 innolux 15 inch screen TFT-LCD display module

Item No.: G150XNE-L03
G150XNE-L03 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors.
Description Review
Description

G150XNE-L03 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors.
The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.

FEATURE

XGA (1024 x 768 pixels) resolution

DE (Data Enable) only mode

LVDS Interface with 1pixel/clock

PSWG (Panel Standardization Working Group)

Wide operating temperature.

RoHS compliance



APPLICATION

TFT LCD Monitor

Factory Application

Amusement

Vehicle



GENERAL SPECIFICATI0NS

Brand:     INNOLUX

Model:     G150XNE-L03

Diagonal Size:     15.0 inch

Type:     a-Si TFT-LCD, LCM

Pixel Format:     1024(RGB)×768   [XGA]

Configuration:     RGB Vertical Stripe

Active Area:     304.1(H)×228.1(V) mm

Outline Dim.:     326.5(H)×253.5(V) ×9.6(D) mm

Bezel Area:     307.4(H)×231.3(V) mm

Treatment:     Antiglare, Hard coating (3H)

Luminance:     250 cd/m² (Typ.)

Contrast Ratio:     2000:1 (Typ.) (TM)

View Direction:     Symmetry

Response Time:     16/7 (Typ.)(Tr/Td)

Viewing Angle:     88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     NPVA, Normally Black, Transmissive

Support Color:     262K/16.7M   72% (CIE1931)

Light Source:     WLED , 70K hours , Embedded (LED Driver)

Weight:     0.96/1.00Kgs (Typ./Max.)

Designed For:     Industrial Application

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     20 pins   LVDS (1 ch, 6/8-bit) , Connector

Power Supply:     3.3V (Typ.)

Environment:     Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 70 °
