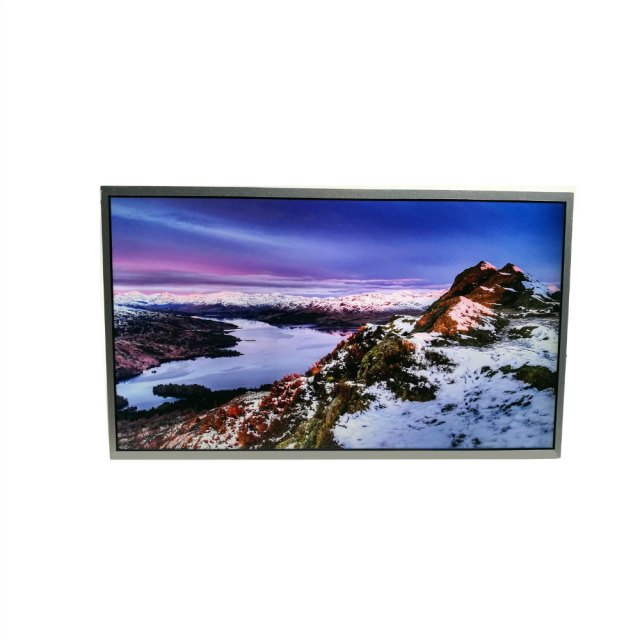

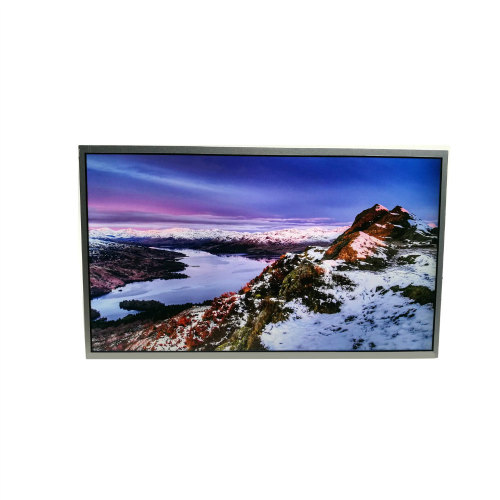

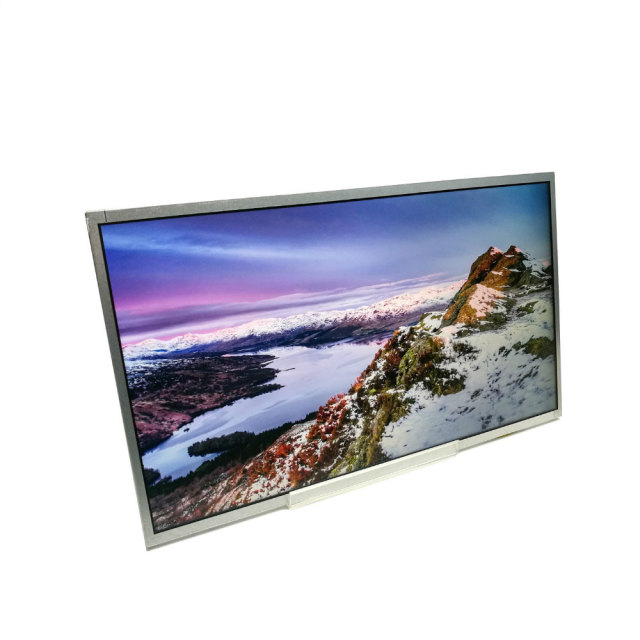

M215HNE-L30 innolux 21.5 inch screen TFT-LCD display module

Item No.: M215HNE-L30
M215HNE-L30 is the new and original 21.5 inch lcd panels FHD 1920*1080 full viewing angle for gaming computer monitor with customizable touchscreen service.
Description Review
Description

New and original 21.5 inch lcd panels FHD 1920*1080 full viewing angle for gaming computer monitor with customizable touchscreen

General Specification

Brand:     Innolux

Model:     M215HNE-L30

Diagonal Size:     21.5 inch

Type:     a-Si TFT-LCD , LCM

Pixel Format:     1920(RGB)×1080   [FHD]

Configuration:     RGB Vertical Stripe

Active Area:     476.064(H)×267.786(V) mm

Outline Dim.:     495.6(H)×292.2(V) ×12(D) mm

Bezel Area:     479.84(H)×271.3(V) mm

Treatment:     Antiglare, Hard coating (3H)

Luminance:     250 cd/m² (Typ.)

Contrast Ratio:     3000:1 (Typ.) (TM)

View Direction:     Symmetry

Response Time:     15/5 (Typ.)(Tr/Td)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     Super MVA, Normally Black, Transmissive

Support Color:     16.7M   72% (CIE1931)

Light Source:     WLED  [4 strings] , 40K hours , W/O Driver

Weight:     1.80/1.85Kgs (Typ./Max.)

Designed For:     Desktop Monitor

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     30 pins   LVDS (2 ch, 8-bit) , Connector

Power Supply:     5.0V (Typ.)

Environment:     Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
