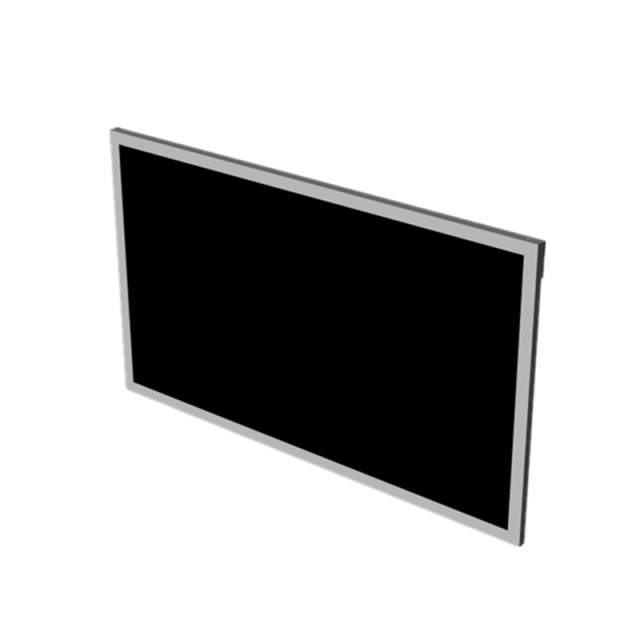

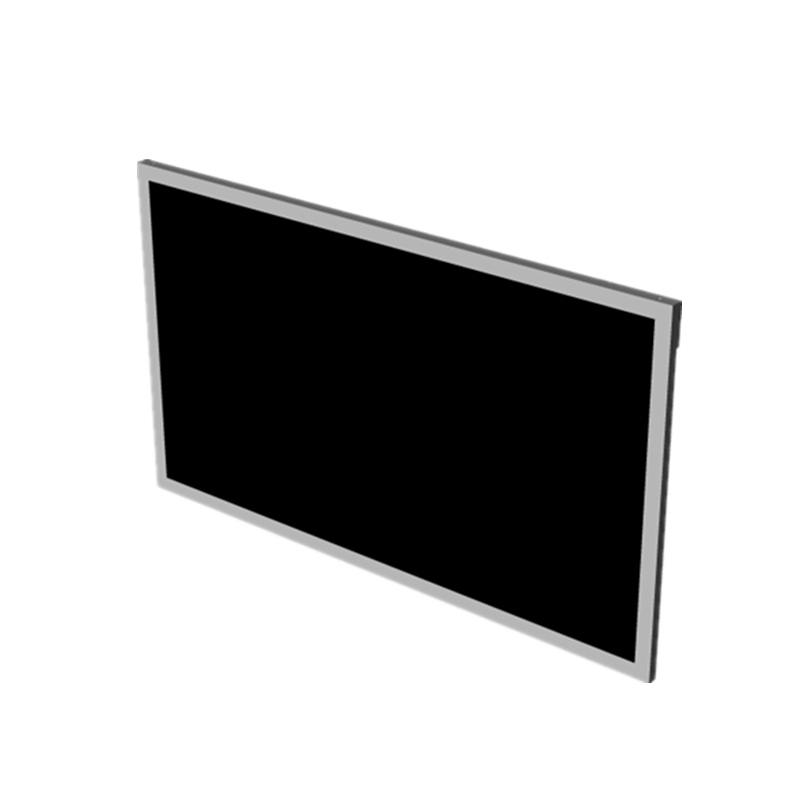

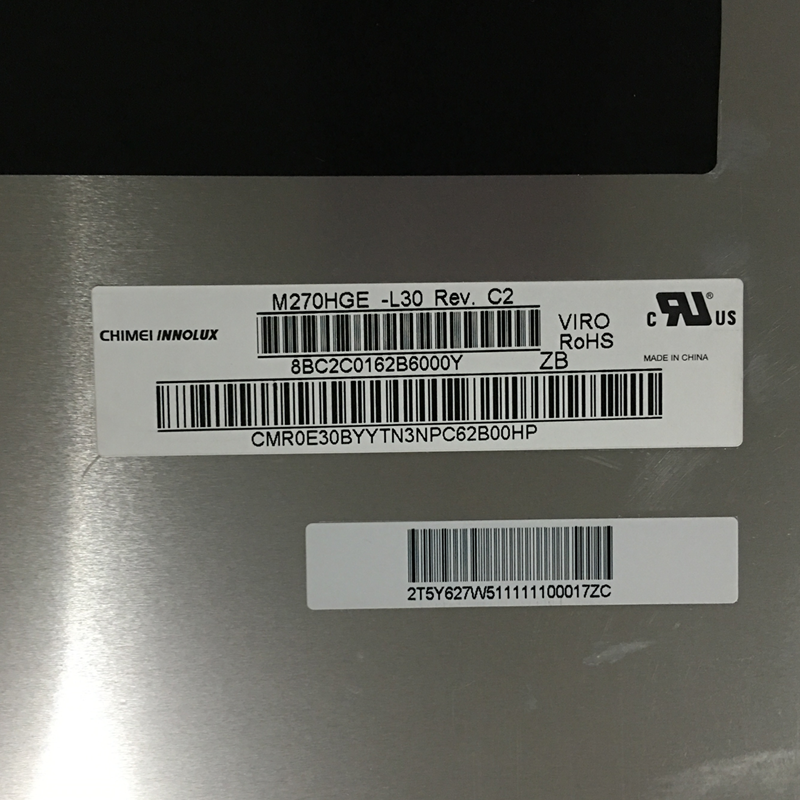

M270HGE-L30 innolux 27 inch TFT-LCD display module
Item No.: M270HGE-L30
M270HGE-L30 is a 27.0 inch a-Si TFT-LCD LCD module product launched by Chimei Innolux. It is equipped with WLED backlight, no backlight driver and no touch. Its typical features are summarized as: wide gamut, surface fog, wide angle of view, landscape mod
Description
M270HGE-L30 is a 27.0 inch a-Si TFT-LCD LCD module product launched by Chimei Innolux. It is equipped with WLED backlight, no backlight driver and no touch. Its typical features are summarized as: wide gamut, surface fog, wide angle of view, landscape mode, white LED backlight, wide screen.
General Specification
Panel Brand: Chimei Innolux
Panel Model: M270HGE-L30
Panel Size : 27.0 inch
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080 , FHD
Pixel Format: RGB Vertical Stripe
Display Area: 597.888(W)×336.312(H) mm
Bezel Opening: 603.9(W)×342.3(H) mm
Outline Size: 630(W)×368.2(H) ×14.6(D) mm
Surface: Antiglare (Haze 25%), Hard coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Typ.) (TM)
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode: TN, Normally White, Transmissive
Best View on: -
Response Time: 1.5/3.5 (Typ.)(Tr/Td)
Display Colors: 16.7M 72% (CIE1931)
Lamp Type: 4 strings WLED , 40K hours , Without Driver
Frequency: 60Hz
Touch Screen: Without
Panel Weight: 2.53±0.07Kgs
Application: Desktop Monitor
Signal Interface: LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage: 5.0V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
