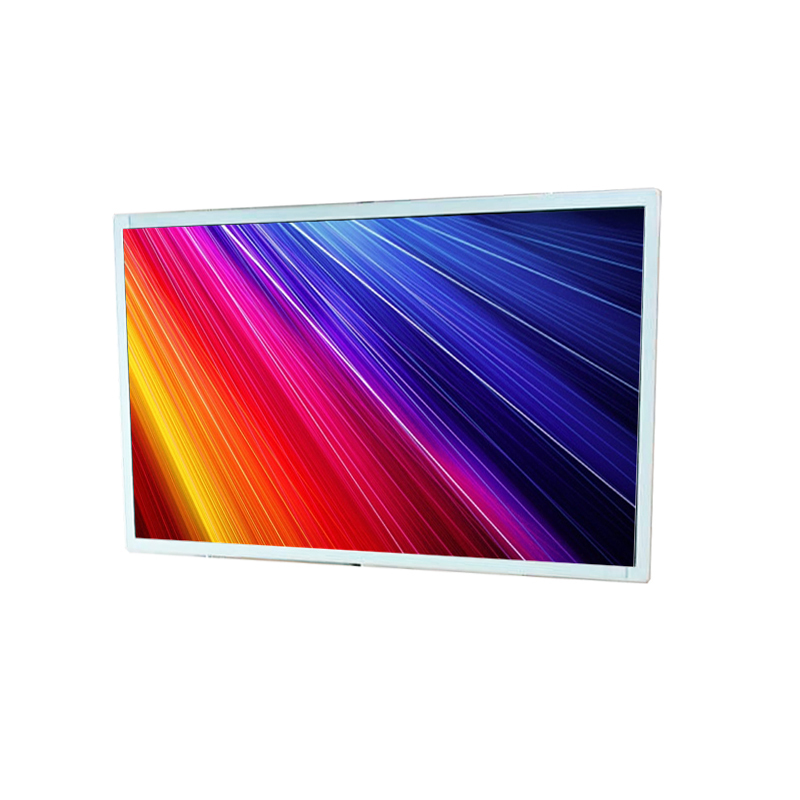

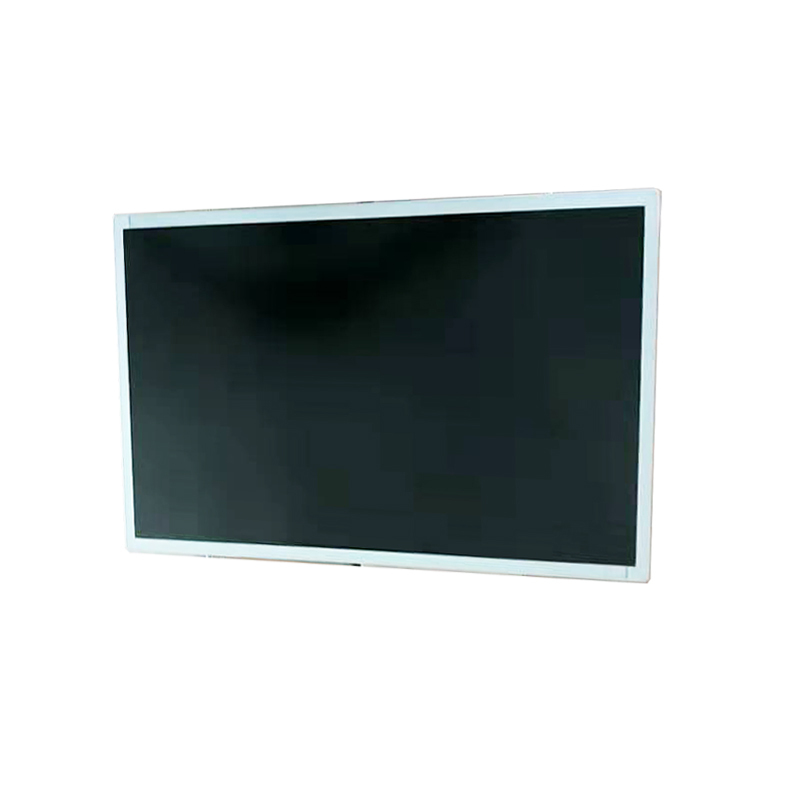

M200HJJ-L20 innolux 20 inch screen TFT-LCD display module

M200HJJ-L20 innolux 20 inch screen TFT-LCD display module

Name: M200HJJ-L20 innolux 20 inch screen TFT-LCD display module
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: M200HJJ-L20
Availability: InStock
Rating: 5 (1 reviews)

Item No.: M200HJJ-L20

Innolux M200HJJ-L20 is a 19.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, with full high resolution, without touch screen.

INQUIRY PDF Format

Description

Innolux M200HJJ-L20 is a 19.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. M200HJJ-L20 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 434.88(W)×238.68(H) mm, outline size of 459.8(W)×263(H)×11.82(D) mm, viewing area size of 438.18(W)×241.98(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.47±0.08Kgs.

As a MVA, Normally Black, Transmissive LCM product, M200HJJ-L20 can provides 250 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (CIE1931).

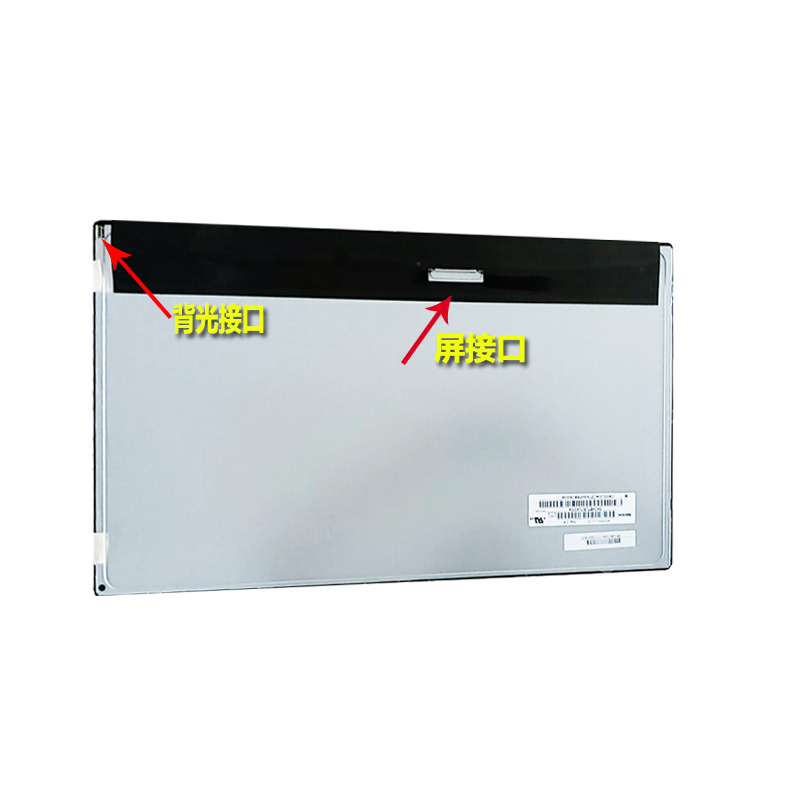

This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed.

M200HJJ-L20 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

General Specification

Panel Brand:    CHIMEI INNOLUX
Panel Size   :    19.5 inch
Panel Model:    M200HJJ-L20
Panel Type:    a-Si TFT-LCD , LCM
Pixel Format:    RGB Vertical Stripe
Bezel Opening:    435.3(W)×243.06(H) mm
Surface:    Antiglare (Haze 25%), Hard coating (3H)
Resolution:    1920(RGB)×1080 , FHD
Display Area:    434.88(W)×238.68(H) mm
Outline Size:    459.8(W)×263(H)×11.82(D) mm
Brightness:    250 cd/m² (Typ.)
Viewing Angle:    89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Best View on:    Symmetry
Display Colors:    16.7M   72% (CIE1931)
Frequency:    60Hz
Weight:    1.47±0.08Kgs
Contrast Ratio:    3000:1 (Typ.) (TM)
Display Mode:    MVA, Normally Black, Transmissive
Response Time:    15/5 (Typ.)(Tr/Td)
Lamp Type:    4 strings WLED , 30K hours , Without Driver
Touch Screen:    Without
Application:    Desktop Monitor
Signal Interface:    LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage:    5.0V (Typ.)
Environment:    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
