M238HCA-L5Z innolux is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

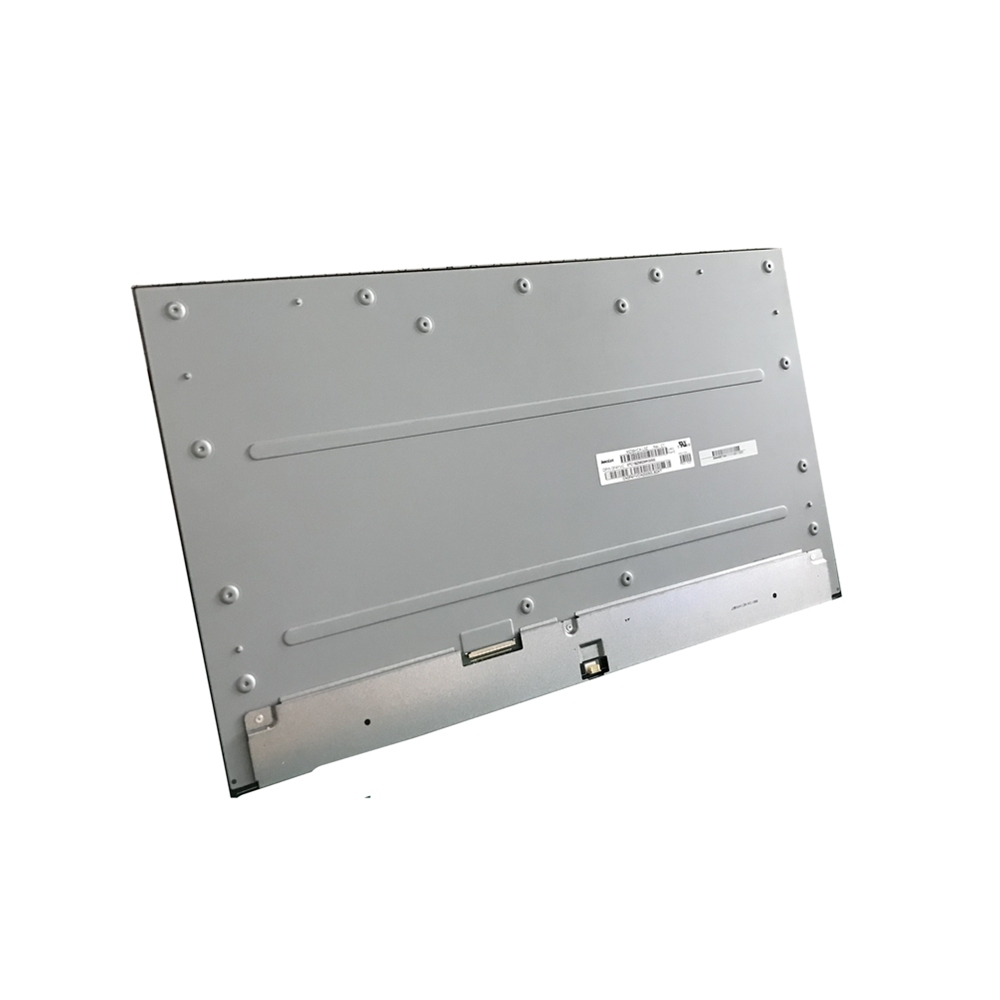

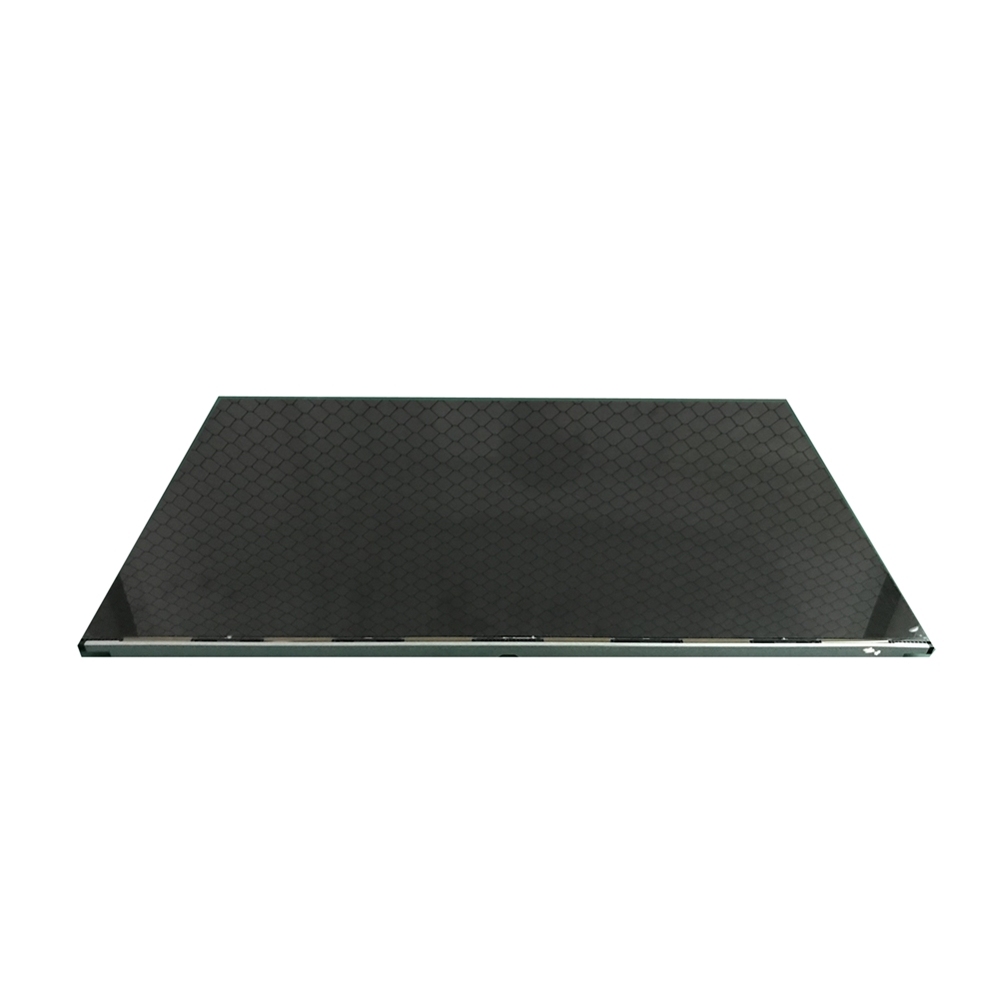

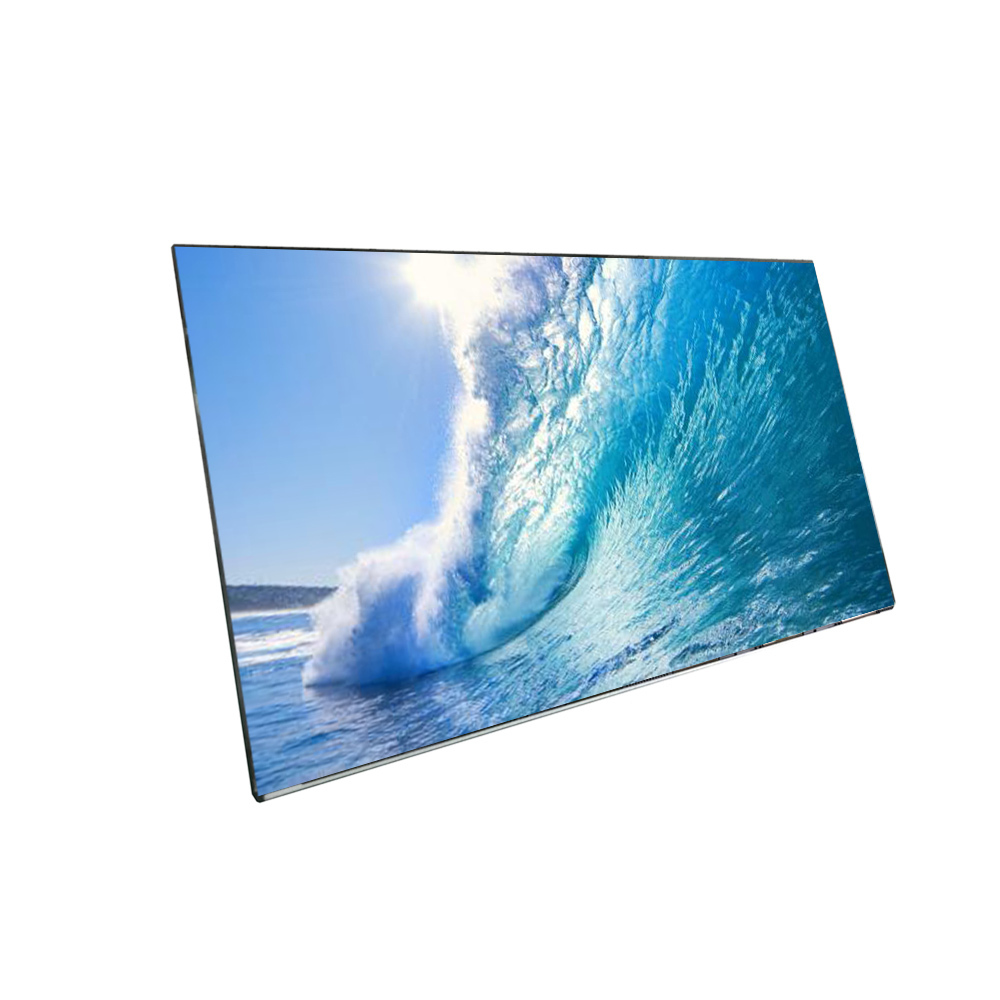

Innolux Corporation M238HCA-L5Z is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.
M238HCA-L5Z supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×13(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.27Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, M238HCA-L5Z can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).
This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed.

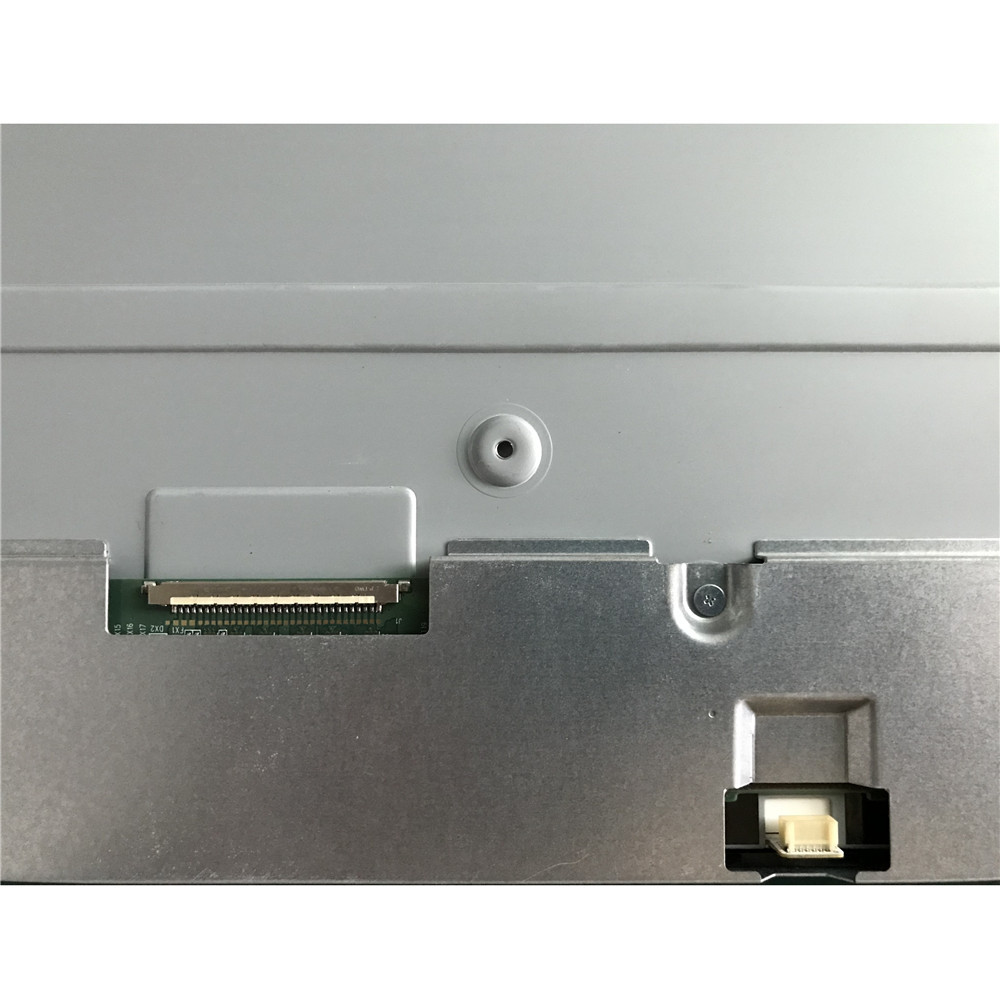

M238HCA-L5Z utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
For more latest product detail of M238HCA-L5Z We strongly recommend that you should contact with the INNOLUX lcd display supplier XIANHENG.
Brand | Innolux |

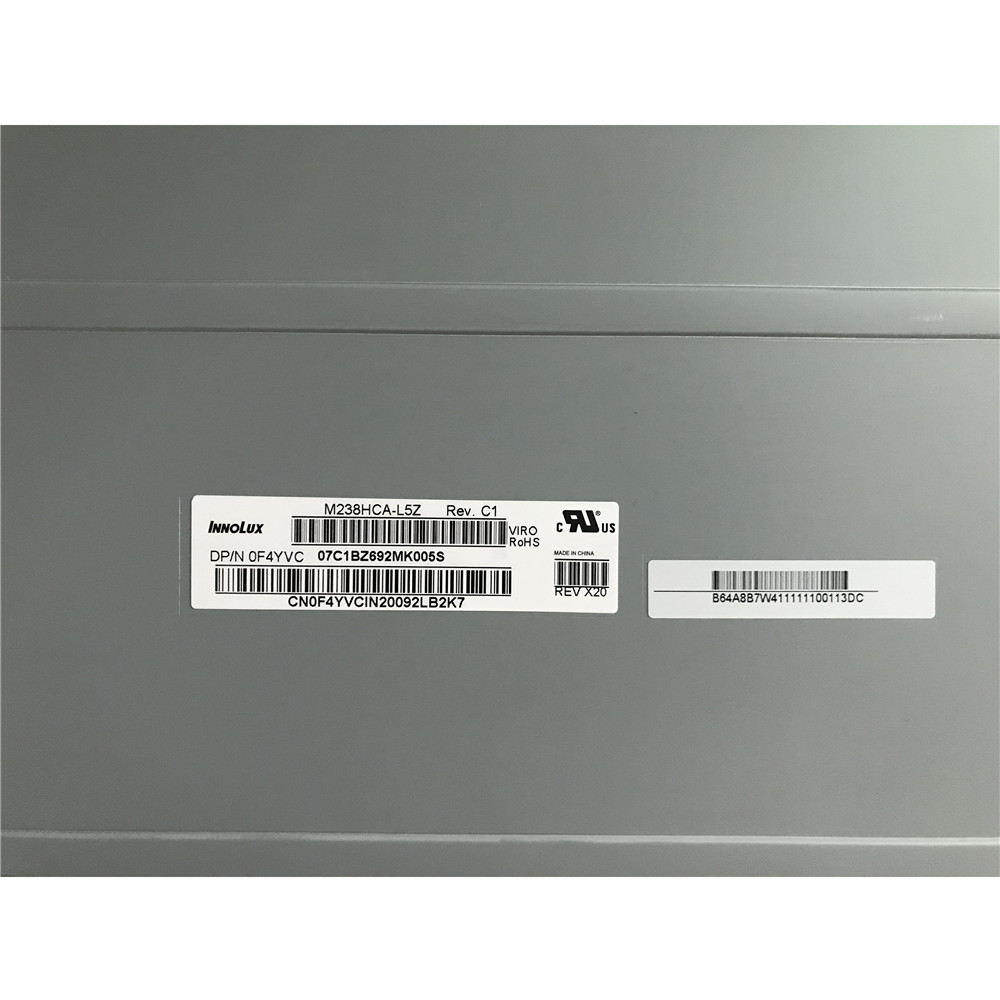

Model | P/NM238HCA-L5Z |
Diagonal Size | 23.8" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 92PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 527.04(W)×296.46(H) mm |
Bezel Opening | - |
Outline Size | 535(W)×313(H) ×13(D) mm |
Brightness | 250 cd/m² (Typ.) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
Best View on | Symmetry |
Display Colors | 16.7M 72% NTSC |
Frequency | 60Hz |
Weight | 2.27Kgs (Typ.) |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Display Mode | AAS, Normally Black, Transmissive |
Response Time | 8/7 (Typ.)(Tr/Td) |
Lamp Type | 4 strings WLED , 40K hours , Without Driver |
Touch Screen | Without |
Application | Desktop Monitor |
Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
