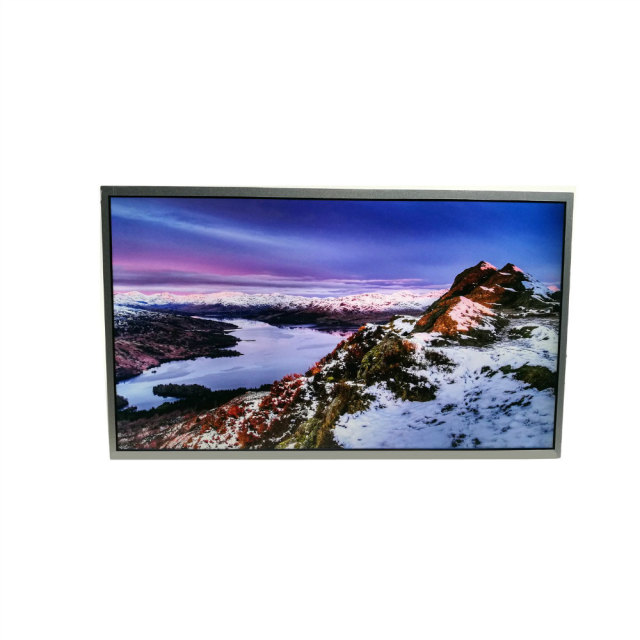

M215HNE-L30 innolux 21.5 inch 500 nits high brightness lcd display outdoor use

Item No.: M215HNE-L30(500nits)
This is a new and original 21.5 inch lcd panels with high luminance use for outdoor advertising, gaming computer monitor with customizable touchscreen service.
Description Review
Description

Original 21.5 inch lcd panels with high luminance use for outdoor advertising, gaming computer monitor with customizable touchscreen service.

General Specification

Brand:     Innolux

Model:     M215HNE-L30

Diagonal Size:     21.5 inch

Type:     a-Si TFT-LCD , LCM

Pixel Format:     1920(RGB)×1080   [FHD]

Configuration:     RGB Vertical Stripe

Active Area:     476.064(H)×267.786(V) mm

Outline Dim.:     495.6(H)×292.2(V) ×12(D) mm

Bezel Area:     479.84(H)×271.3(V) mm

Treatment:     Antiglare, Hard coating (3H)

Luminance:     500 cd/m² (Typ.)

Contrast Ratio:     3000:1 (Typ.) (TM)

View Direction:     Symmetry

Response Time:     15/5 (Typ.)(Tr/Td)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:     Super MVA, Normally Black, Transmissive

Support Color:     16.7M   72% (CIE1931)

Light Source:     WLED  [4 strings] , 40K hours , W/O Driver

Weight:     1.80/1.85Kgs (Typ./Max.)

Designed For:     Desktop Monitor

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     30 pins   LVDS (2 ch, 8-bit) , Connector

Power Supply:     5.0V (Typ.)

Environment:     Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
