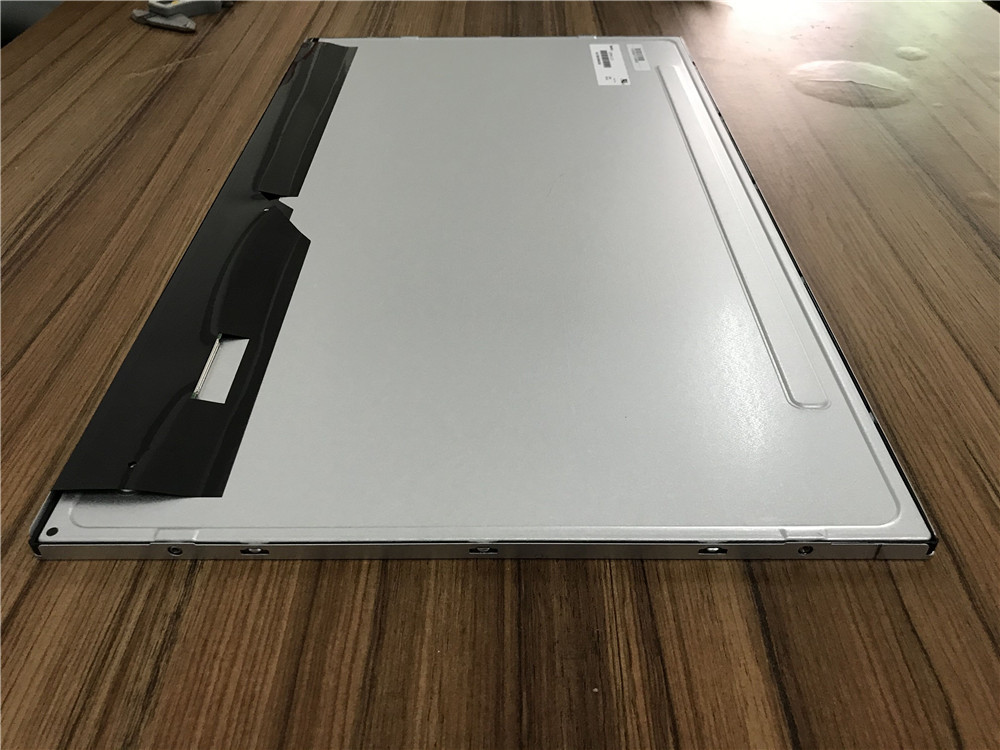

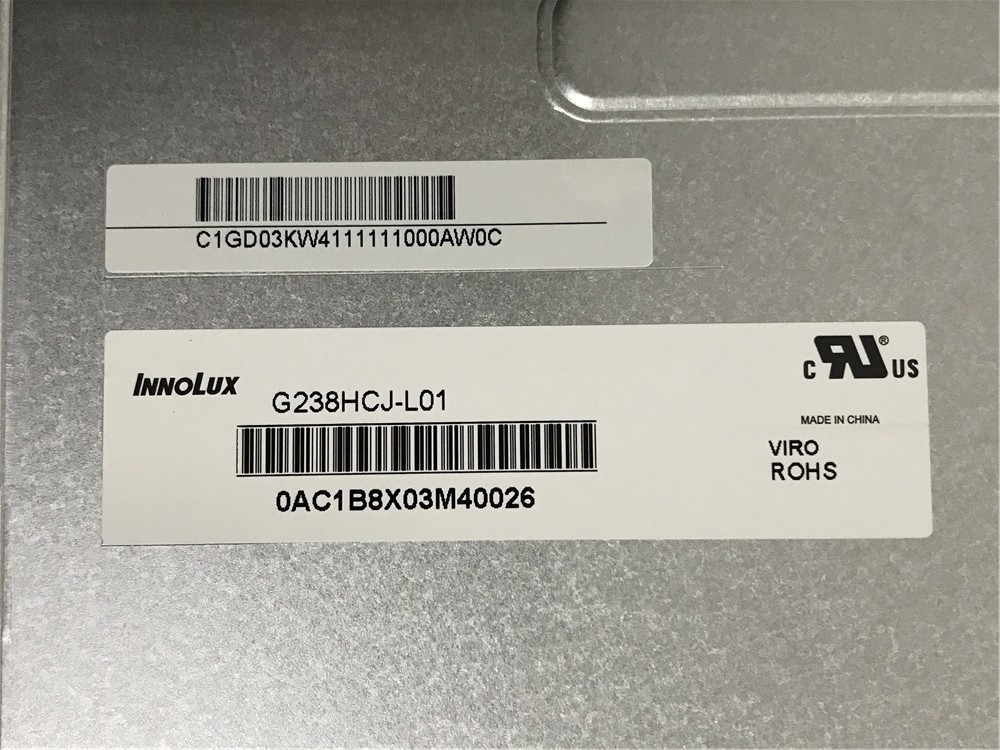

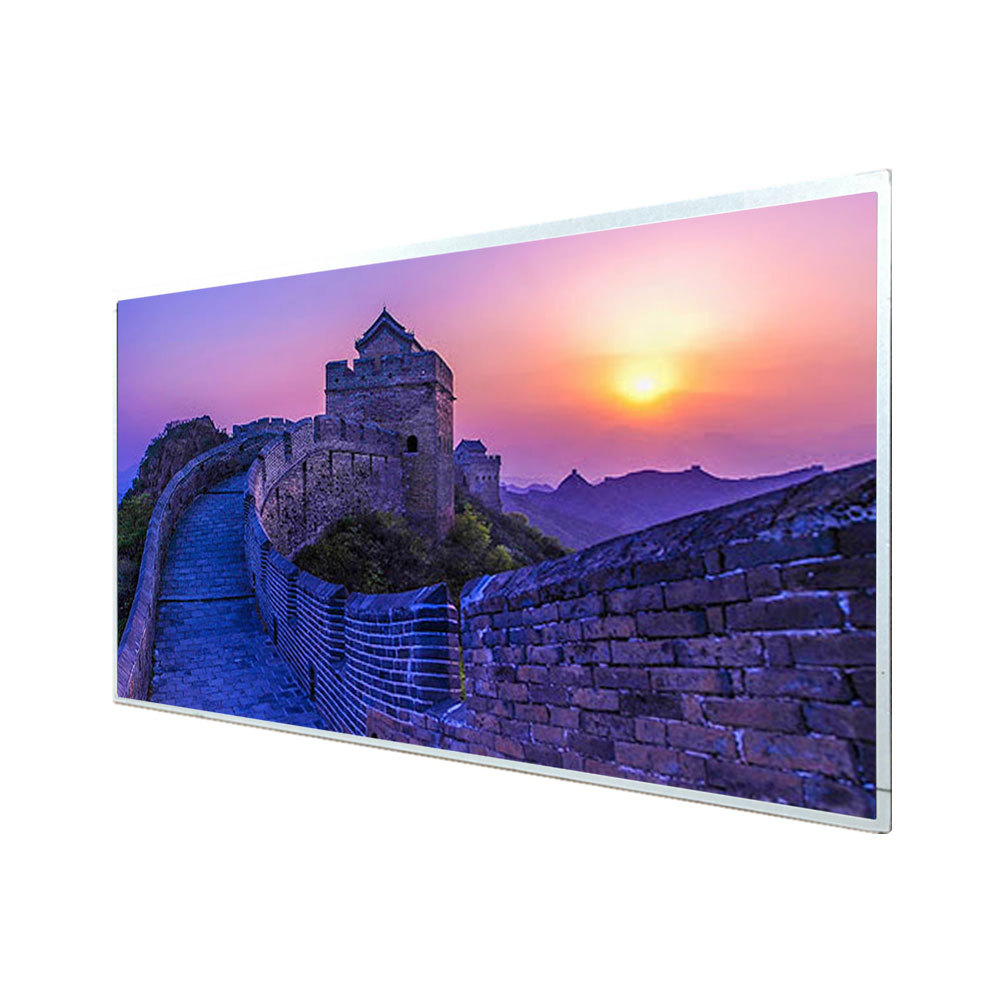

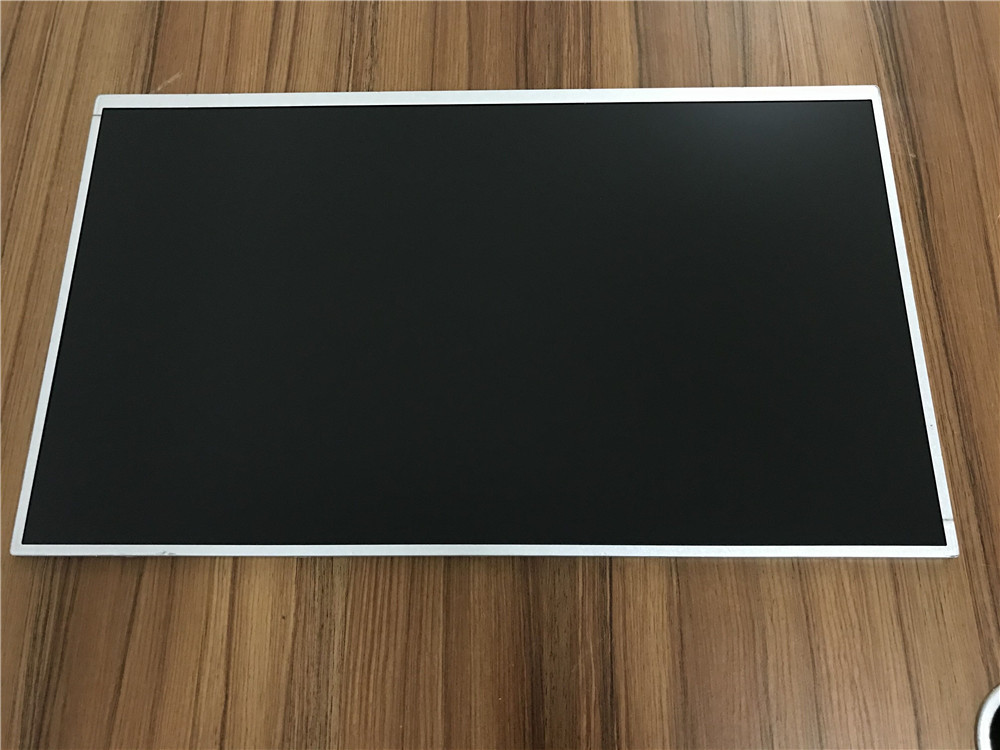

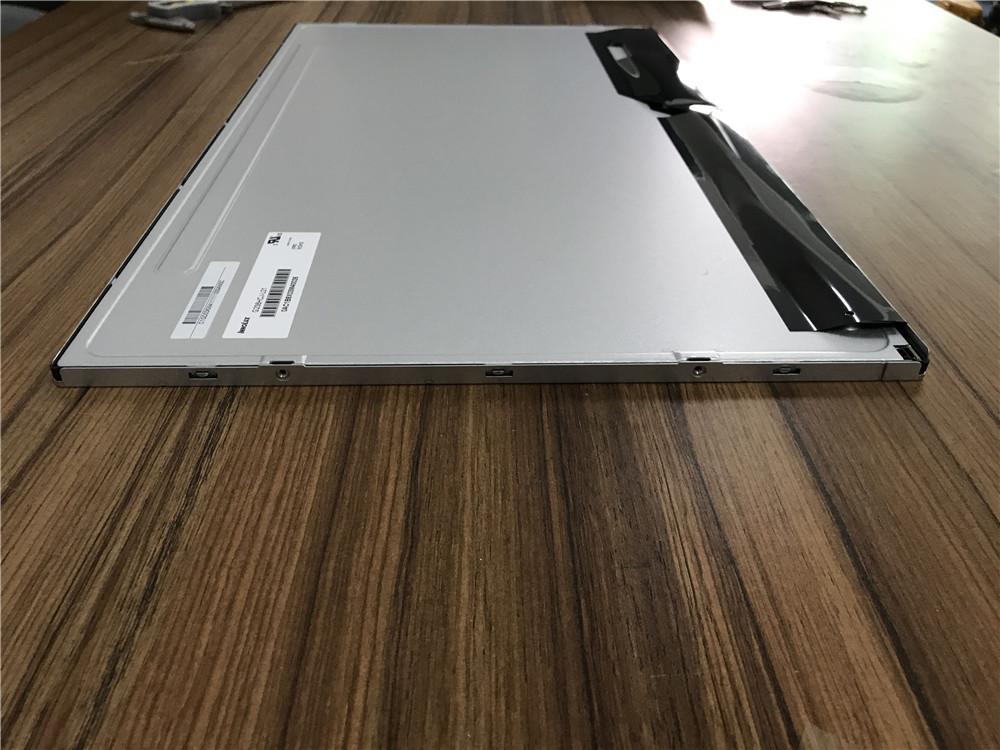

G238HCJ-L01 is one of innolux industrial lcd display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
As a AAS, Normally Black, Transmissive LCM product, G238HCJ-L01 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC).
G238HCJ-L01 adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. G238HCJ-L01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0±0.5V. It's typical vertical frame rate (Fv) is 60Hz.
If you want to embed G238HCJ-L01 LCM in your future product, you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.
| Brand | Innolux |
| Diagonal Size | 23.8 inch |
| Model | G238HCJ-L01 |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 543(H)×317.4(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 527.04(H)×296.46(V) mm |
| Bezel Area | 530.2(H)×299.6(V) mm |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Support Color | 16.7M 74% NTSC |
| Weight | 2.71Kgs (Typ.) |
| Frame Rate | 60Hz |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 8/7 (Typ.)(Tr/Td) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Light Source | WLED , 30K hours , W/O Driver |
| Designed For | Industrial |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) 30 pins Connector |
| Power Supply | 5.0±0.5V |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
