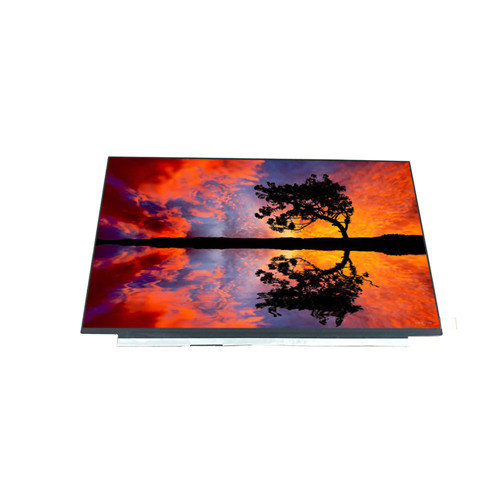

Name: N156HRA-EA1 innolux 15.6 inch screen TFT-LCD display module
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: N156HRA-EA1
Availability: InStock
Rating: 5 (1 reviews)

Home > CHIMEI INNOLUX > INNOLUX 15.6 inch lcd

N156HRA-EA1 innolux 15.6 inch screen TFT-LCD display module

Description Review

Description

Innolux N156HRA-EA1 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It's general features are summarized by Panelook in the following: 144Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.3.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). Based on its features, we recommend that this model be applied to Laptop, Gaming etc.

If you want to embed N156HRA-EA1 LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

Panel Brand	Innolux
Panel Model	N156HRA-EA1 (CMN1521)
Panel Size	15.6"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080, FHD, 141PPI
Display Area	344.16(W)×193.59(H) mm
Outline Size	350.66(W)×216.25(H) ×3.2(D) mm
Pixel Format	RGB Vertical Stripe
Bezel Opening	-
Brightness	250 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on	Symmetry
Display Colors	16.7M 45% NTSC
Frequency	144Hz
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	11/9 (Typ.)(Tr/Td)
Lamp Type	WLED , 15K hours , With LED Driver
Touch Screen	Without
Application	Laptop Gaming
Signal Interface	eDP (4 Lanes) , eDP1.3 , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
