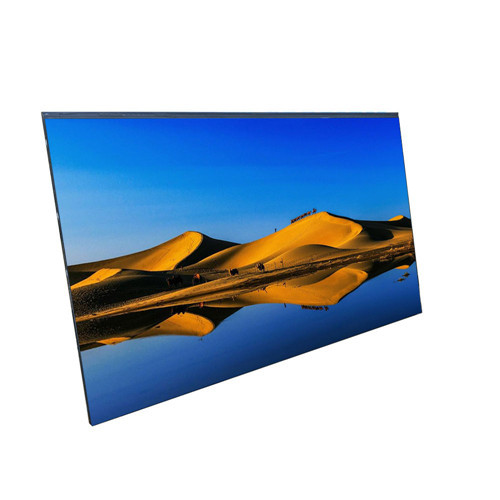

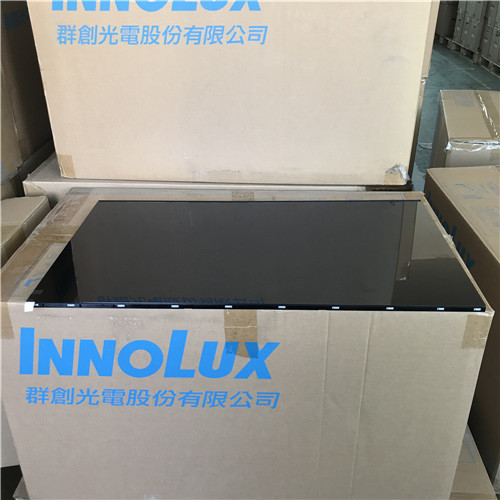

M270KCJ-K7E INNOLUX 27 inch lcd display anti-blue light for Eye Care Monitor

Item No.: M270KCJ-K7E
Innolux M270KCJ-K7E is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

Innolux M270KCJ-K7E is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It's general features are summarized in the following: DCI-P3, sRGB, HDR400, 3-side boderless, 165Hz, WLED Backlight, Reverse I/F, 10 bit, Matte, G-Sync / FreeSync , TCO 6.0, VESA, HDR400, Max.165Hz, 3-side Boderless, Low Blue Light Compliance.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . Based on its features, we recommend that this model be applied to Desktop Monitor, Gaming etc.

If you want to embed M270KCJ-K7E LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

General Specification

Manufacturer:     Innolux

Model Name:     M270KCJ-K7E

Screen Size:     27.0 inch

Screen Type:     LCM ,   a-Si TFT-LCD

Pixel Number:     2560(RGB)×1440   (Quad-HD)  108PPI

Arrangement:     RGB Vertical Stripe

Active Area(mm):     596.736 × 335.664 (H×V)

Outline(mm):     608.8 × 355.13 × 13.8 (H×V×D)

Bezel Area(mm):     -

Treatment:     Antiglare (Haze 25%), Hard coating (3H)

Luminance:     350 cd/m² (Typ.)

Contrast Ratio:     1000 : 1 (Typ.) (TM)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Response:     5 (Typ.)(G to G) ms

Good View at:     Symmetry

Work Mode:     AAS, Normally Black, Transmissive

Color Depth:     1.07B   92% DCI-P3

Backlight:     8 strings WLED , 30K hours , No Driver

Mas:     s2.58/2.87/3.01Kgs (Min./Typ./Max.)

Used for:     Desktop Monitor Gaming

Refresh Rate:     165Hz

Touchscreen:     Without

Signal Type:     V-by-One 8 lane , 51 pins Connector

Voltage Supply:     12.0V (Typ.)

Max. Ratings:     Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
