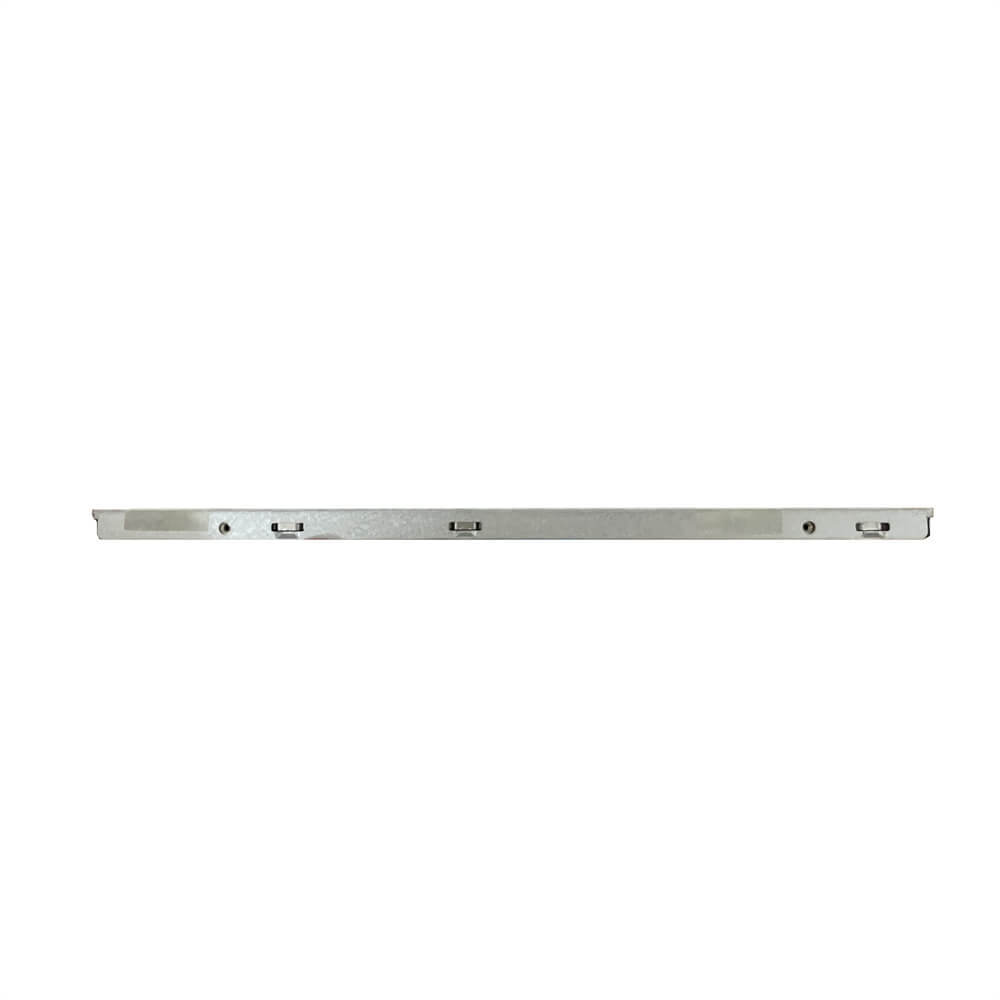

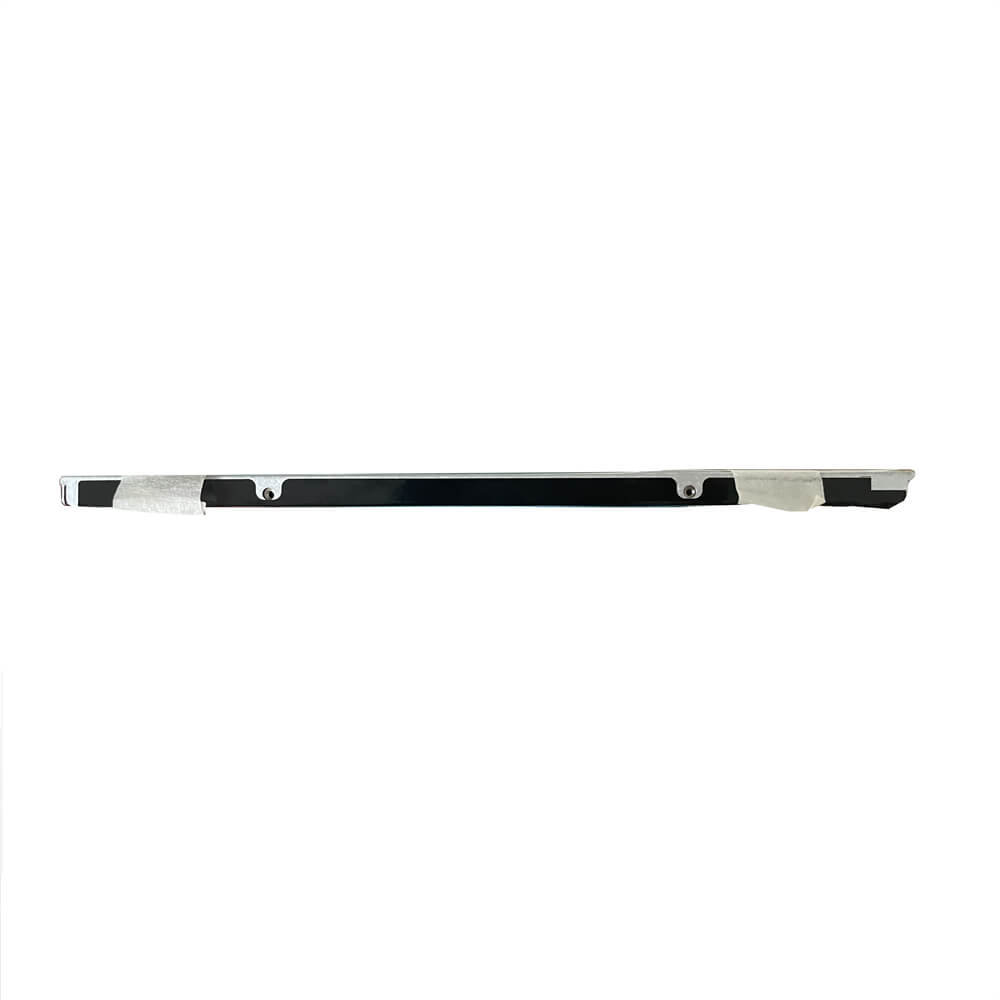

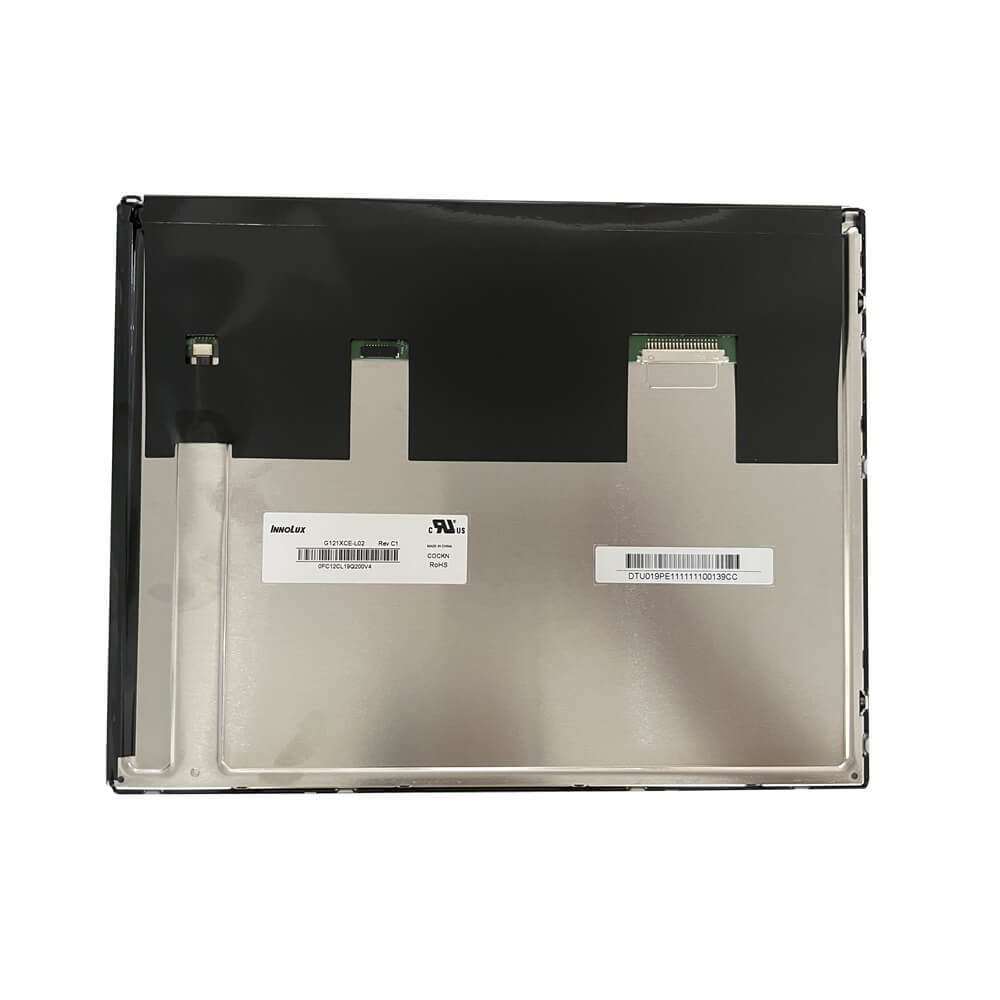

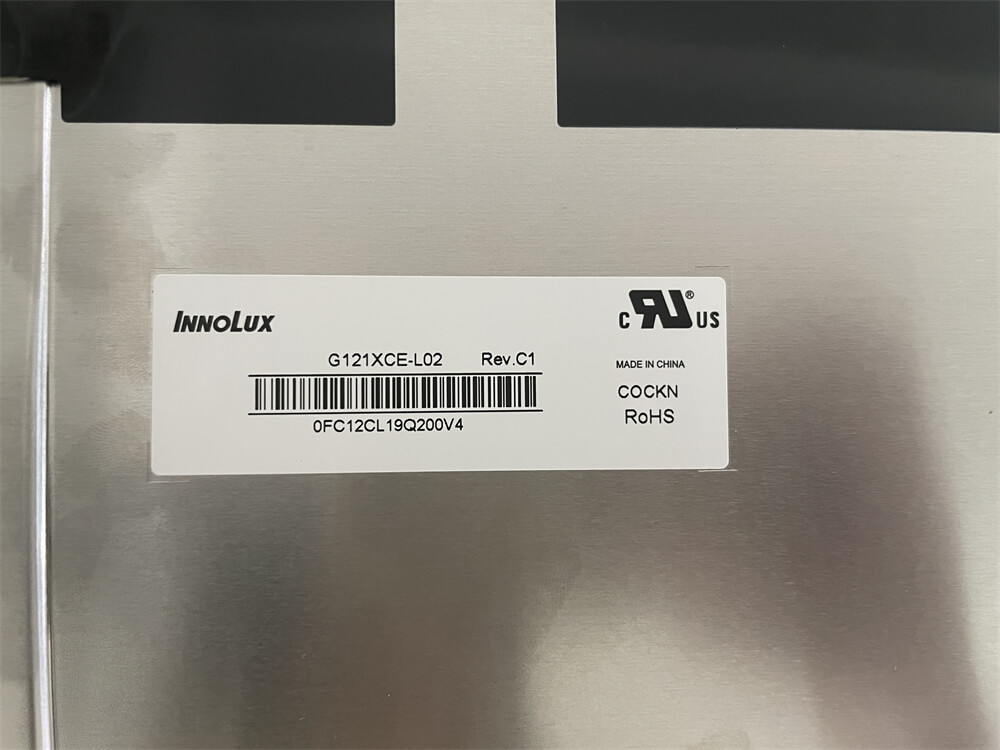

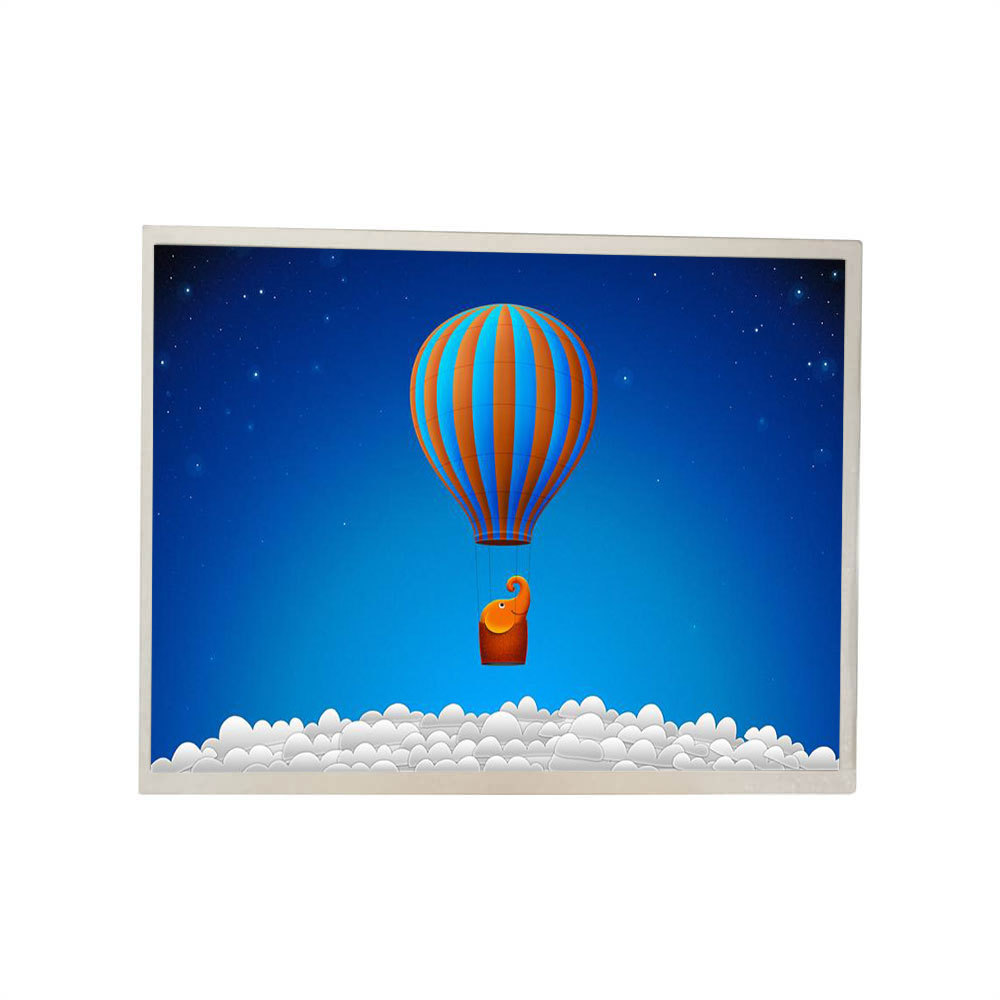

G121XCE-L02 innolux 12.1 inch screen TFT-LCD display module

Innolux G121XCE-L02 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -40 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).

It's general features are summarized in the following: Wide Temperature, WLED Backlight, With LED Driver, Upside I/F, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, we recommend that this model be applied to Industrial etc.

If you want to embed G121XCE-L02 LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail.

 General Specification

Brand: Innolux

Model: G121XCE-L02

Diagonal Size: 12.1 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1024(RGB)×768  [XGA]  105PPI

Configuration: RGB Vertical Stripe

Active Area: 245.76(H)×184.32(V) mm

Outline Dim.: 260.5(H)×204(V) ×8.9(D) mm

Bezel Area: 249.0(H)×187.5(V) mm

Treatment: Antiglare, Hard coating (3H)

Luminance: 500 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 13/12 (Typ.)(Tr/Td)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AAS, Normally Black, Transmissive

Support Color: 262K/16.7M   72% NTSC

Light Source: WLED , 30K hours , With LED Driver

Weight: 490/510g (Typ./Max.)

Designed For: Industrial

Frame Rate: 60Hz

Touch Panel: Without

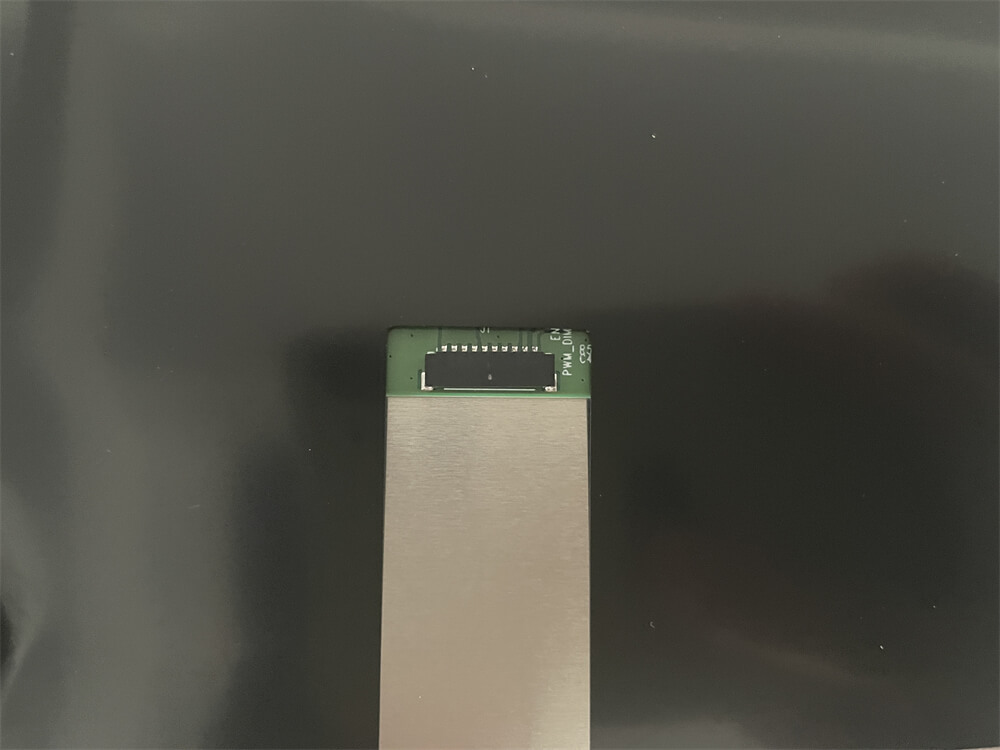

Interface Type: LVDS (1 ch, 6/8-bit) , 20 pins Connector

Power Supply: 3.3V (Typ.)

Environment: Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
