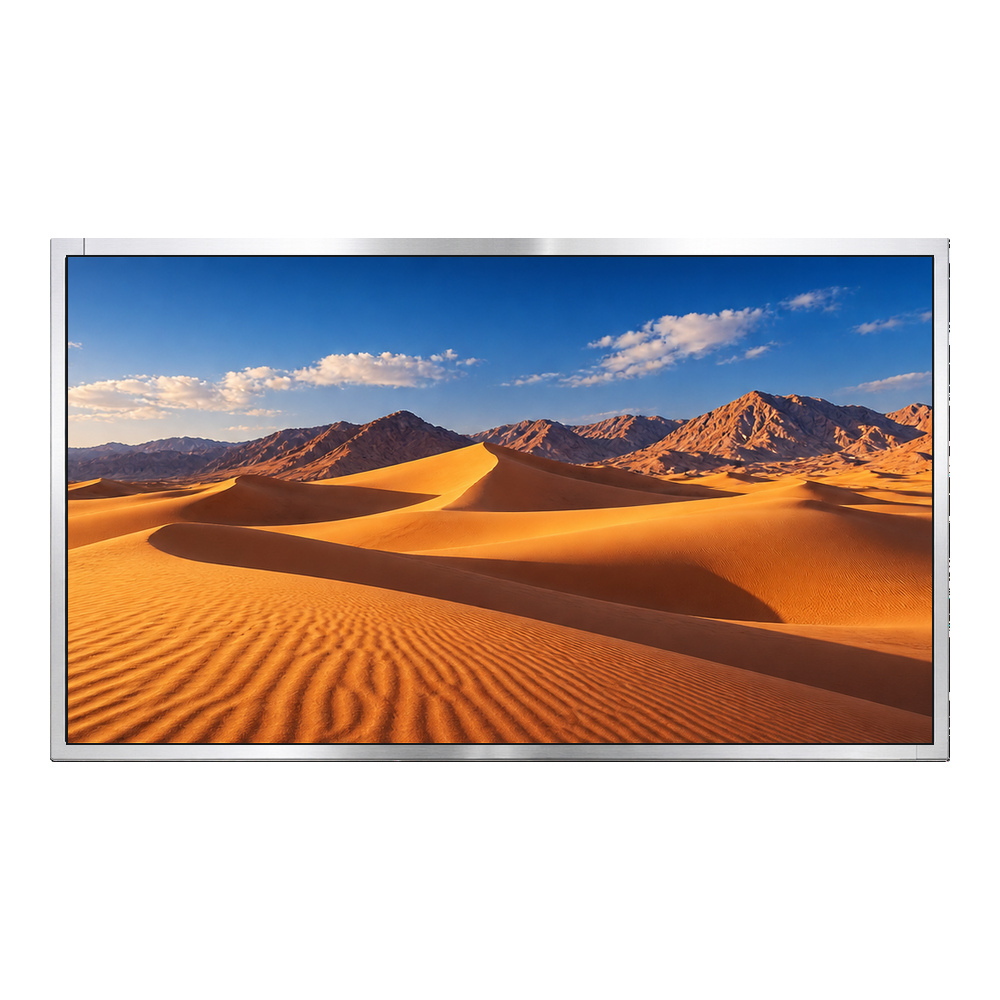

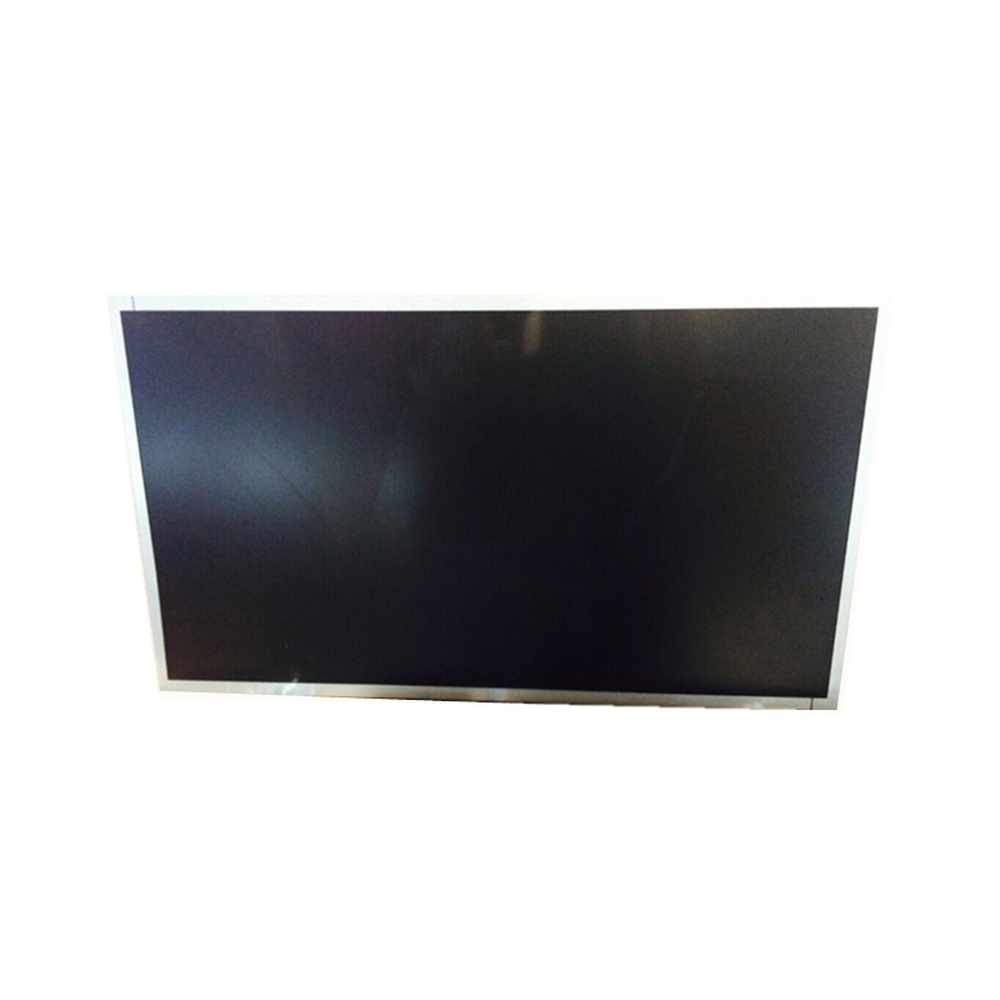

The Innolux M195FGE-L20 is a 19.5-inch TN LCD module with 1600 × 900 HD+ resolution and a 16:9 format. It is a candidate for desktop monitor replacement or assembly projects that need this native pixel format rather than 1920 × 1080 Full HD.
The reference lists 250 cd/m² typical brightness, 1000:1 typical contrast and a 5 ms typical Tr + Td response. The preferred viewing direction is 6 o'clock, which matters when evaluating screen tilt and installation height. The WLED backlight is included and requires an external driver.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M195FGE-L20 |
| Diagonal size | 19.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1600(RGB)×900, HD+, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 432×239.76 mm (H×V) |
| Outline dimensions | 452×263×11 mm (H×V×D) |
| Panel weight | 1.43/1.50 kg (Typ./Max.) |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 85°/85°/80°/80° (Typ.)(CR≥10) |
| Response time (ms) | 5 (Typ.)(Tr+Td) |
| Preferred viewing direction | 6 o'clock |
| Display mode | TN, Normally White, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor |
| Listed power consumption | 13.83 W (Max.) |

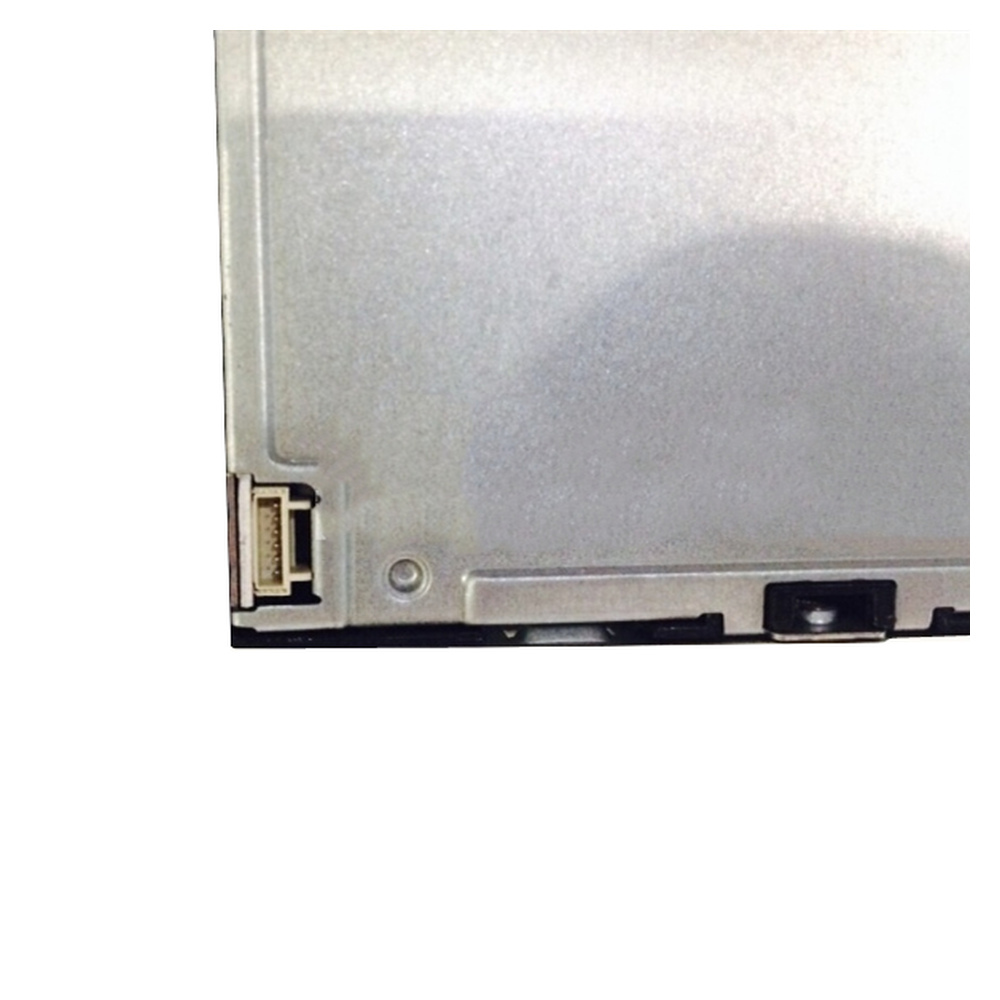

| Backlight and listed lifetime | 10S4P WLED, 40K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The listed application is desktop monitors. Confirm how the host system produces a 1600 × 900 signal and whether the selected controller can drive the native timing. For a fixed installation, inspect the image from the expected viewing positions rather than selecting a panel by diagonal size alone.

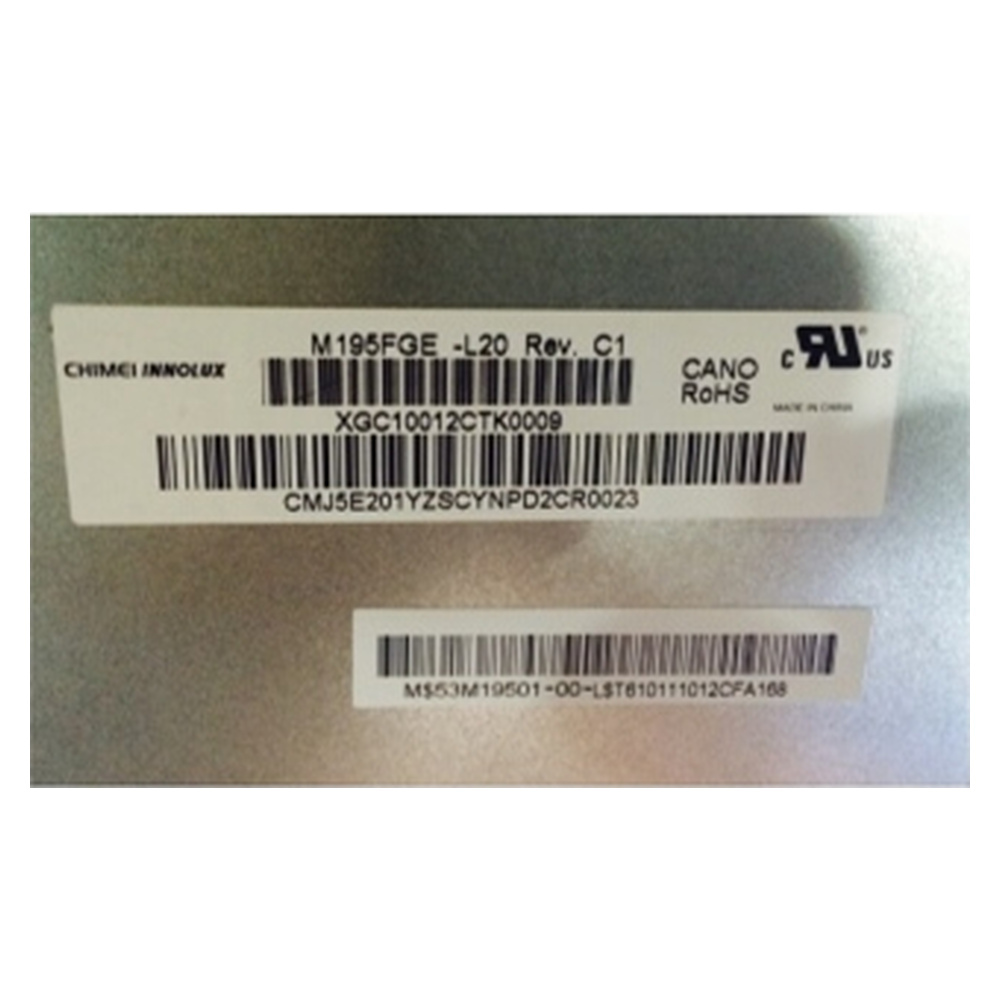

The collected outline is 452 × 263 × 11 mm. The LVDS interface and 5.0 V typical supply references are supplemented from a Rev.B1/B2 manufacturer datasheet. Review the actual panel-label revision before selecting the cable, controller and LED driver for an existing monitor assembly.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
The native resolution is 1600 × 900, commonly described as HD+. A 1920 × 1080 source requires appropriate handling by the controller and does not change the native pixel count of the panel.
The reference lists a 6 o'clock preferred direction for this TN panel. Evaluate screen tilt and the expected observer position with a sample so the final installation meets its viewing requirements.
The collected interface and 5.0 V supply details are supplemented from the Rev.B1/B2 Ver1.0 manufacturer datasheet. Confirm those details for the revision printed on the panel to be supplied.
Interface and voltage references use the Rev.B1/B2 Ver1.0 datasheet. Confirm the supplied revision and active-area drawing before fixing the enclosure design.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
