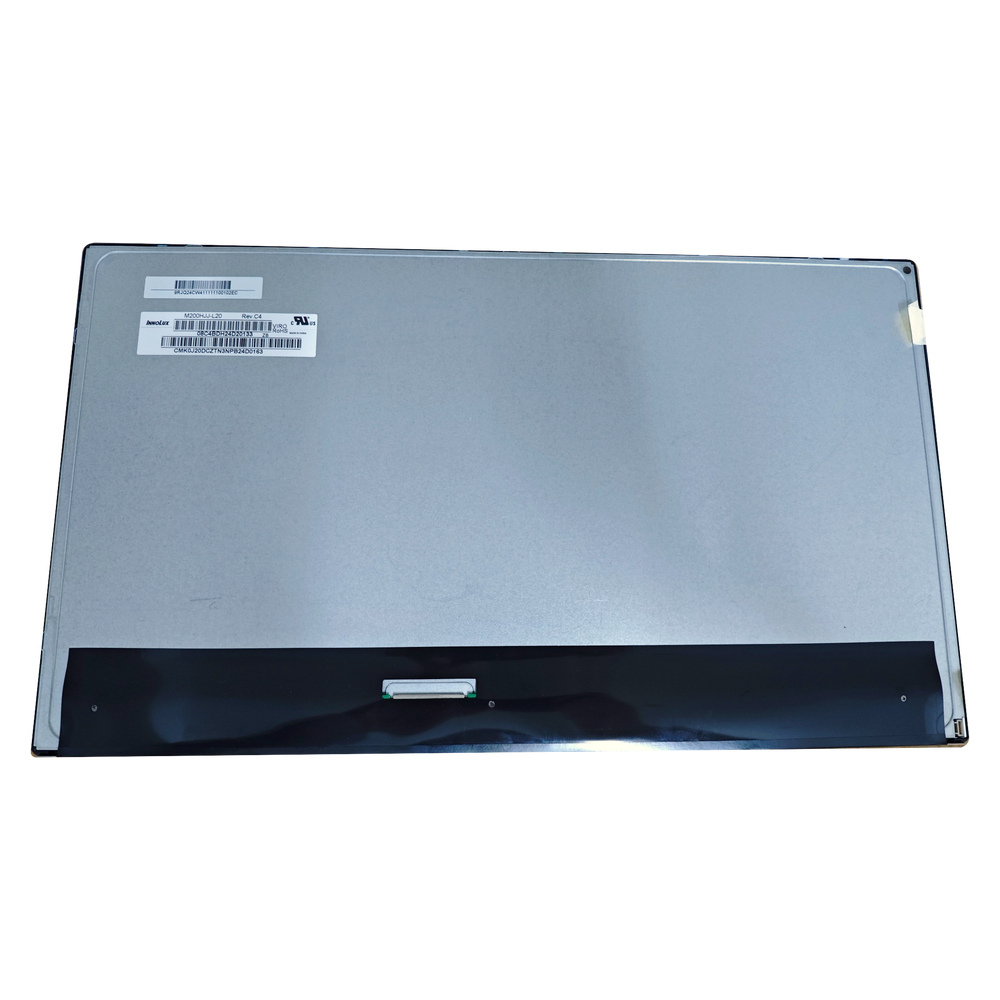

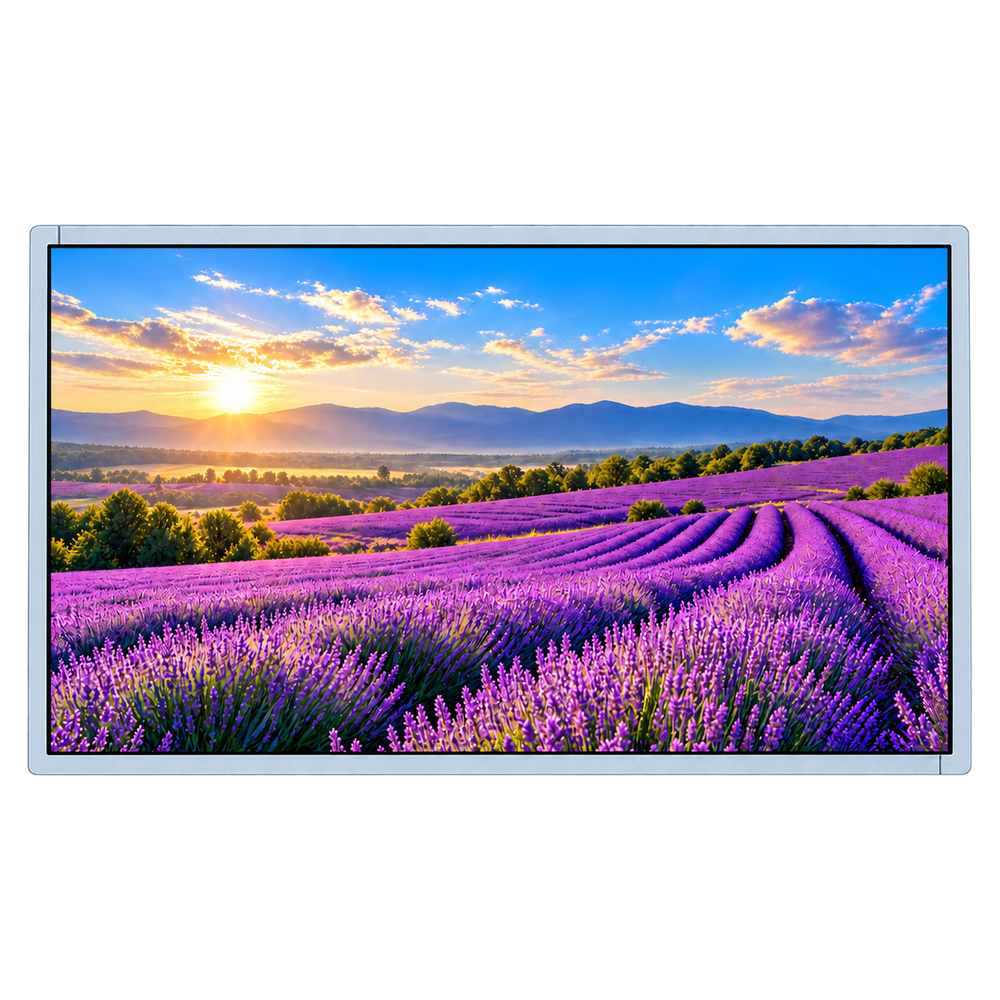

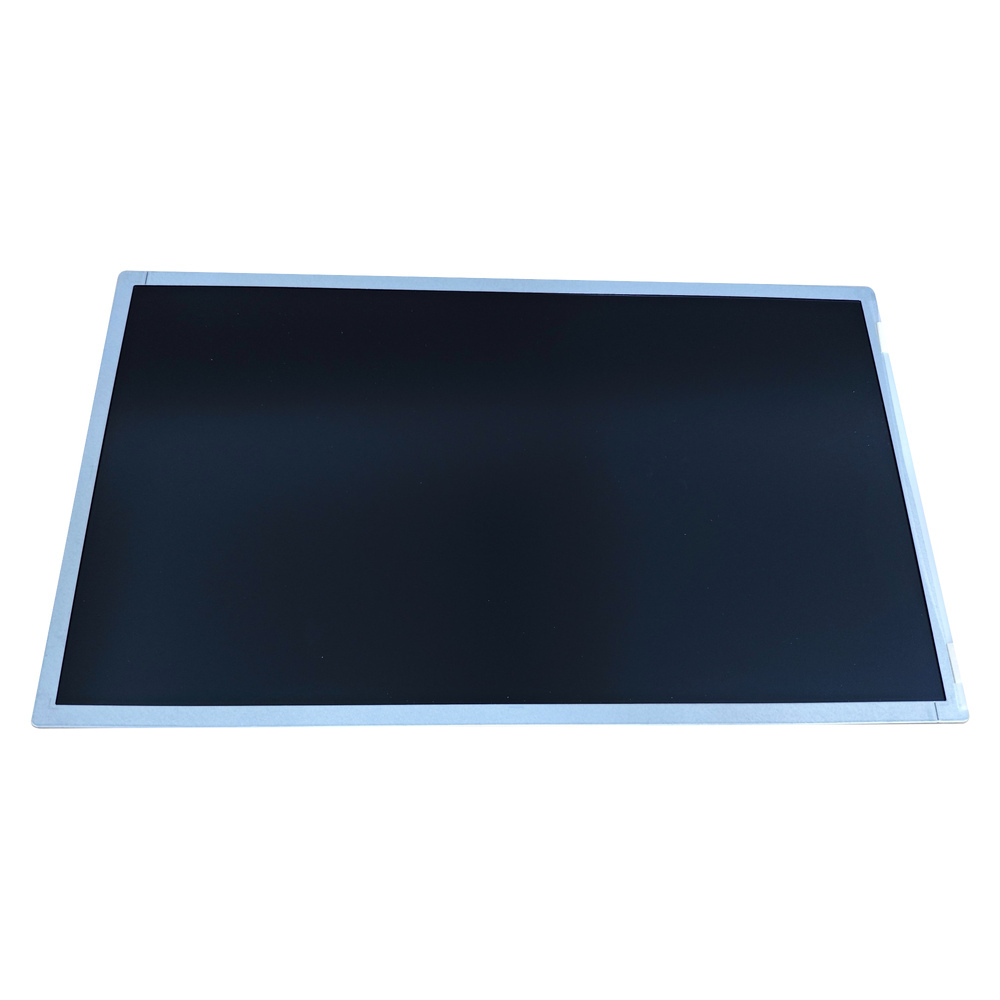

The Innolux M200HJJ-L20 Rev.C4 is a 19.5-inch Full HD MVA LCD module with 1920 × 1080 resolution. The collected Rev.C4 specification lists a 3000:1 typical contrast ratio, 250 cd/m² typical luminance and symmetric viewing characteristics for desktop monitor and industrial equipment evaluation.
A 30-pin, dual-channel 8-bit LVDS interface is paired with a 5.0 V typical panel supply. The white LED backlight is supplied without an integrated driver. Keeping Rev.C4 in the specification is essential because other revisions in the same model family carry different optical references.
| Parameter | Value |
|---|---|
| Manufacturer | Innolux |
| Model number | M200HJJ-L20 Rev.C4 |
| Diagonal size | 19.5 inch |
| Panel construction | a-Si TFT-LCD, LCM |
| Resolution and aspect ratio | 1920(RGB)×1080, FHD, 16:9 |
| Pixel arrangement | RGB Vertical Stripe |
| Active area | 434.88×238.68 mm (H×V) |
| Outline dimensions | 459.8×263×11.82 mm (H×V×D) |
| Panel weight | 1.47±0.08 kg |
| Surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast ratio | 3000:1 (Typ.) (TM) |
| Viewing angles (L/R/U/D) | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Response time (ms) | 15/5 (Typ.)(Tr/Td), 25 (Typ.)(G to G) |
| Preferred viewing direction | Symmetry |
| Display mode | MVA, Normally Black, Transmissive |
| Display colors and gamut | 16.7M, 72% NTSC |
| Reference applications | Desktop Monitor, Industrial |
| Listed power consumption | 14.7 W (Max.) |
| Backlight and listed lifetime | 4 strings WLED, 30K hrs, Without Driver |
| Listed refresh rate | 75 Hz |
| Touchscreen configuration | Without |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins 1.0 mm Connector |
| Typical panel supply | 5.0V (Typ.) |
| Operating and storage temperatures | Storage Temp. -20 ~ 60 °C; Operating Temp. 0 ~ 50 °C |
Typ. and Max. identify reference rating types. Listed refresh rates require compatible source timing and controller configuration. Confirm the applicable panel specification and test conditions for final integration.
The reference application categories are desktop monitors and industrial systems. This model can be evaluated when a project needs Full HD resolution within a 19.5-inch panel format. Compare the actual active-area and mounting drawings with the existing screen opening before accepting a replacement proposal.
The listed outline is 459.8 × 263 × 11.82 mm. Check the LVDS connector, backlight connection and power sequencing for Rev.C4. The collected reference gives 14.7 W maximum power consumption. Establish the assembly power and thermal design with the selected driver and controller configuration.
XIANHENG supports LCD sourcing and custom display projects. Share your requirements so the quotation can cover the panel and the assembly work your project needs.
Browse our industrial LCD screen collection or review PCAP and resistive touch selection when planning the display assembly.
This page uses the Rev.C4 reference at 3000:1 typical. Other revisions are listed with different contrast figures. Specify the required revision and confirm its applicable optical data before ordering.

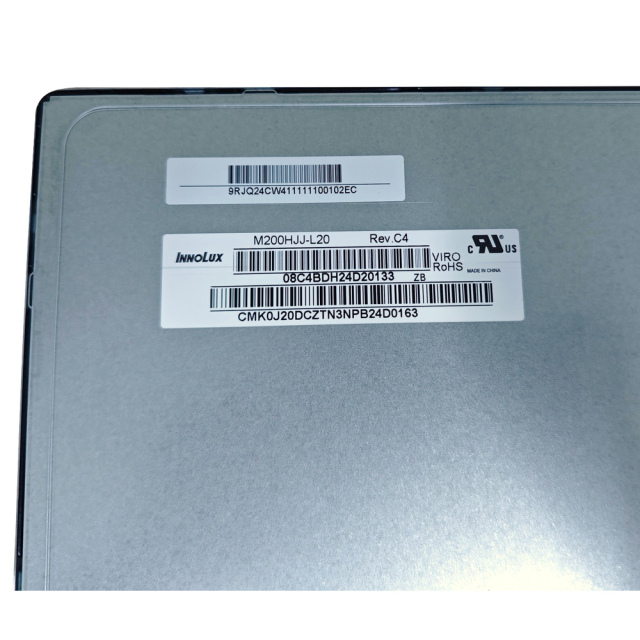

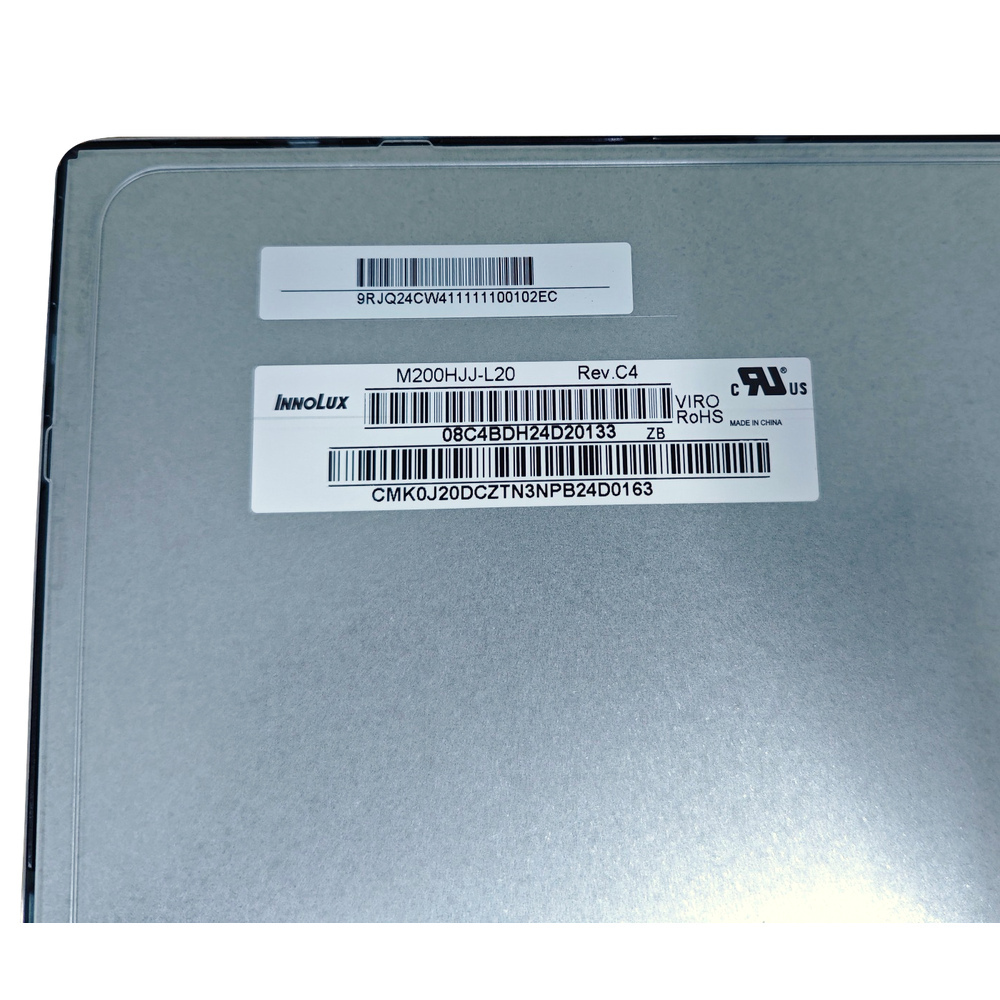

It should be included when the design depends on the specifications shown here. Send the full panel-label photo or approved bill of materials so a proposed supply revision can be checked against the project.
The collected summary uses 72% NTSC, while another section of the reference lists 74%. This page treats the collected value as a reference; confirm the agreed measurement and revision for a color-sensitive project.
Specification scope: Rev.C4, Ver3.6 dated 10 December 2020. Contrast and color-gamut references can differ across revisions; confirm the agreed specification for the supplied panel.
Send the full model and revision, required quantity, application, controller interface and touch or cover-glass requirements. Availability, pricing, delivery time and the proposed configuration will be confirmed in the quotation.
